Driver or Passenger Belt Replacement

Driver or Passenger Belt Replacement

Removal Procedure

1. Remove the center pillar garnish molding. Refer to Center Pillar Garnish Molding Replacement (Service and Repair).

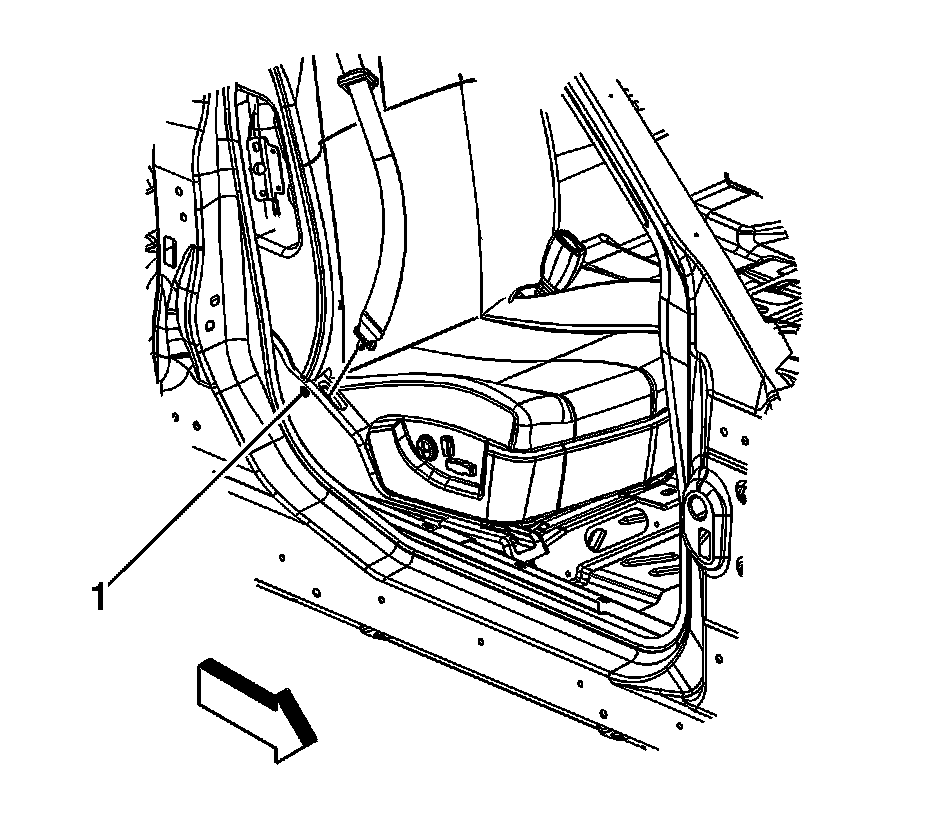

2. Insert a pointed tool into the hole (1) in order to release the seat belt from the seat.

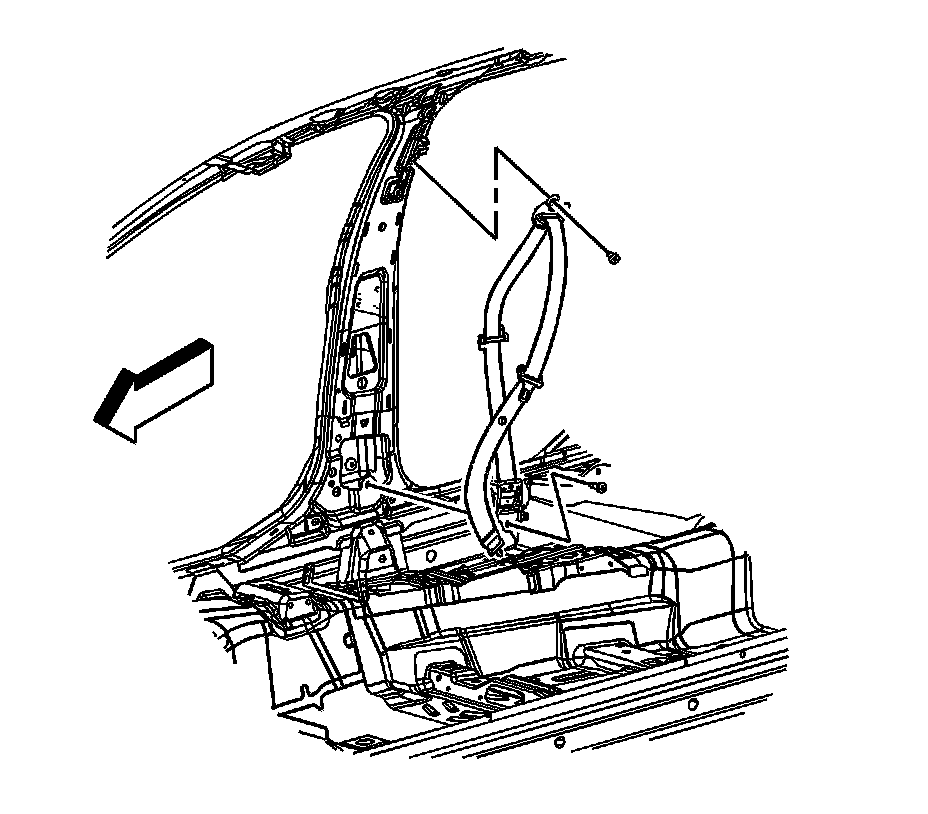

3. Remove the bolts securing the seat belt assembly to the vehicle.

Installation Procedure




1. Install the bolts securing the seat belt assembly to the vehicle.
2. Install the center pillar garnish molding. Refer to Center Pillar Garnish Molding Replacement (Service and Repair).




3. Reinstall the seat belt to the seat (1).
