Power Distribution Diagram 4

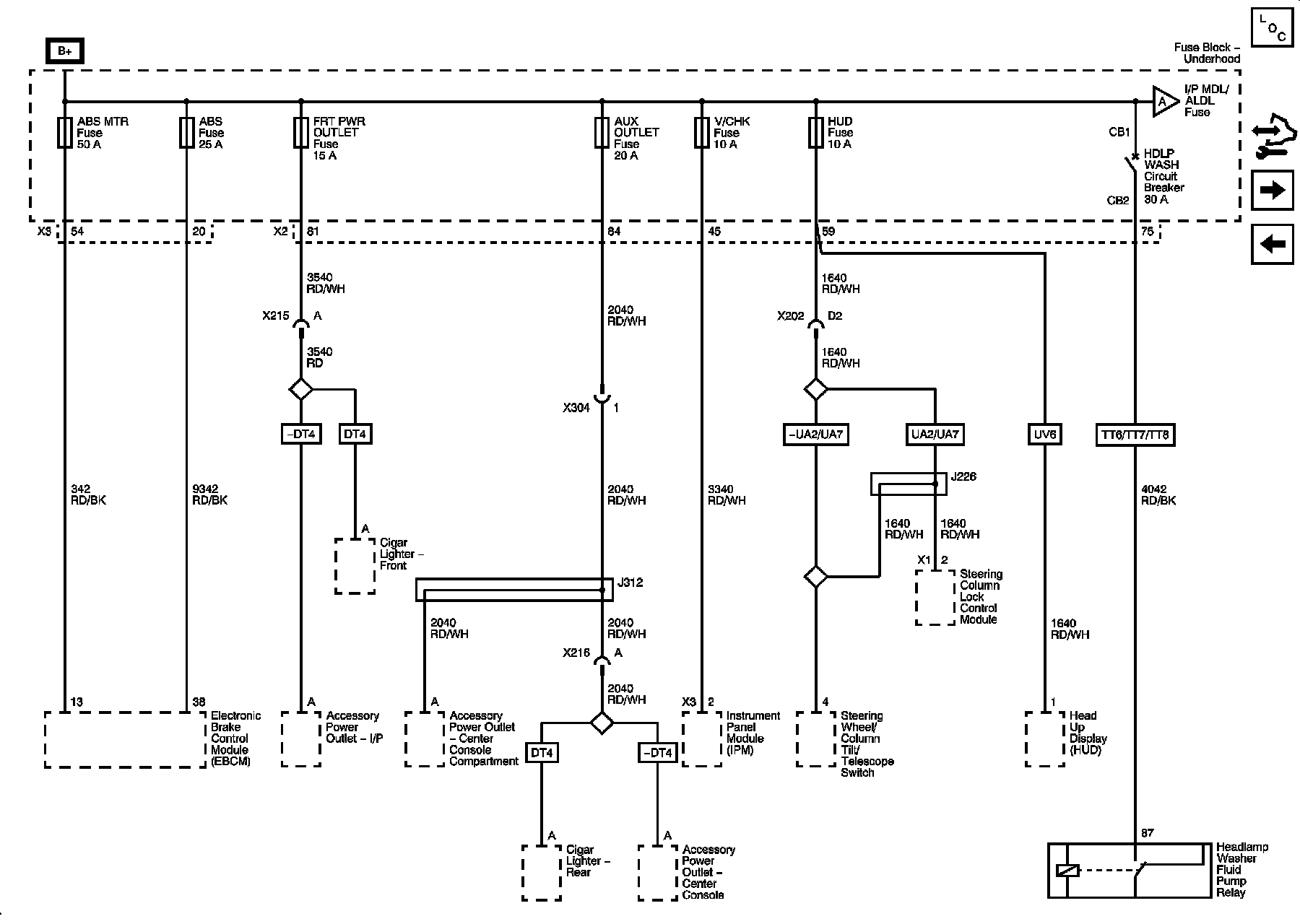

Power Distribution Schematics

ABS, ABS MTR, AUX OUTLET, FRT PWR OUTLET, HUD, and V/CHK Fuses, HDLP WASH Circuit Breaker
