X308

Harness Routing Views

Body Harness - Left Rear Cargo Compartment




1 - X308
2 - JX305
3 - X320
4 - X320
5 - Windshield Wiper Inhibit Relay (WCV)
6 - X302
7 - G402
8 - Rear Shelf

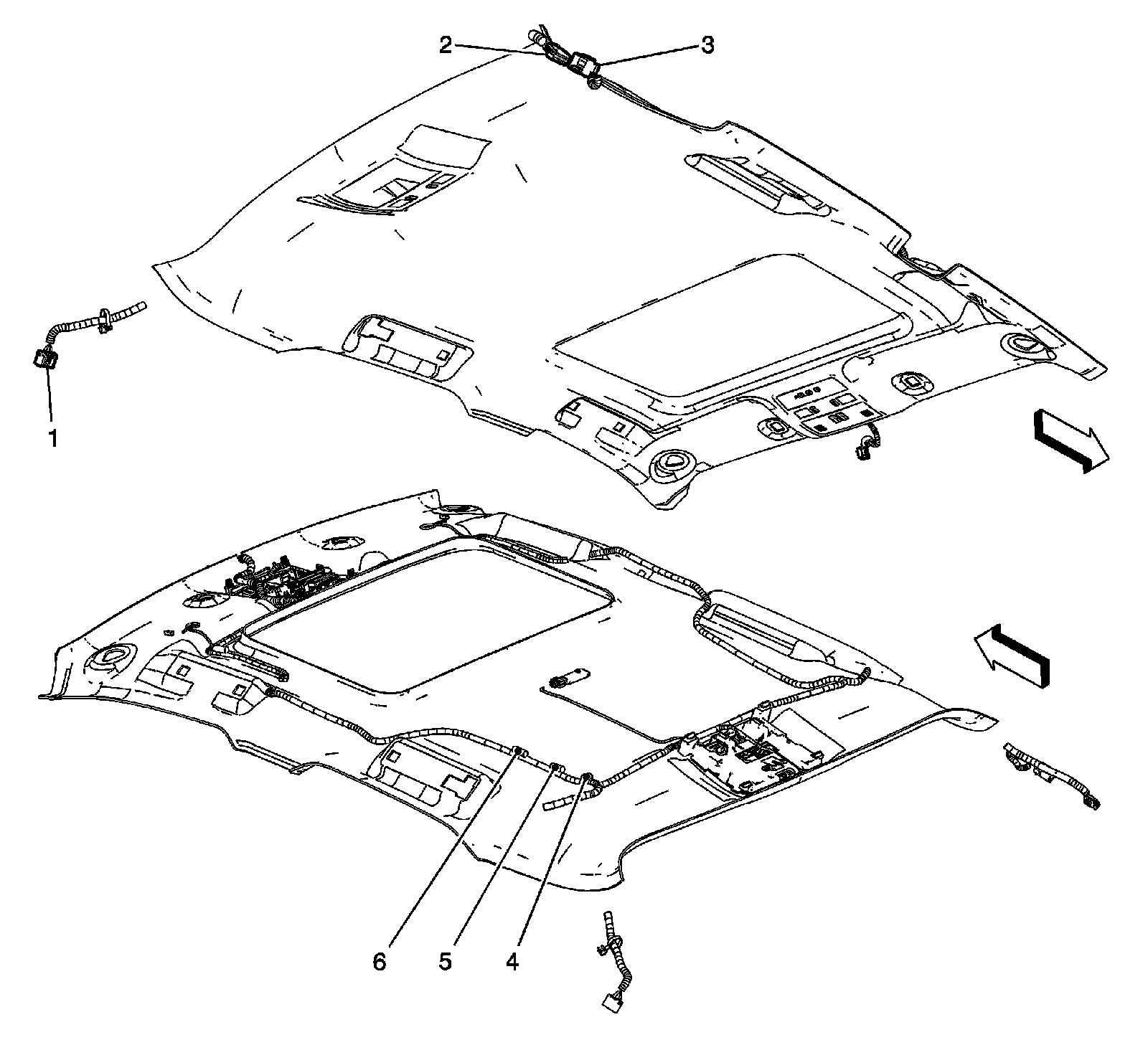

Headliner Harness (without CF5)




1 - X305
2 - J309
3 - J308
4 - J310
5 - X308

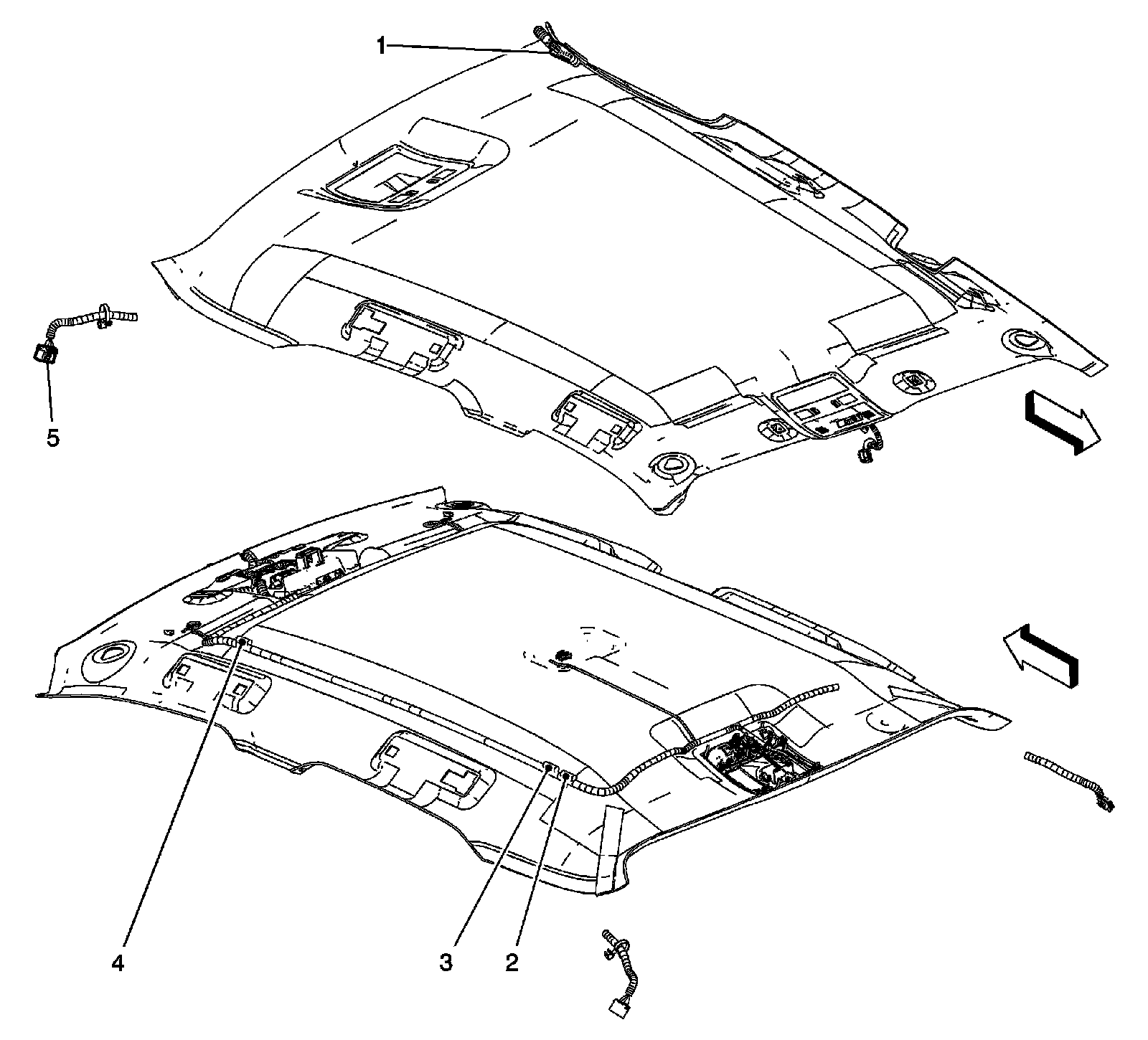

Headliner Harness (CF5)




1 - X308
2 - X305
3 - X309
4 - J308
5 - X309
6 - J310
