Turn Signal Lamp: Diagrams




Component Connector End Views

Repeater Lamp - Left Front

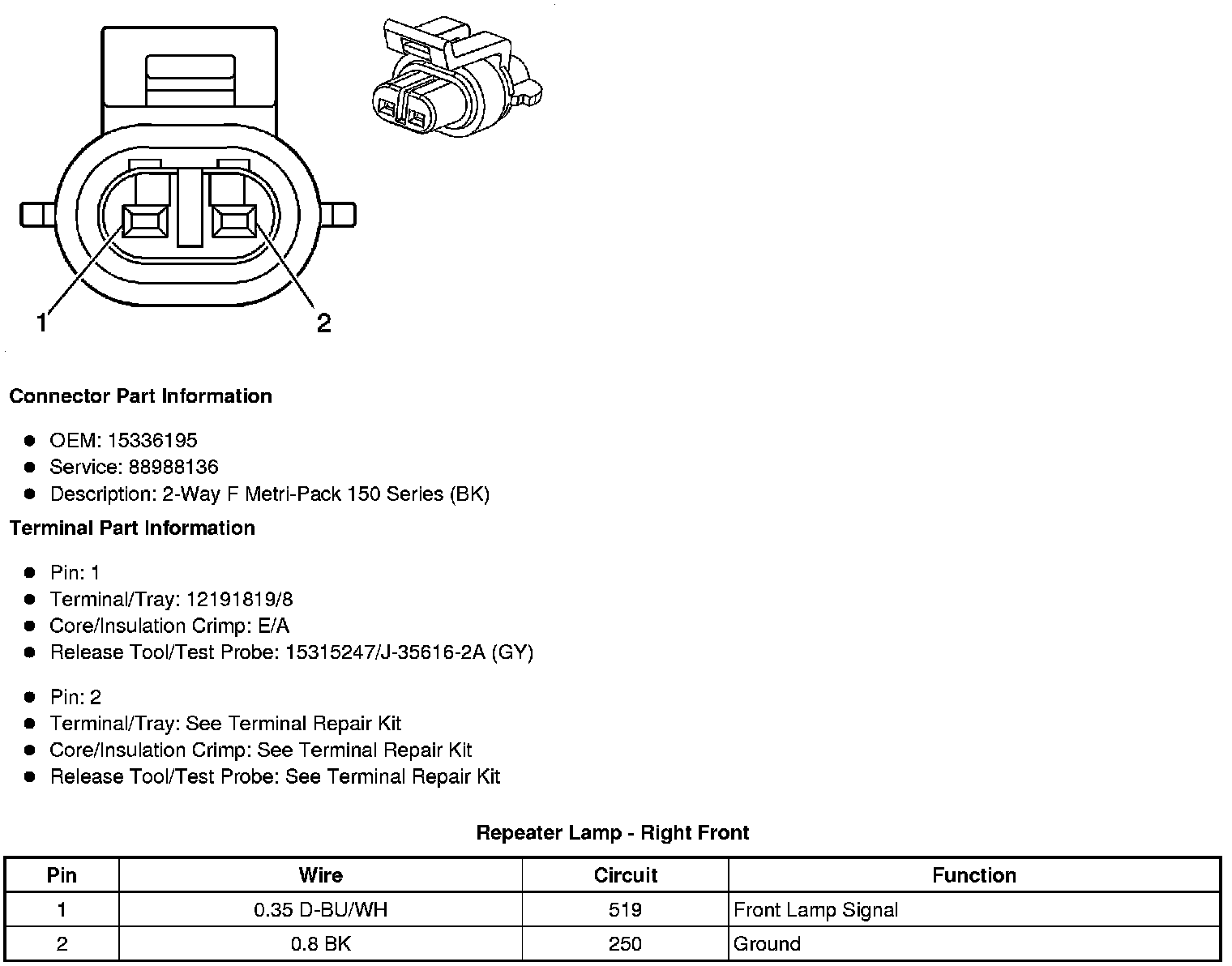

Repeater Lamp - Right Front

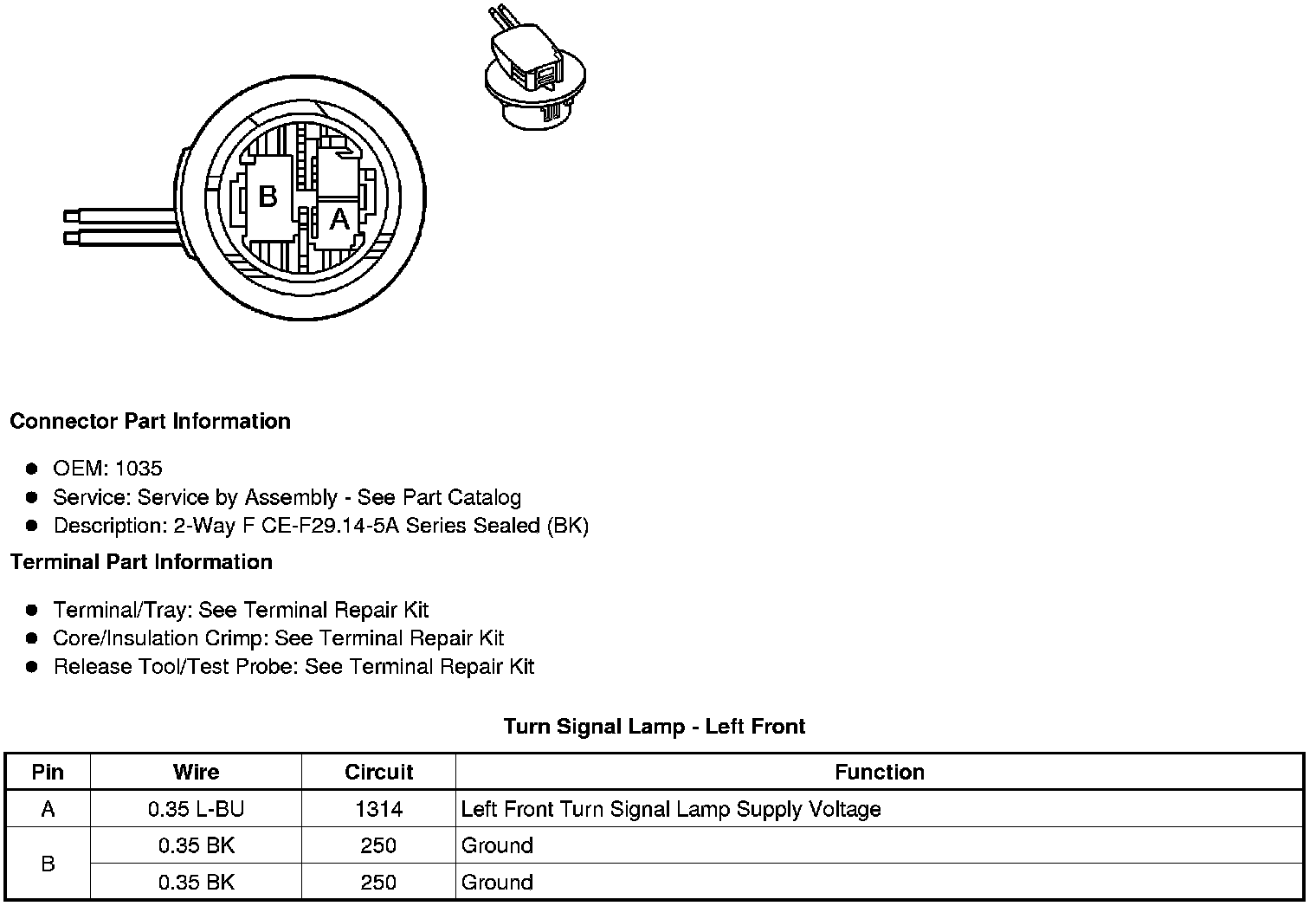

Turn Signal Lamp - Left Front

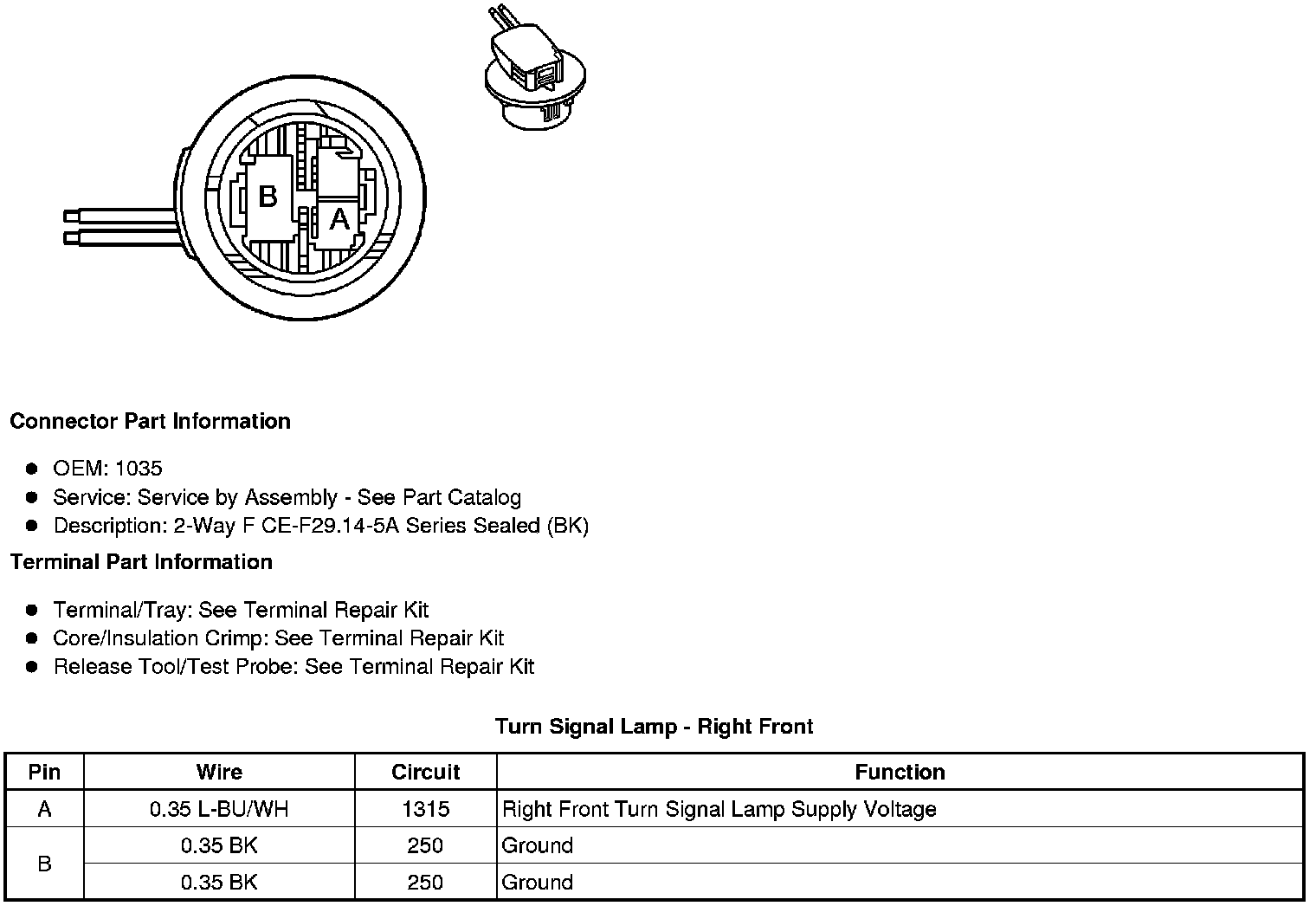

Turn Signal Lamp - Right Front
