Marker Lamp: Diagrams




Component Connector End Views

Marker Lamp - Left Front

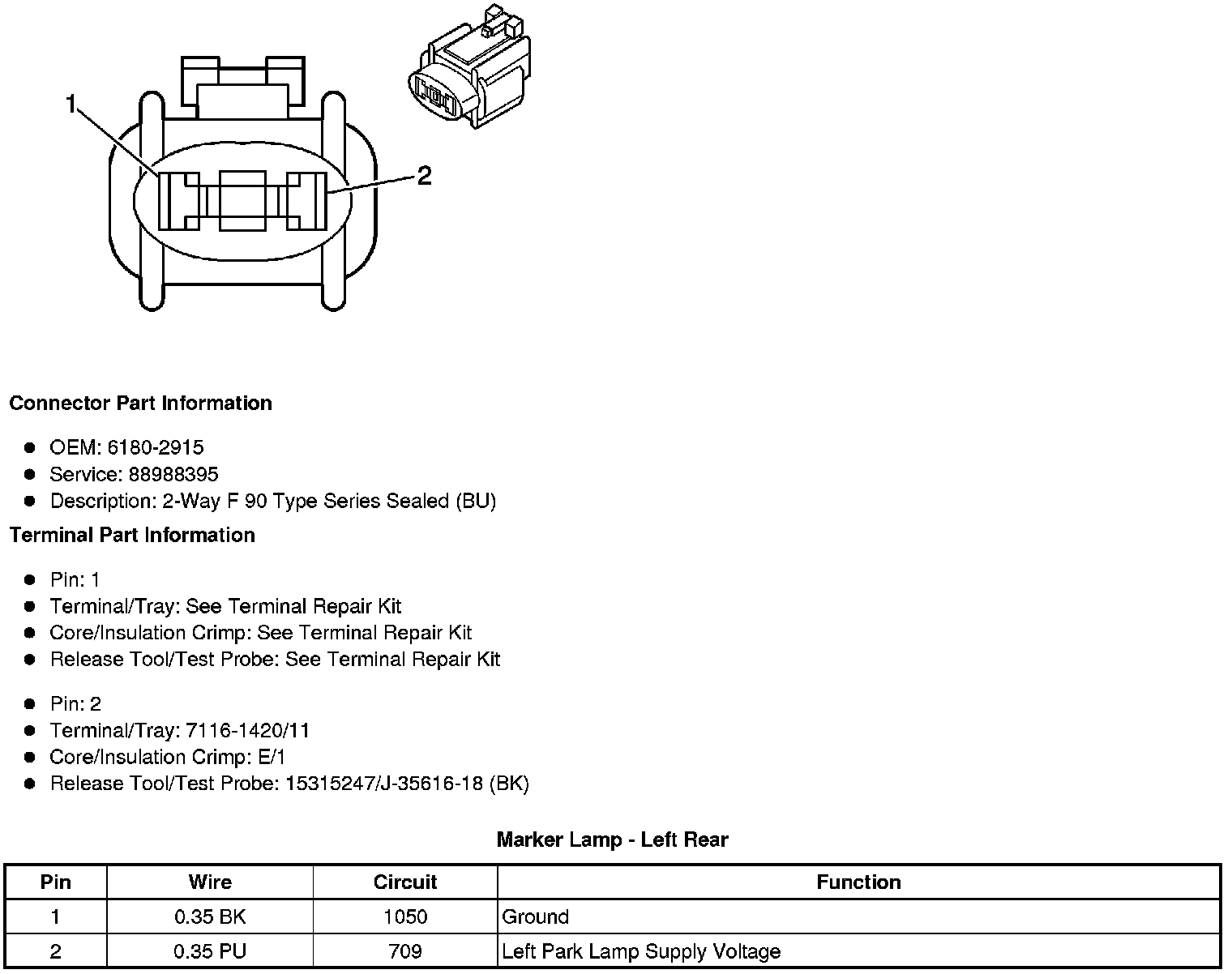

Marker Lamp - Left Rear






Marker Lamp - Right Front

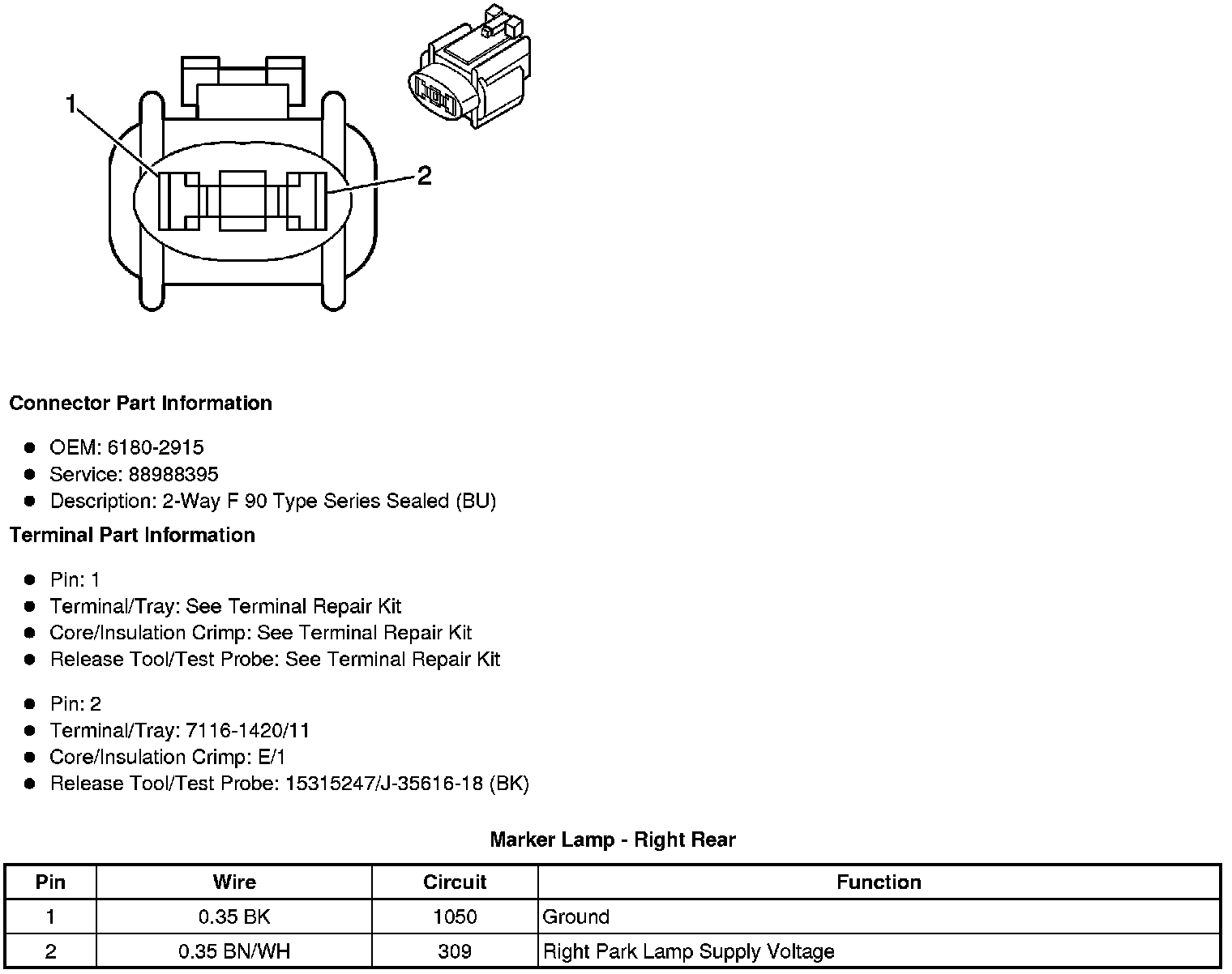

Marker Lamp - Right Rear
