Headlamp Alignment Actuator: Diagrams




Component Connector End Views

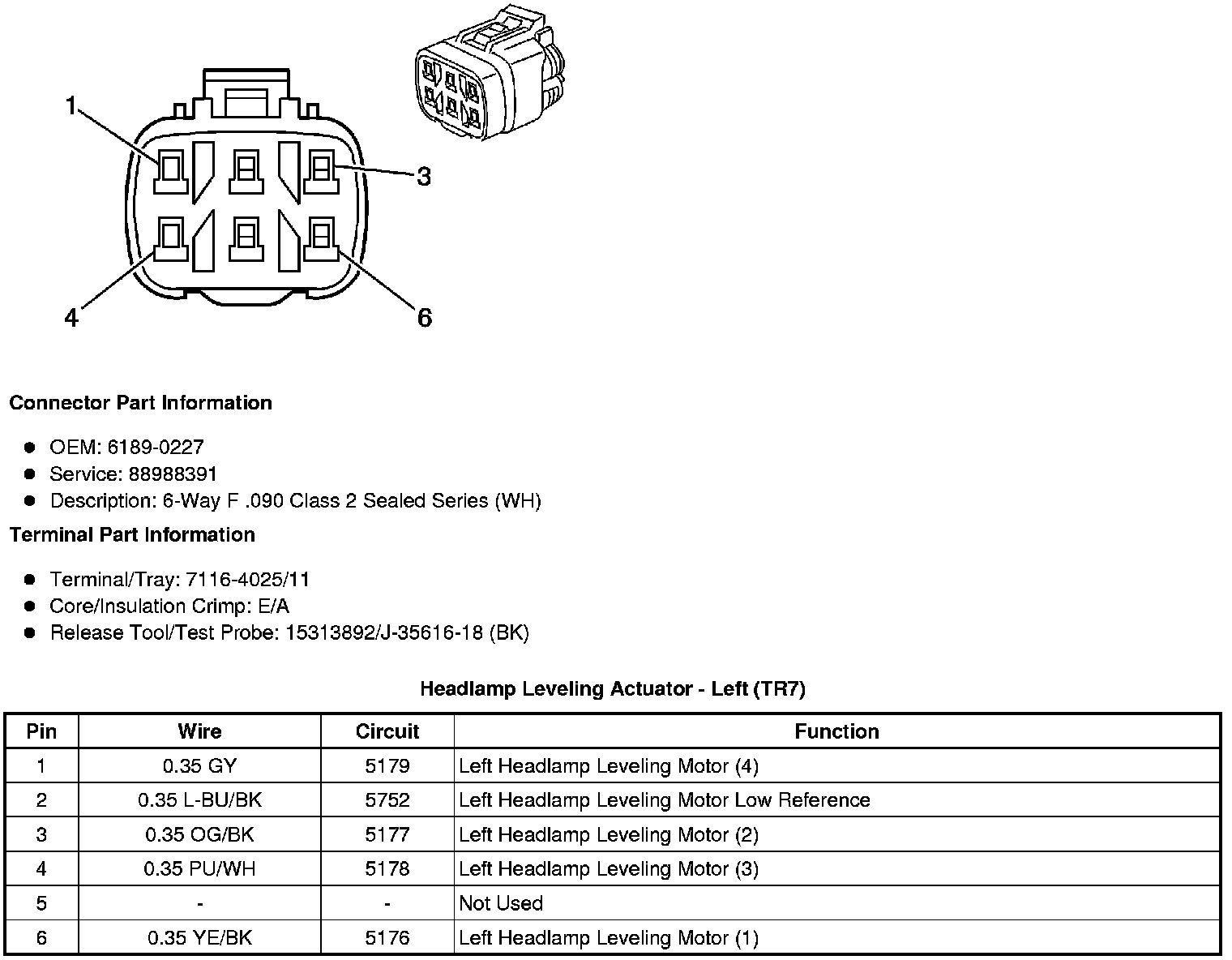

Headlamp Leveling Actuator - Left (TR7)

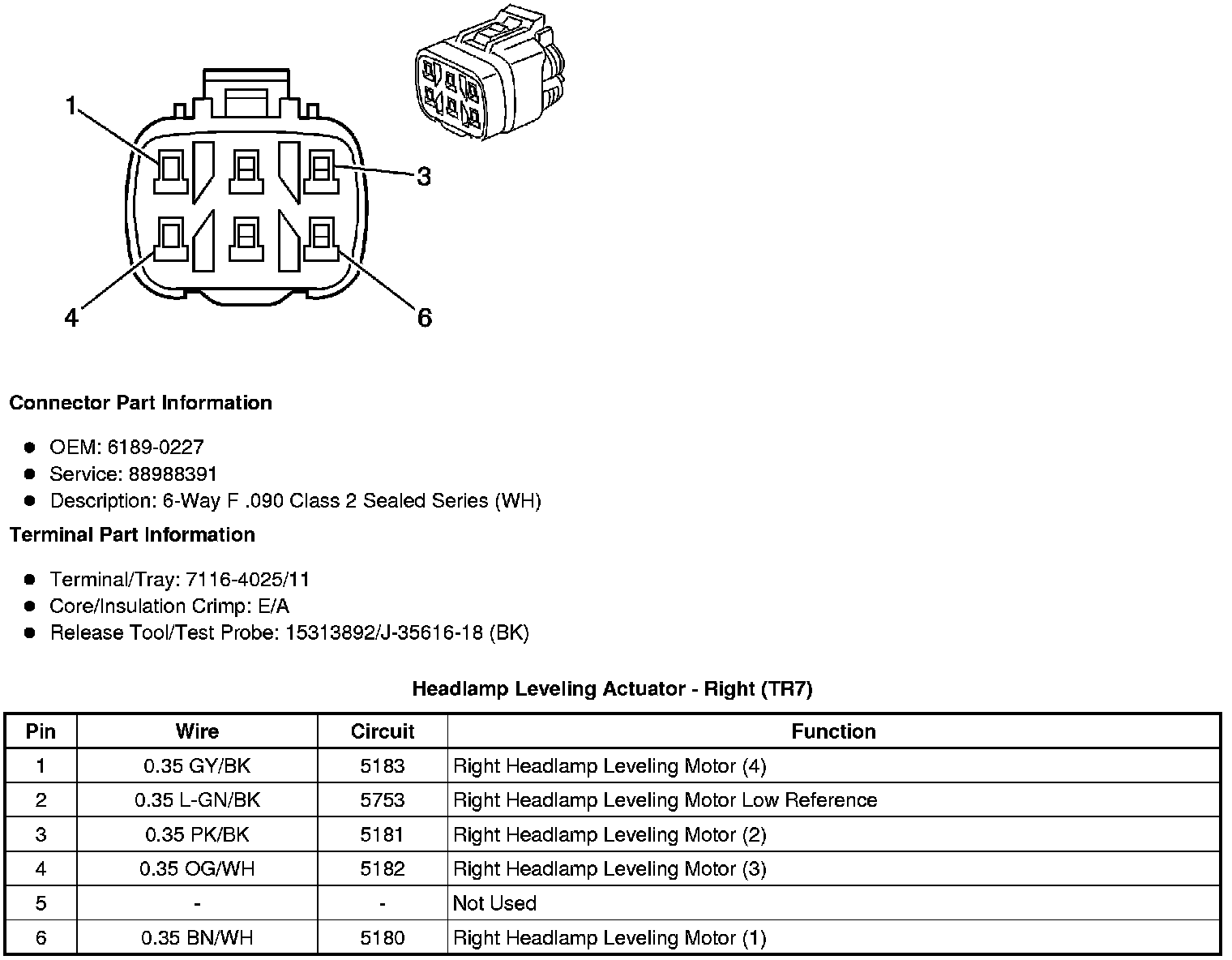

Headlamp Leveling Actuator - Right (TR7)
