Headlamp: Diagrams




Component Connector End Views

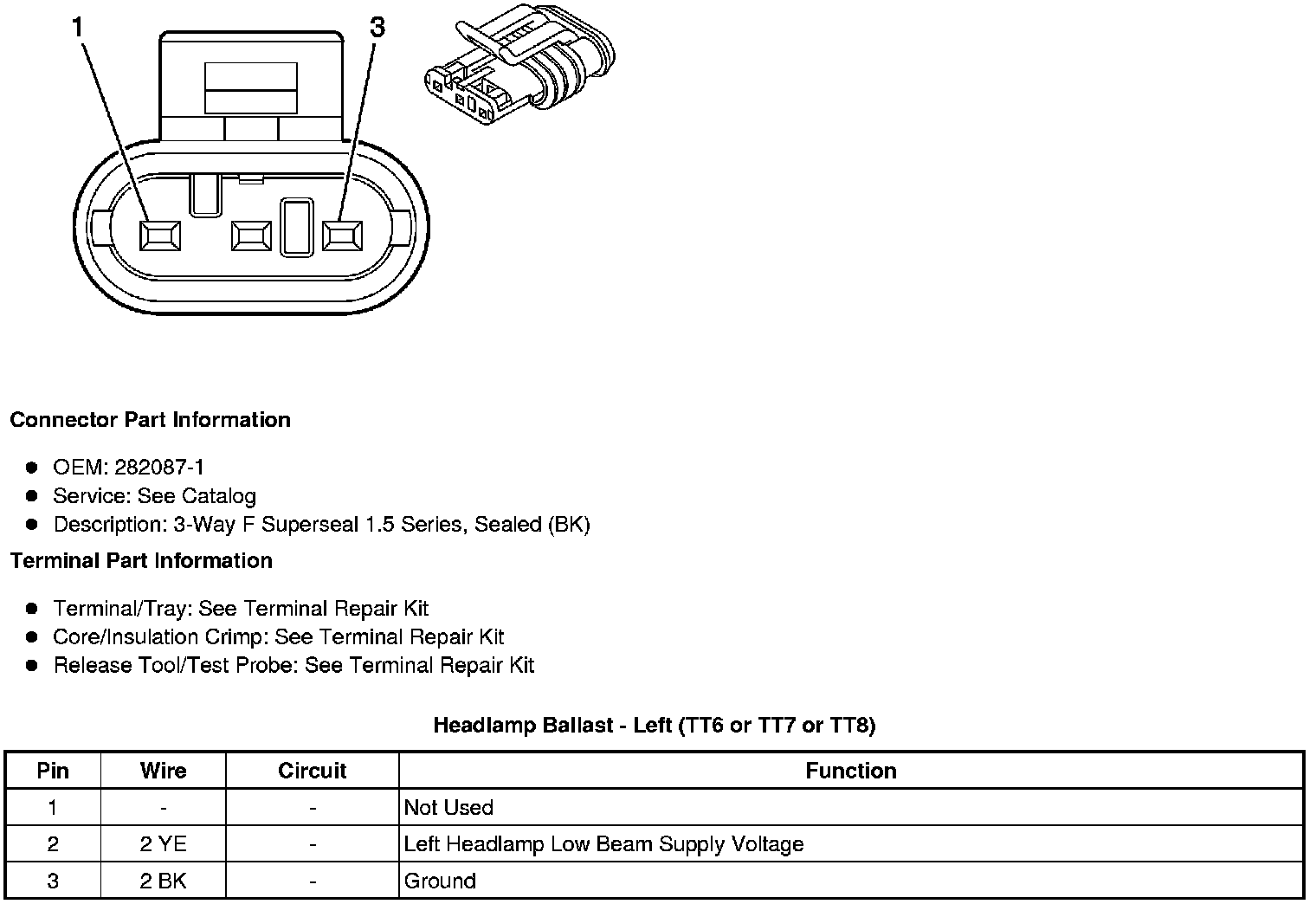

Headlamp Ballast - Left (TT6 or TT7 or TT8)






Headlamp Ballast - Right (TT6 or TT7 or TT8)






Headlamp - Left High Beam






Headlamp - Left Low Beam (without TT6 or TT7 or TT8)






Headlamp - Right High Beam






Headlamp - Right Low Beam (without TT6 or TT7 or TT8)
