Instrument Cluster / Carrier: Diagrams




Component Connector End Views

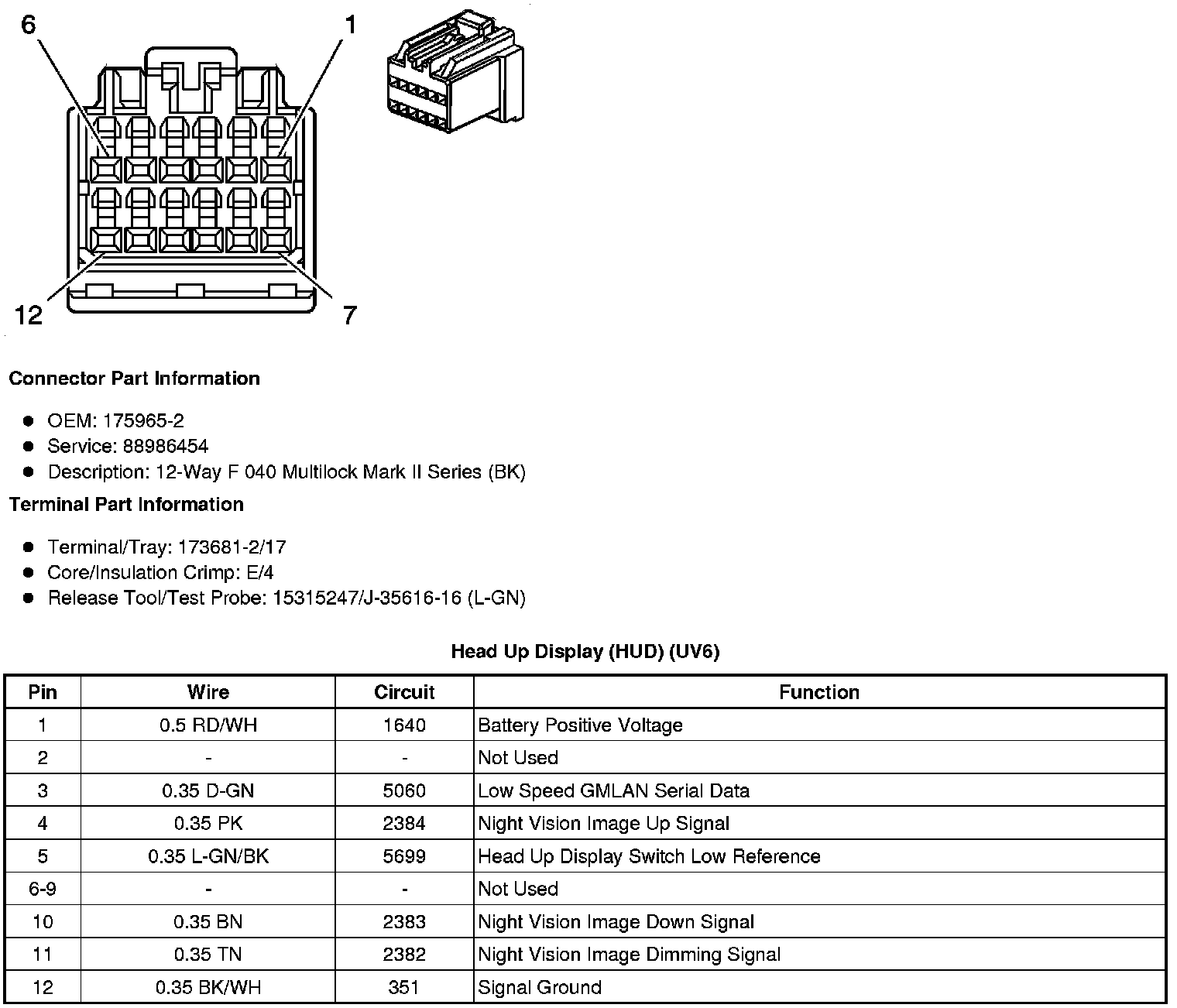

Head Up Display (HUD) (UV6)

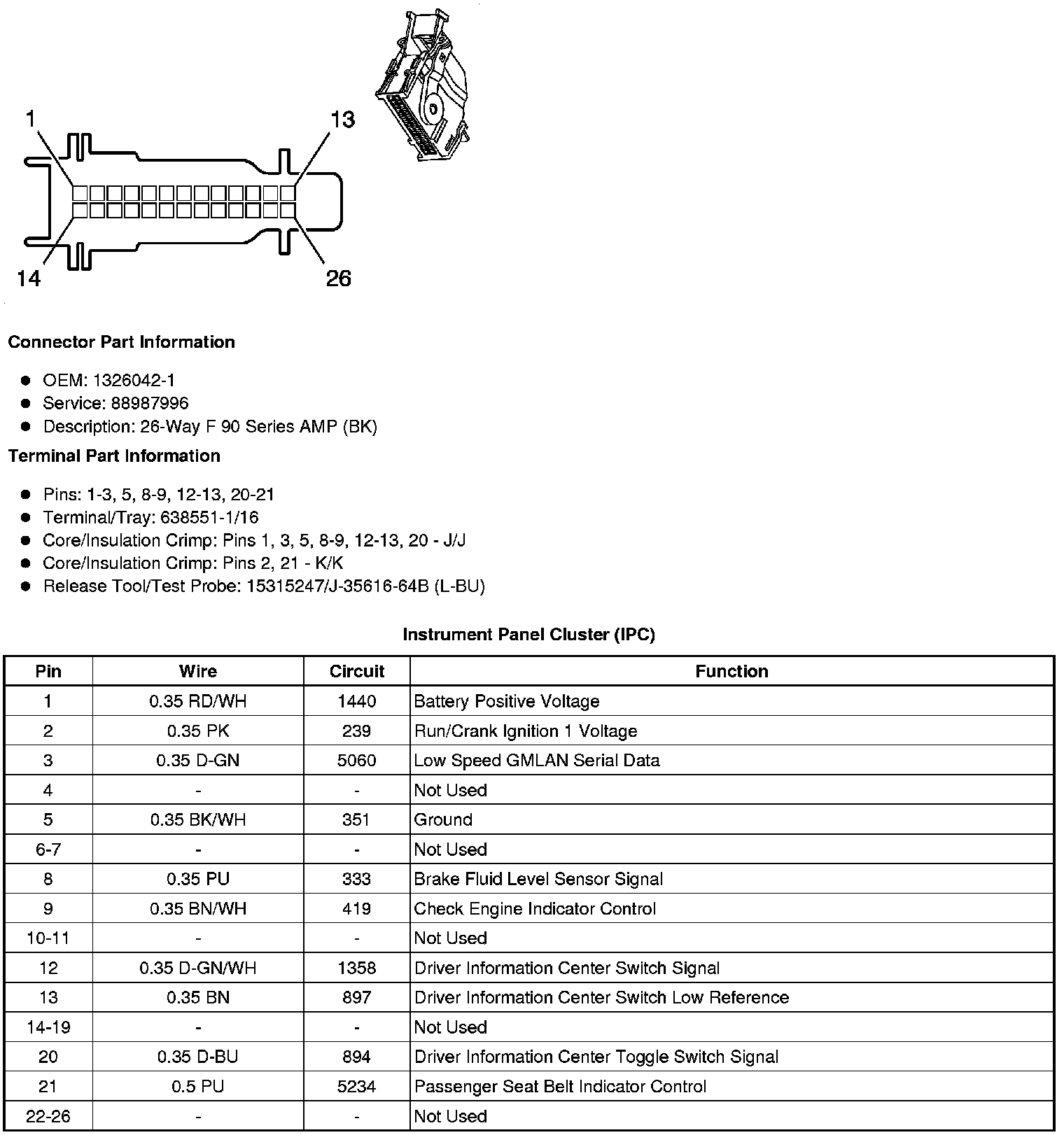

Instrument Panel Cluster (IPC)
