Secondary Camshaft Intermediate Drive Chain Tensioner Replacement - Left

SECONDARY CAMSHAFT INTERMEDIATE DRIVE CHAIN TENSIONER REPLACEMENT - LEFT

Removal Procedure
1. Remove the engine front cover. Service and Repair

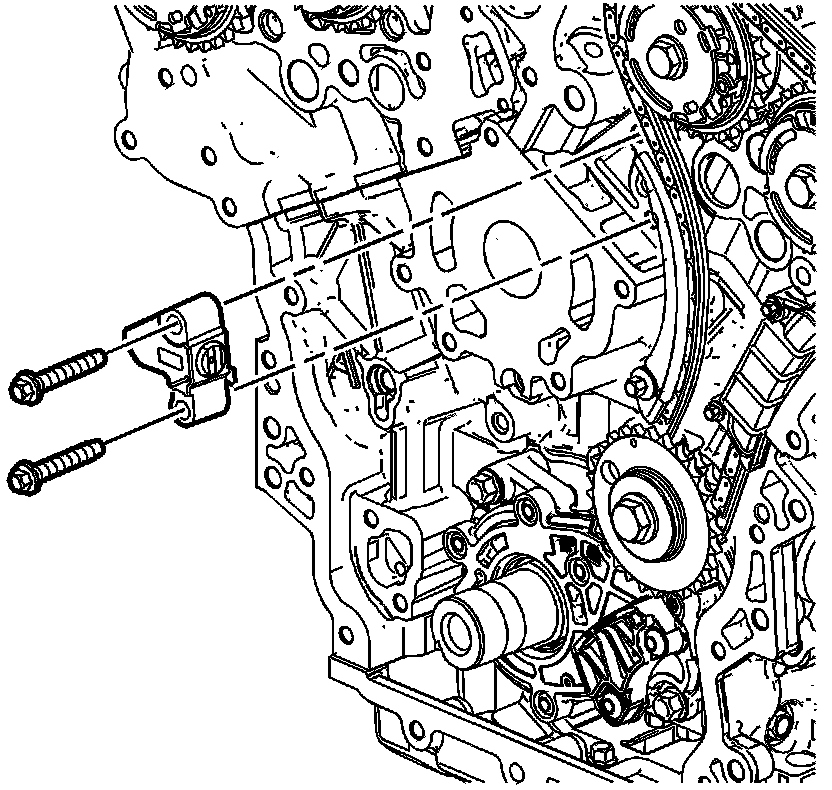

2. Remove the left bank secondary camshaft drive chain tensioner. 25. Secondary Timing Chain Tensioner Removal - Left Side

Installation Procedure






1. Install the left bank secondary camshaft drive chain tensioner. 116. Secondary Timing Chain Tensioner Installation - Left Side

2. Install the engine front cover. Service and Repair
