8. Water Outlet Removal

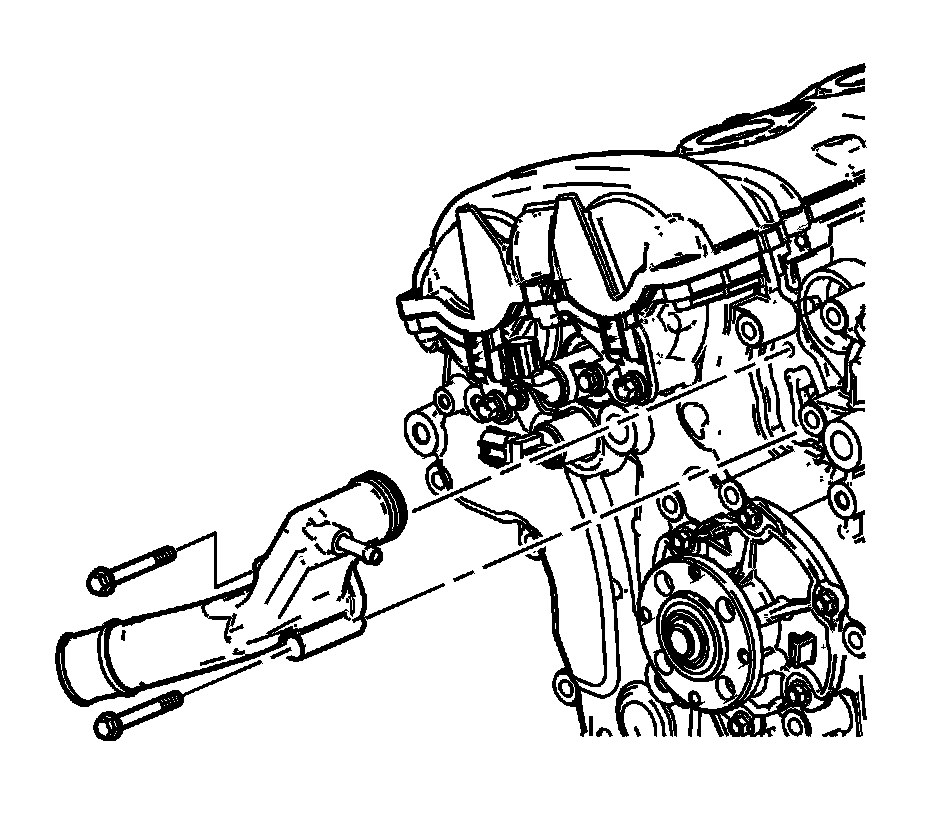

Water Outlet Removal




1. Remove the water outlet bolts.
2. Remove the water outlet.
3. Remove the water outlet gasket.
