139. Drive Belt Tensioner Installation - Left Side




Drive Belt Tensioner Installation - Left Side

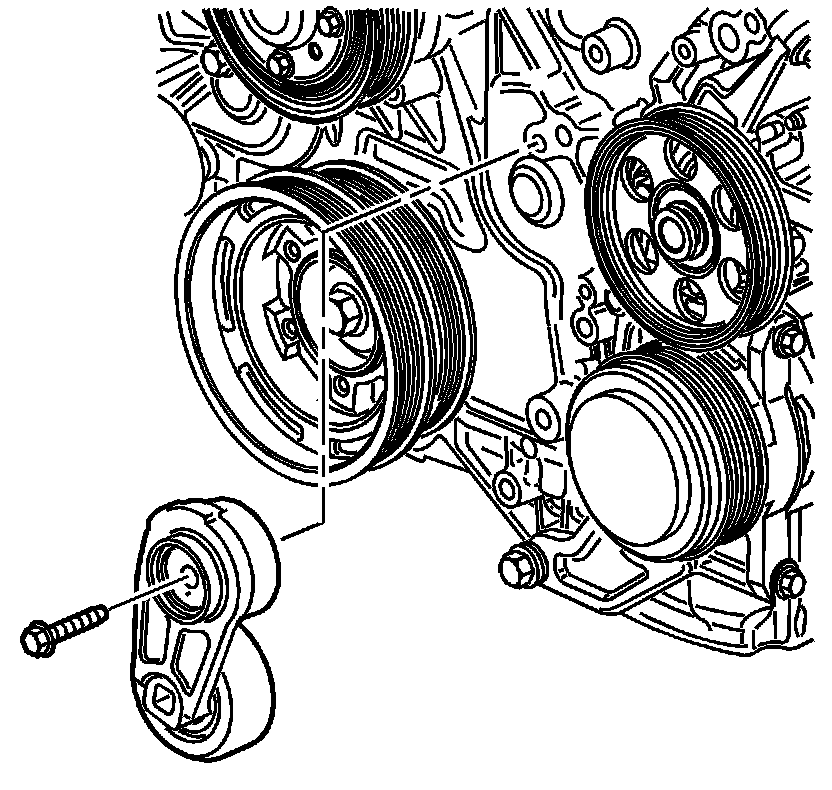

1. Place the left drive belt tensioner in position to the engine front cover.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the left drive belt tensioner bolt. Tighten the left drive belt tensioner bolt to 50 Nm (37 lb ft).
