131. Engine Flywheel Installation

Engine Flywheel Installation

Special Tools
* EN 46106 - Engine Flywheel Holding Tool
* J 45059 - Angle Meter

For equivalent regional tools, refer to Special Tools (Special Tools)

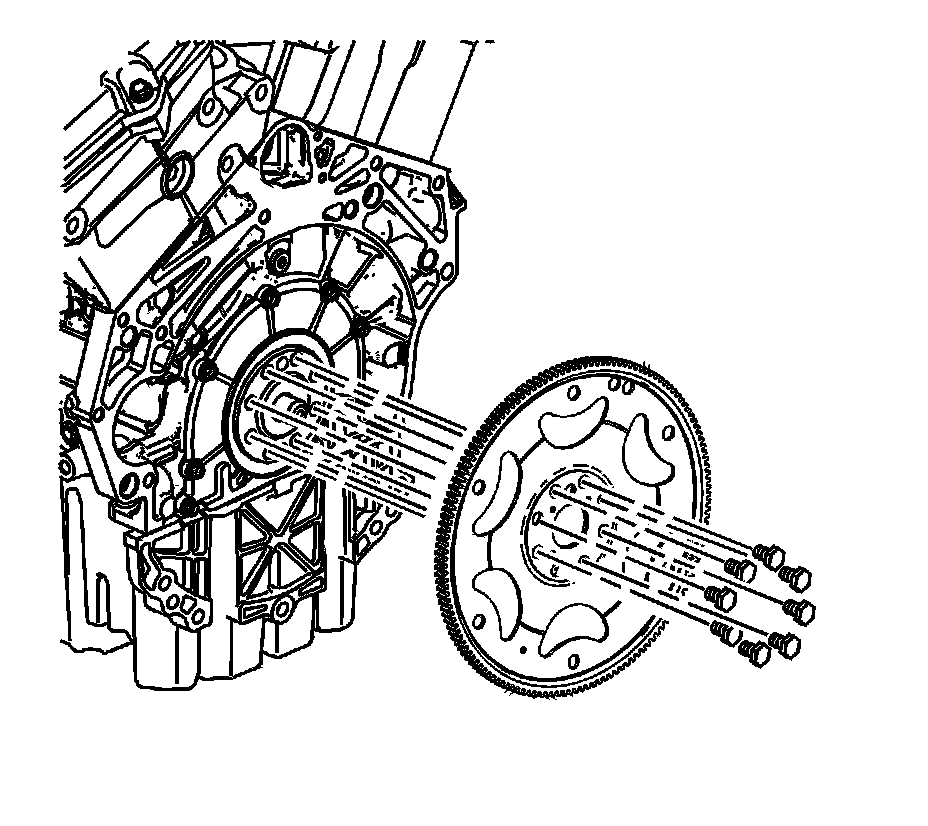

1. Place the engine flywheel in position on the crankshaft.
2. Install 2 NEW bolts in location at the top and bottom of the engine flywheel bolt pattern allowing the engine flywheel to hang in position.

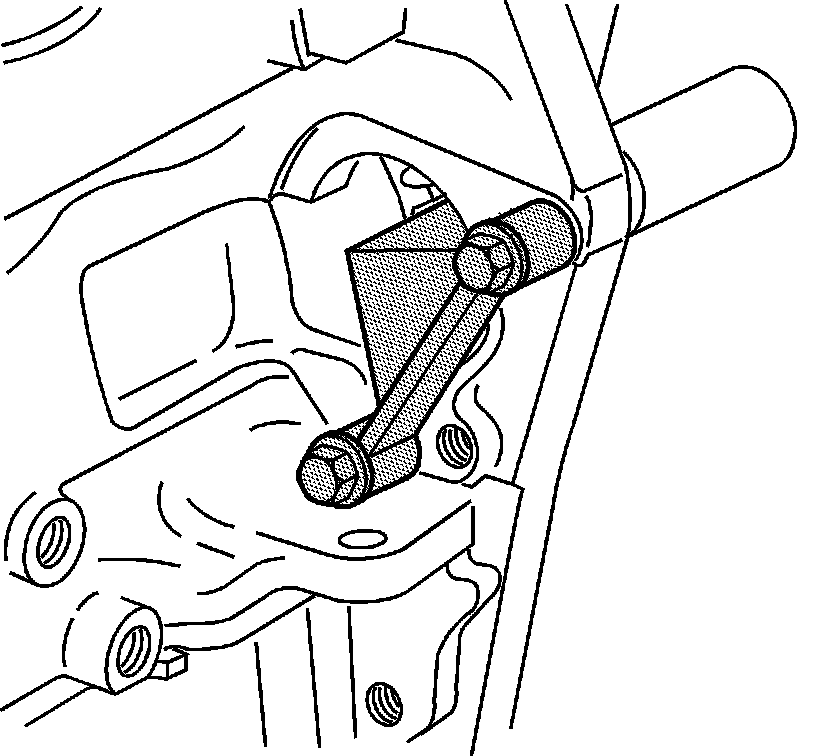

3. Install the EN 46106 - tool.





Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the remaining NEW engine flywheel bolts.

* Tighten the NEW engine flywheel bolts to 30 Nm (22 lb ft).
* Tighten the NEW engine flywheel bolts an additional 45 degrees using the J 45059 - meter.




5. Remove the EN 46106 - tool.
