119. Primary Timing Chain Guide Installation - Lower

Primary Timing Chain Guide Installation - Lower

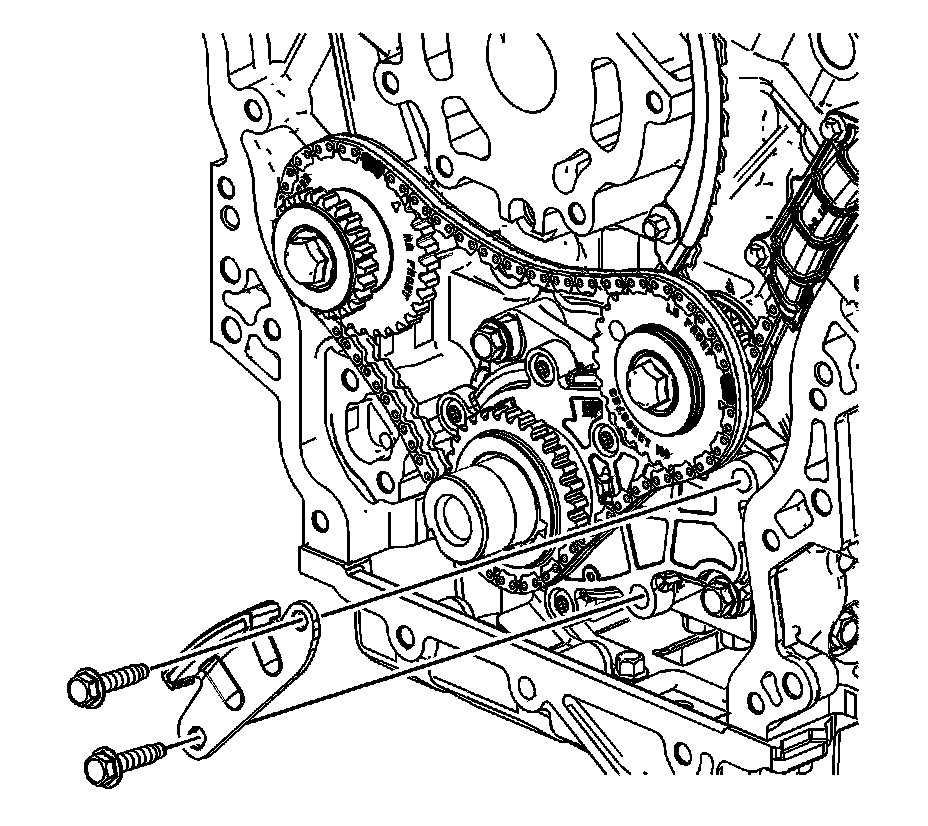

1. Position the primary camshaft drive chain lower guide to the oil pump.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the primary camshaft drive chain lower guide bolts and tighten to 25 Nm (18 lb ft).
