Coolant Heater Replacement (KO5)

Coolant Heater Replacement (LY7, KO5, LLT) (3.6L)

Removal Procedure

1. Turn the ignition OFF.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
3. Disconnect the coolant heater cord from the coolant heater.

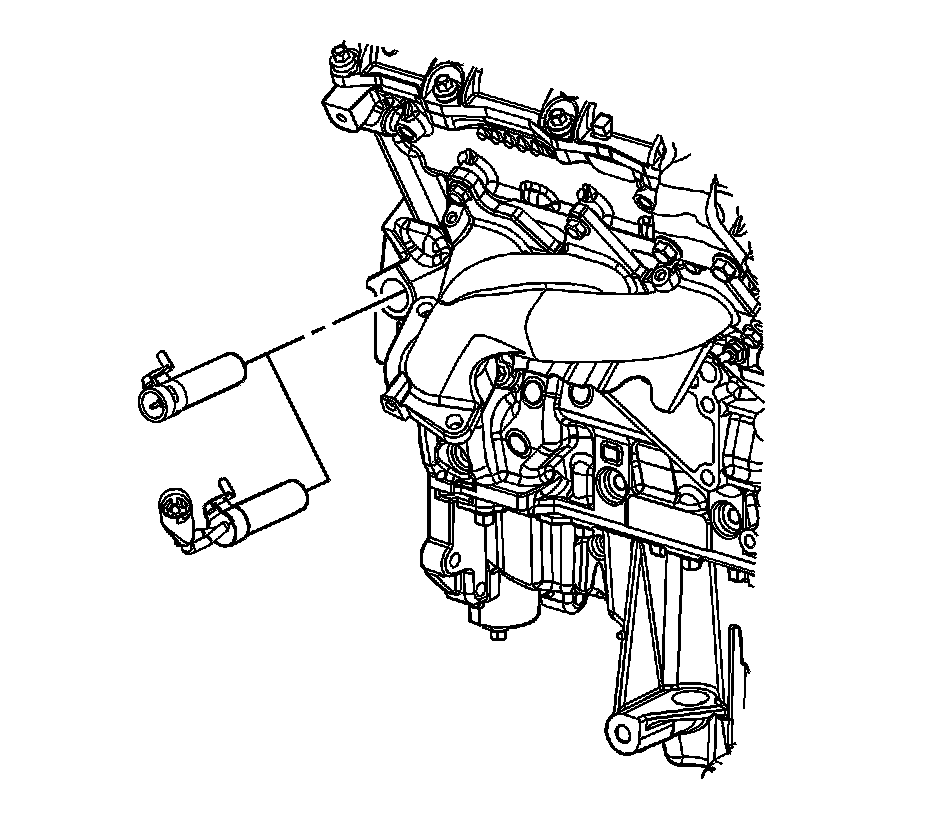

4. Remove the coolant heater.

Installation Procedure




1. Install the coolant heater.
2. Connect the coolant heater cord to the coolant heater.
3. Lower the vehicle.
