Valve Lifter Replacement - Right Side

Valve Lifter Replacement - Right Side

Removal Procedure




1. Remove the applicable camshafts. Refer to Camshaft Replacement - Right Side (LP1, LY7) (Camshaft Replacement - Right Side)Camshaft Replacement - Right Side (LLT) (Camshaft Replacement - Right Side).
2. Remove the rocker arms. Refer to Valve Rocker Arm Replacement - Right Side (Valve Rocker Arm Replacement - Right Side).

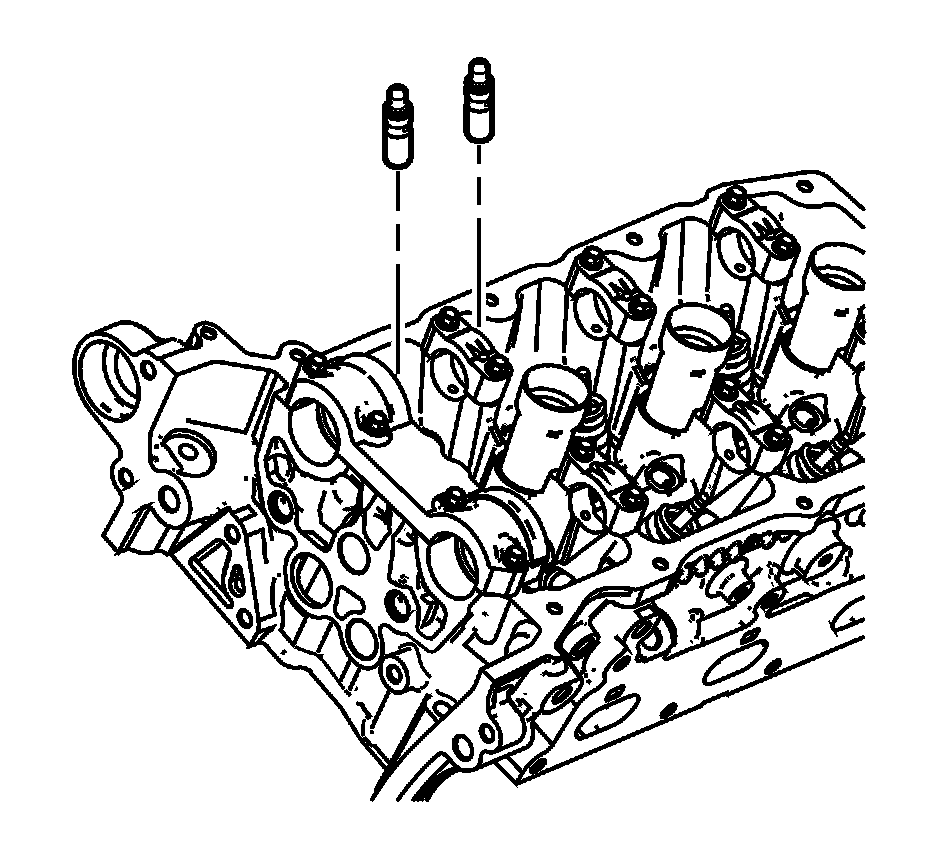

3. Remove the lifters. Refer to Valve Lifter Replacement - Right Side .
4. Clean and inspect the camshafts, rocker arms and lifters. Repair or replace as necessary. Refer to Camshaft Cleaning and Inspection () , Valve Rocker Arm Cleaning and Inspection (Overhaul) and Valve Lifter Cleaning and Inspection (Overhaul).

Installation Procedure




1. Install the lifters. Refer to Valve Lifter Replacement - Right Side .
2. Install the rocker arms. Refer to Valve Rocker Arm Replacement - Right Side (Valve Rocker Arm Replacement - Right Side).
3. Install the applicable camshafts. Refer to Camshaft Replacement - Right Side (LP1, LY7) (Camshaft Replacement - Right Side)Camshaft Replacement - Right Side (LLT) (Camshaft Replacement - Right Side).
