JX200 - JX299




Harness Routing Views

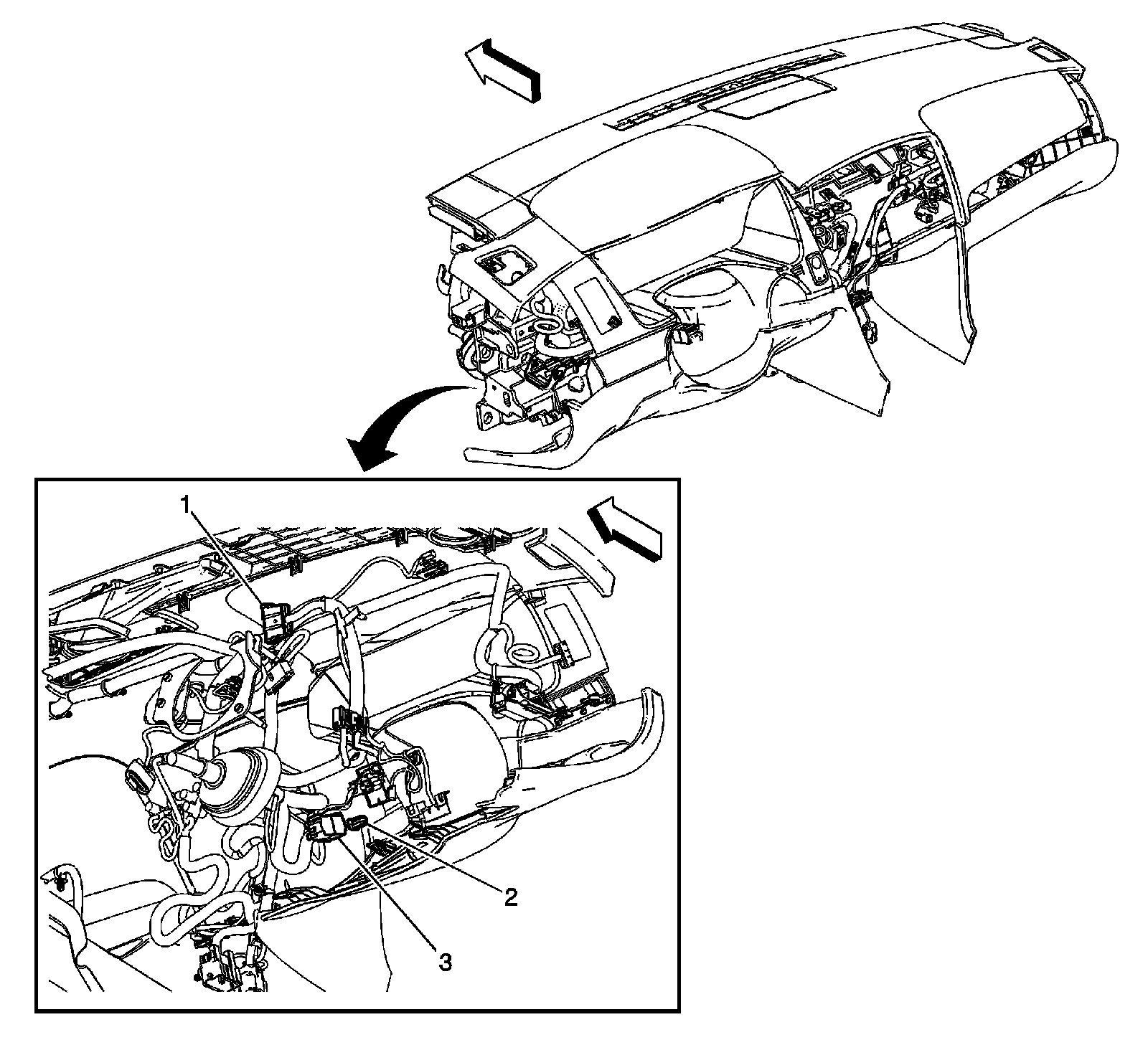

Instrument Panel Harness - Left Side of Instrument Panel




1 - JX201
2 - X218
3 - X202
