LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2009
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Master Splice List
Master Splice List
Master Electrical Component List
J100:

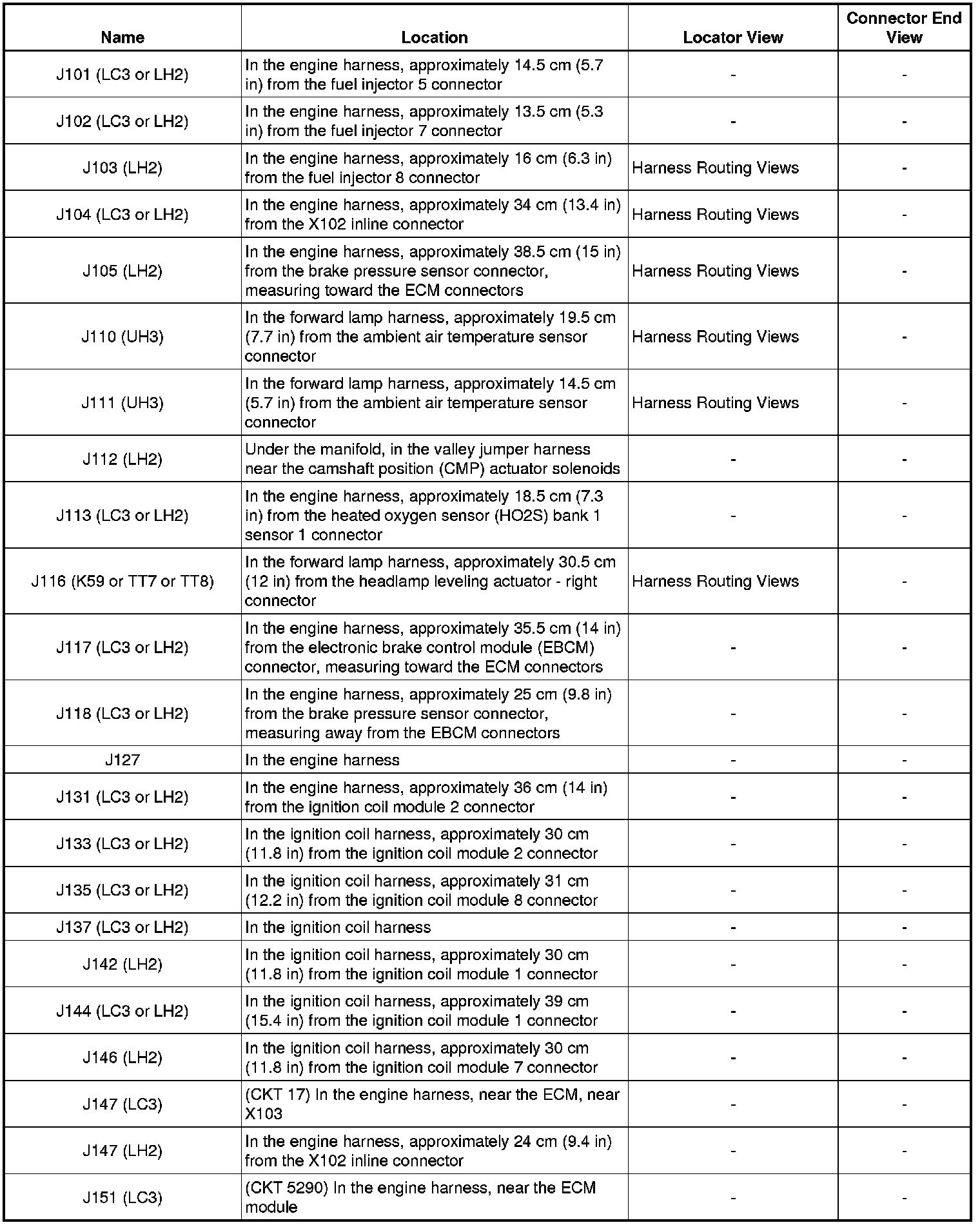

J101 - J151:

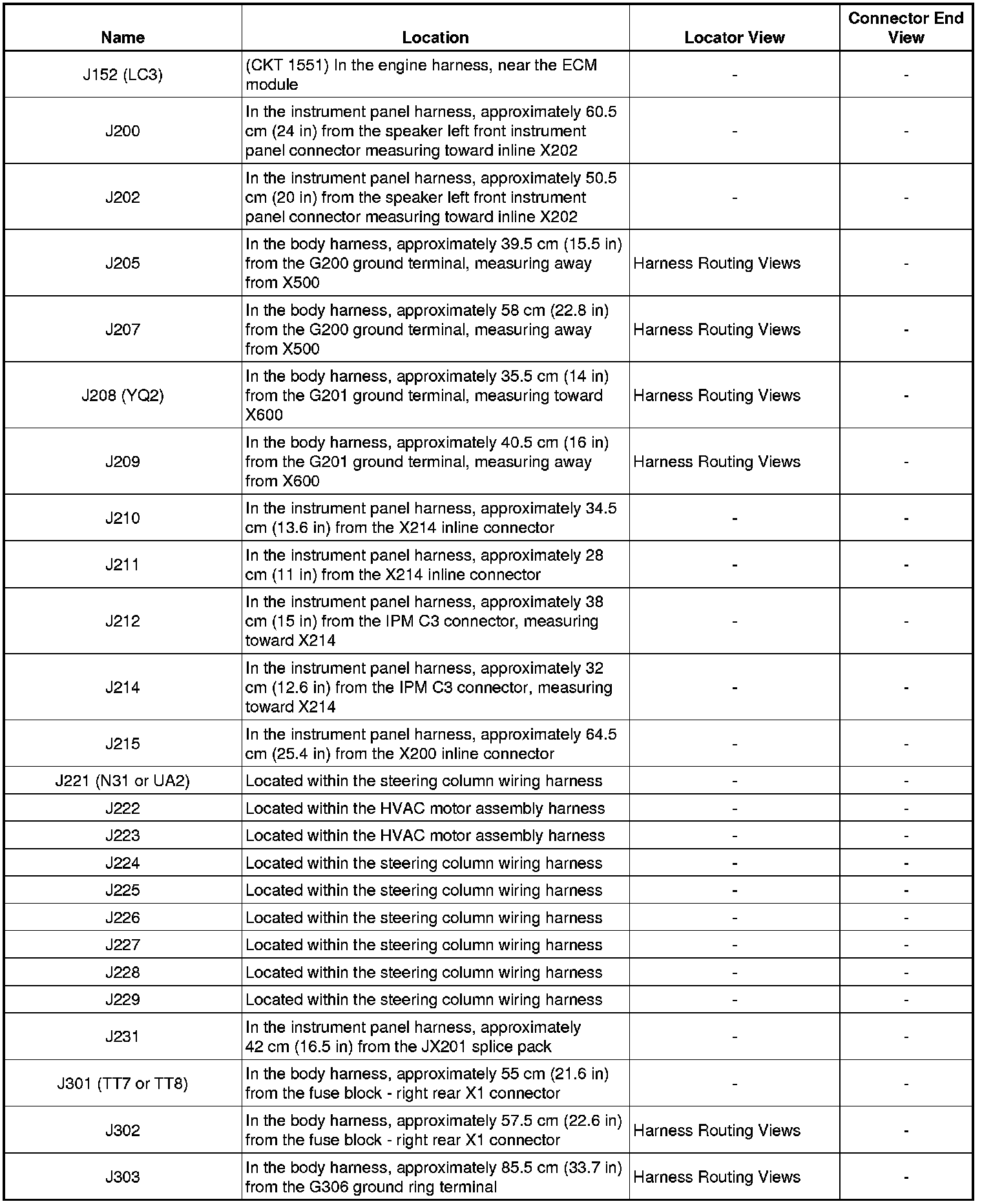

J152 - J303:

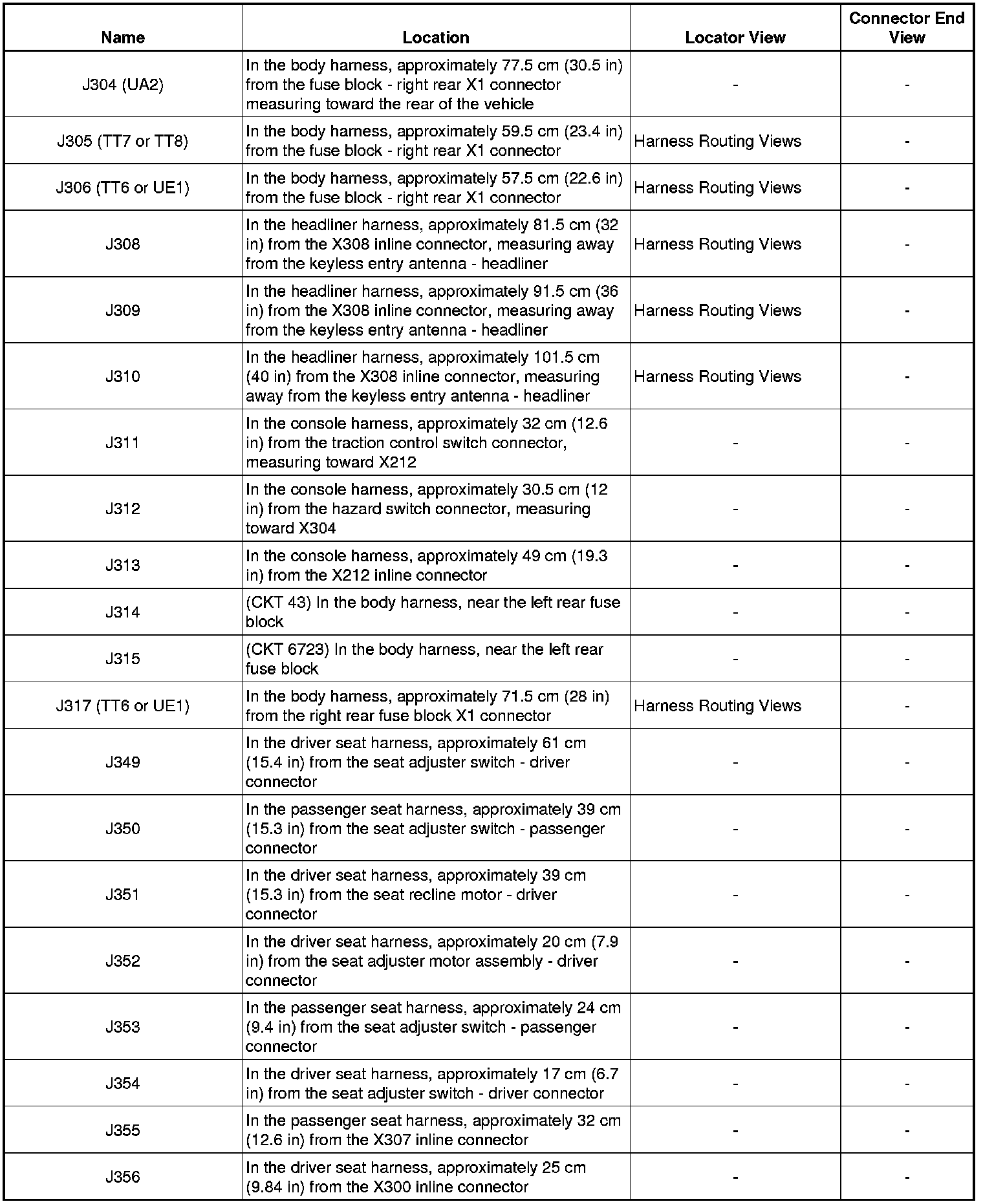

J304 - J356:

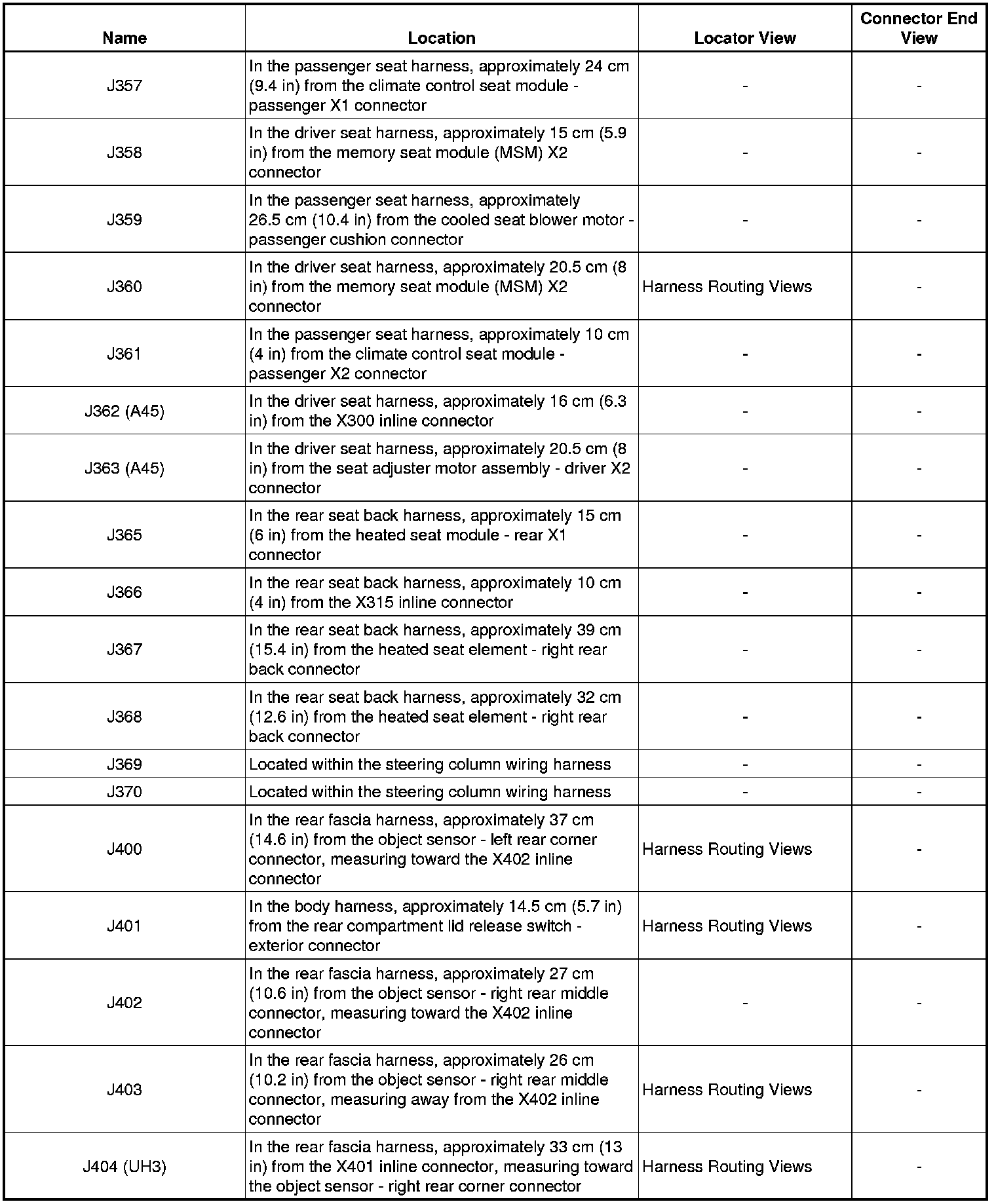

J357 - J404:

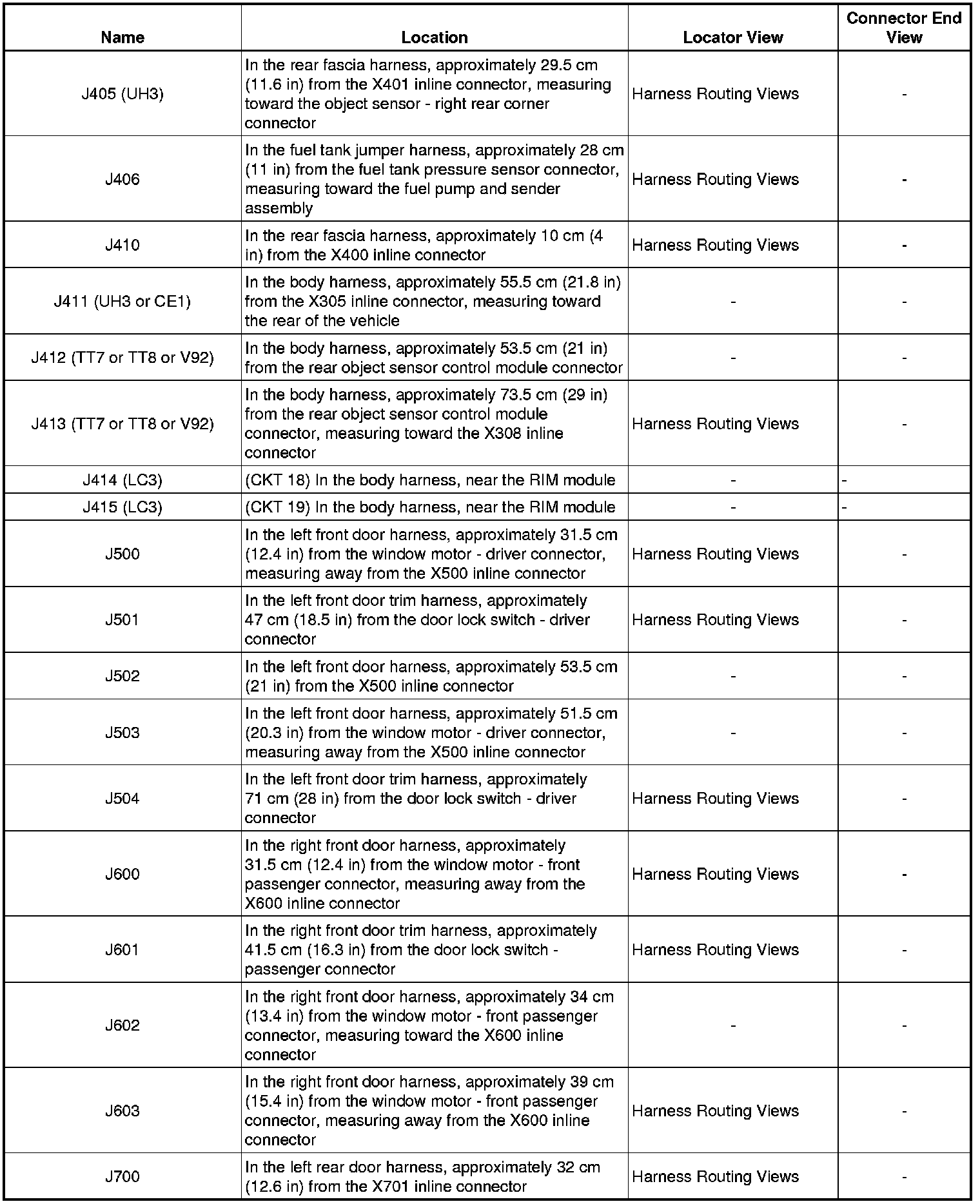

J405 - J700:

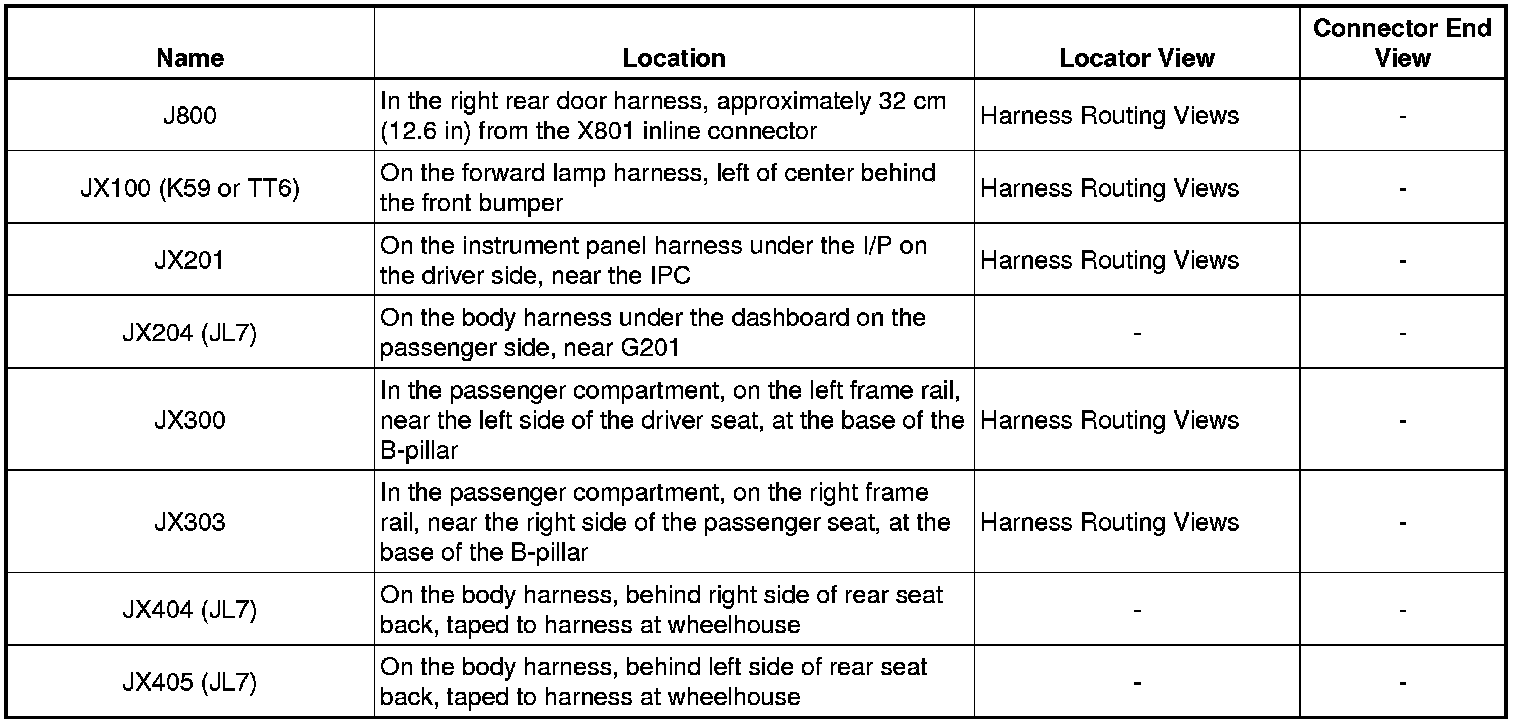

J800 - JX405:
