Instrument Panel Harness - Below Center Console

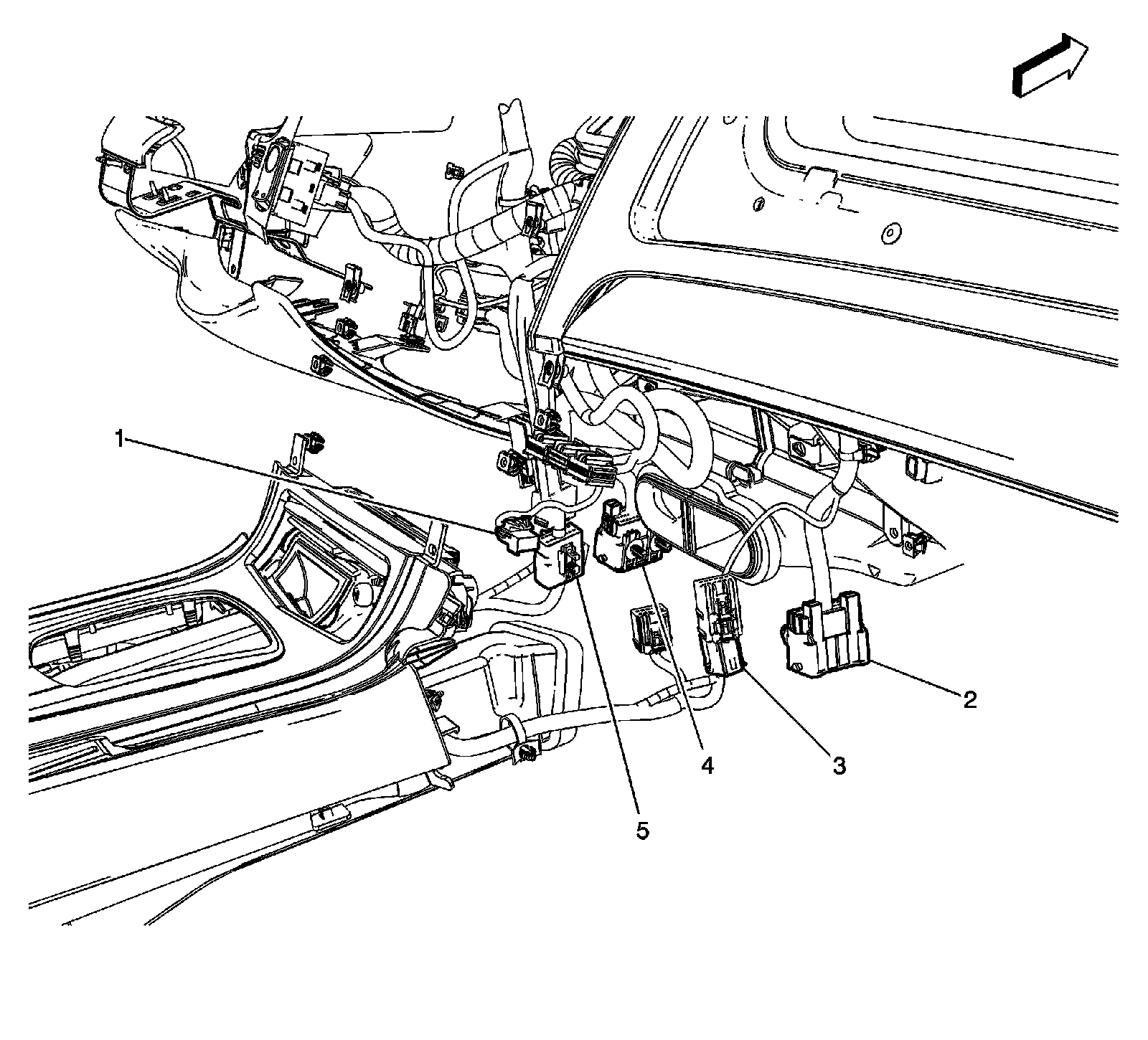

Harness Routing Views

Instrument Panel Harness - Below Center Console




1 - X215
2 - X201
3 - Fuse Block - Steering Column
4 - X204
5 - X304
