G201

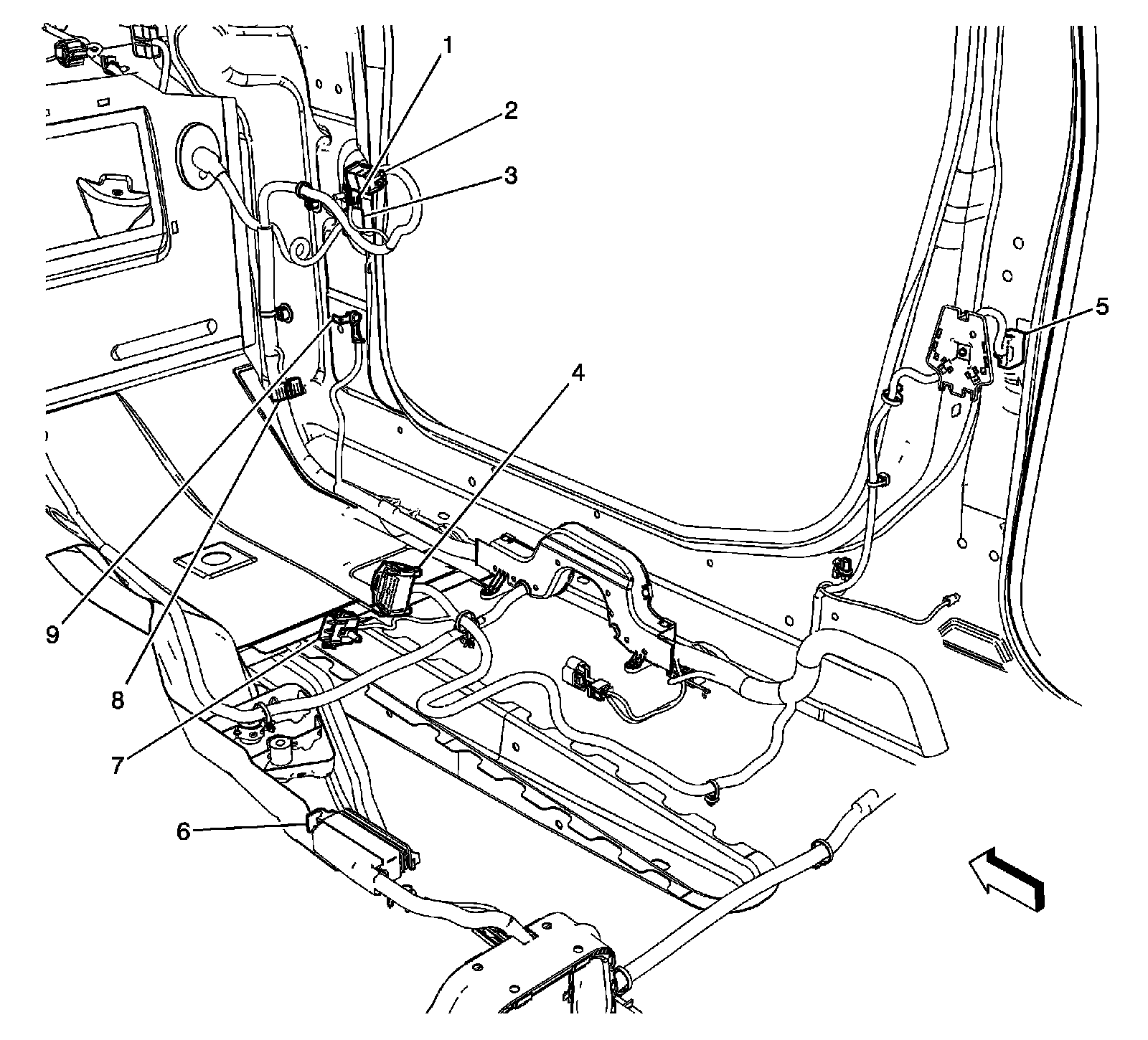

Harness Routing Views

Body Harness - Right Front Passenger Compartment




1 - X217
2 - X200
3 - X600
4 - X307
5 - X800
6 - G306
7 - X318
8 - JX303
9 - G201
