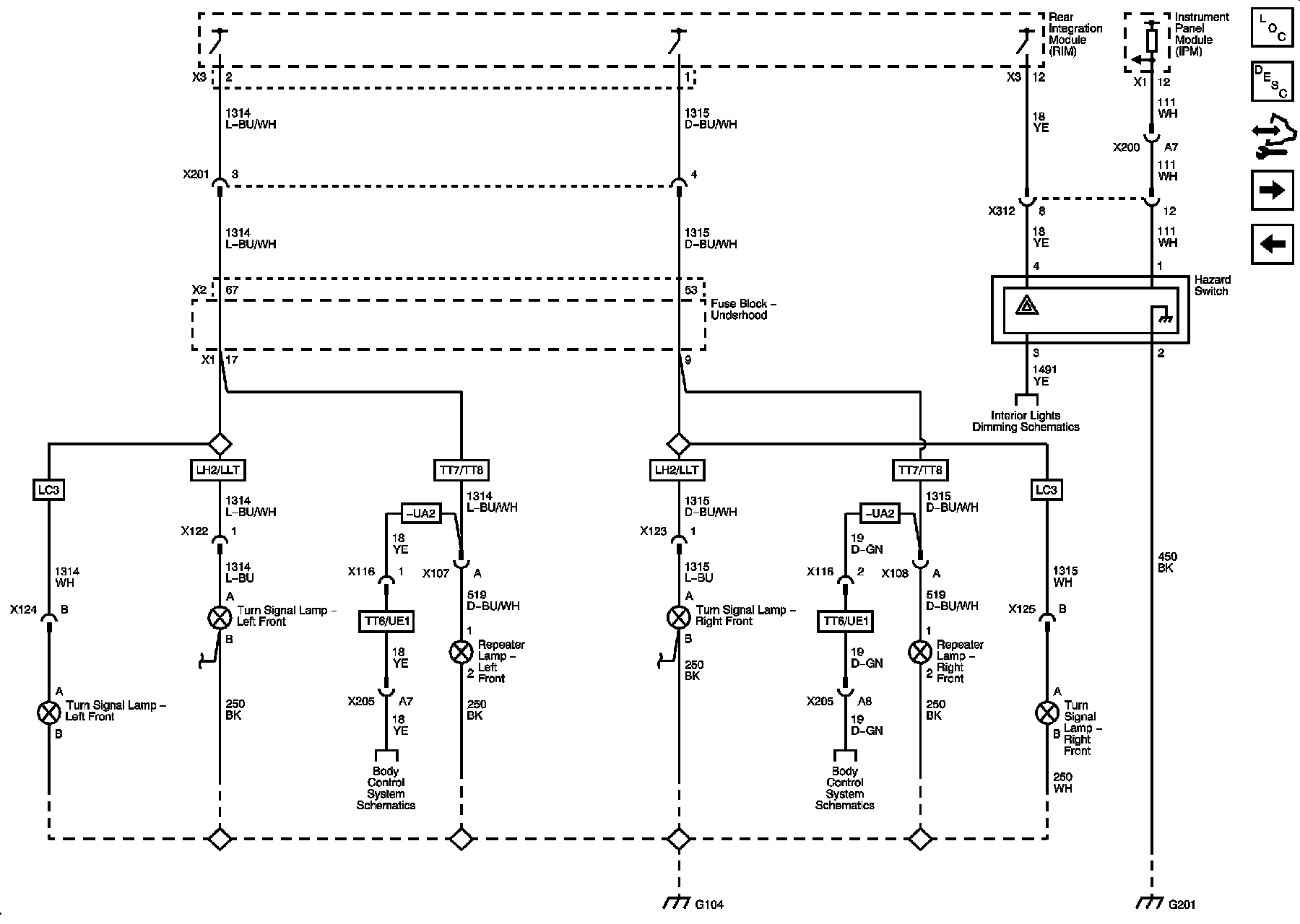

Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights Schematics >> Exterior Lights Schematic 5
