X801




Inline Harness Connector End Views

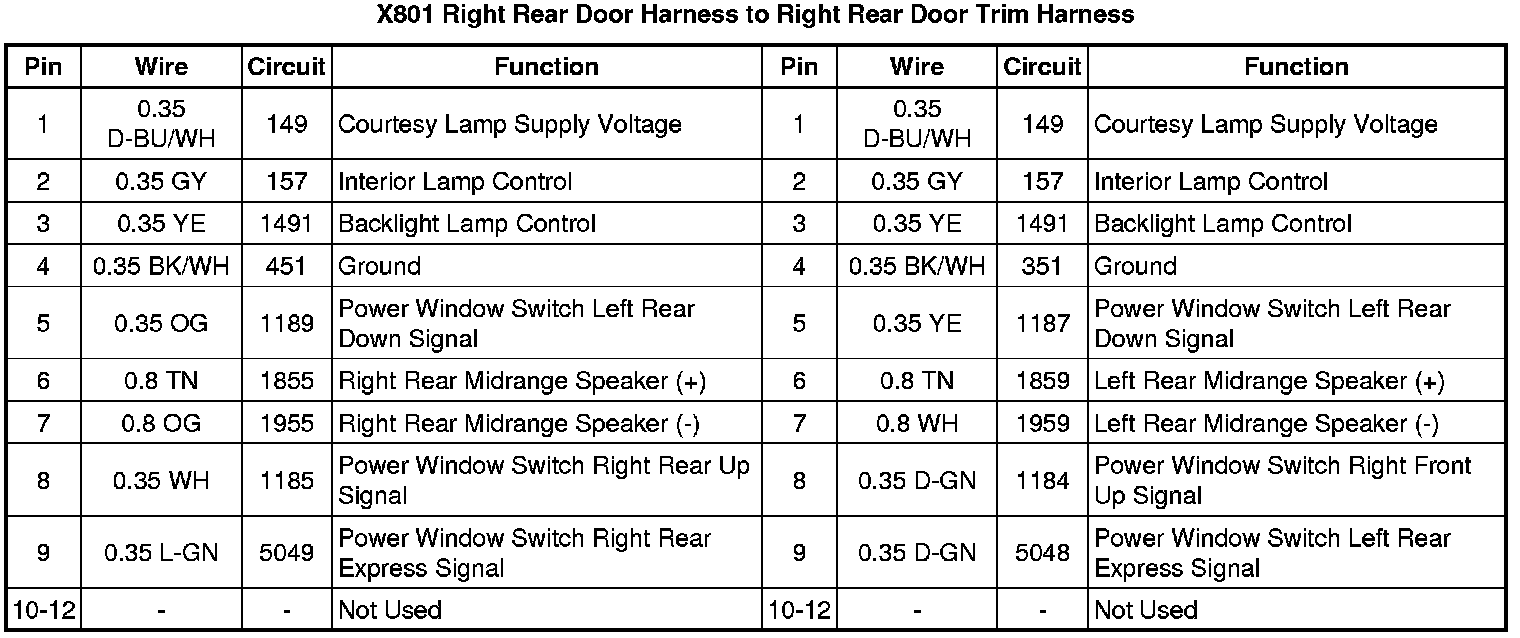

X801 Right Rear Door Harness to Right Rear Door Trim Harness
