Cadillac
>>
2009
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Malfunction Lamp / Indicator, Air Bag
Malfunction Lamp / Indicator, Air Bag

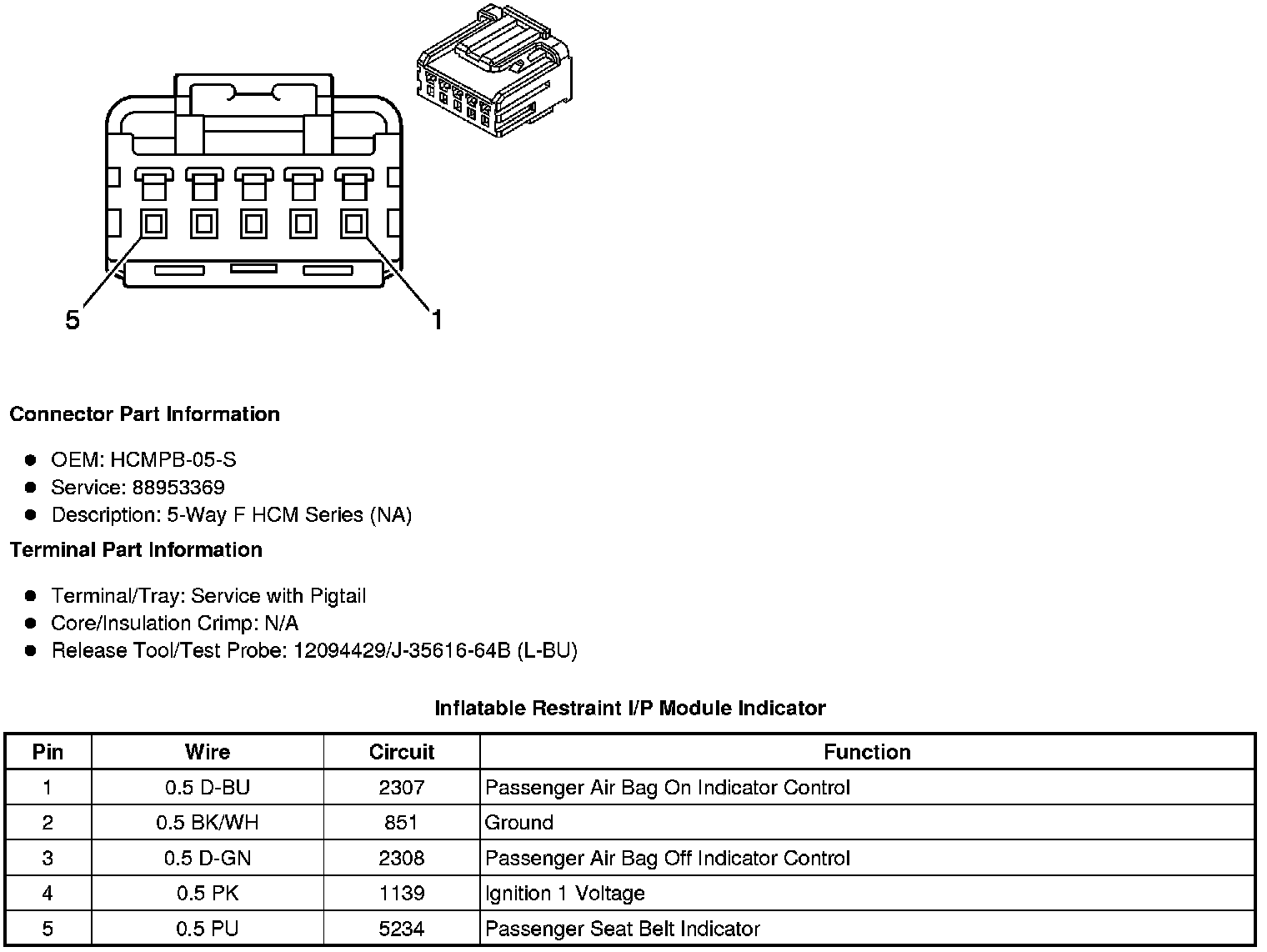

Component Connector End Views
Inflatable Restraint I/P Module Indicator
