Antilock Brake System Schematics (With RPO JL7)




Antilock Brake System Schematics (JL7)

EBCM Power, Ground, and DLC

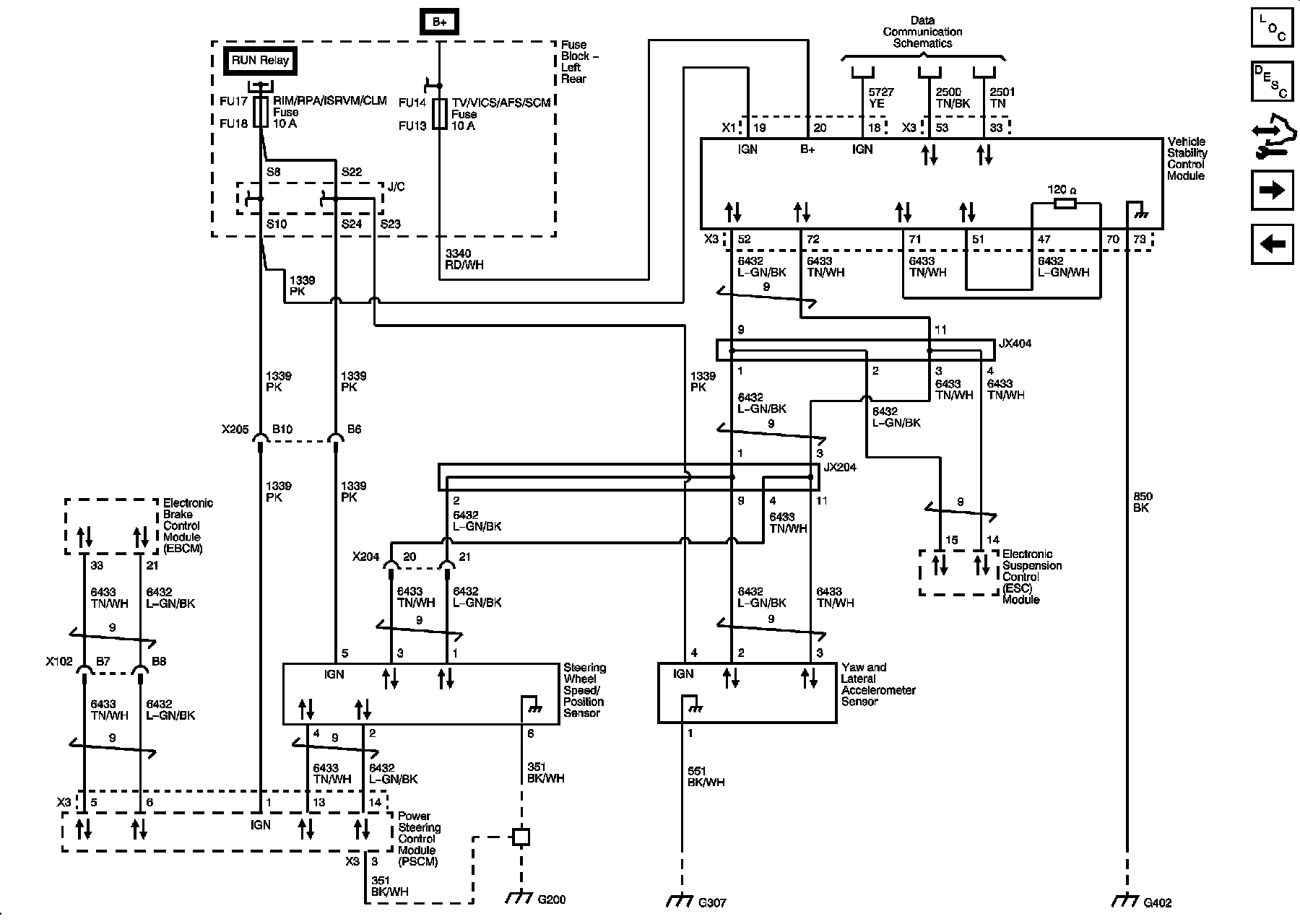

Steering Angle and Acceleration Sensors





Wheel Speed Sensors





Traction Control
