Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Diagrams

Trunk / Liftgate Switch: Diagrams




Component Connector End Views

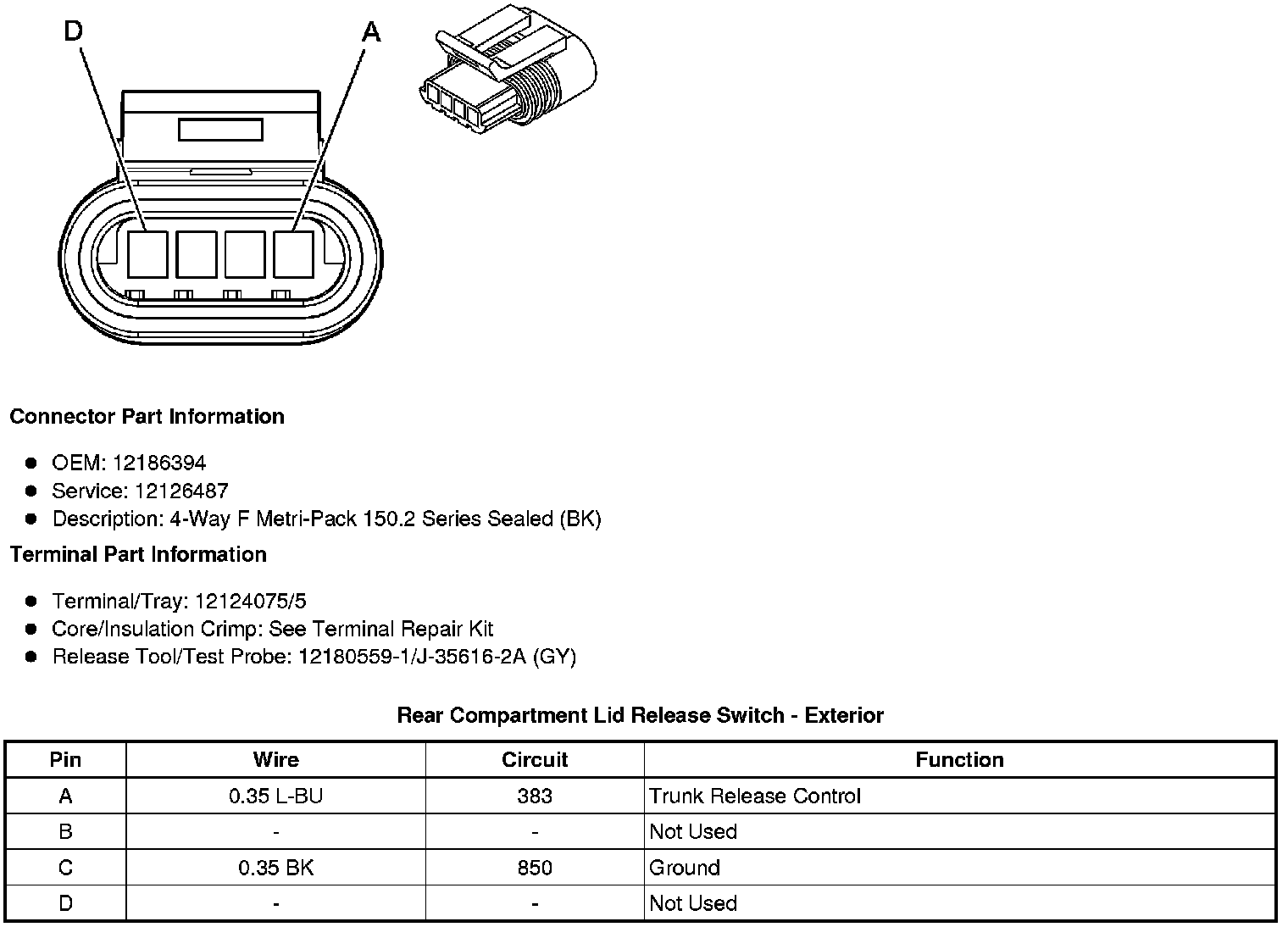

Rear Compartment Lid Release Switch - Exterior

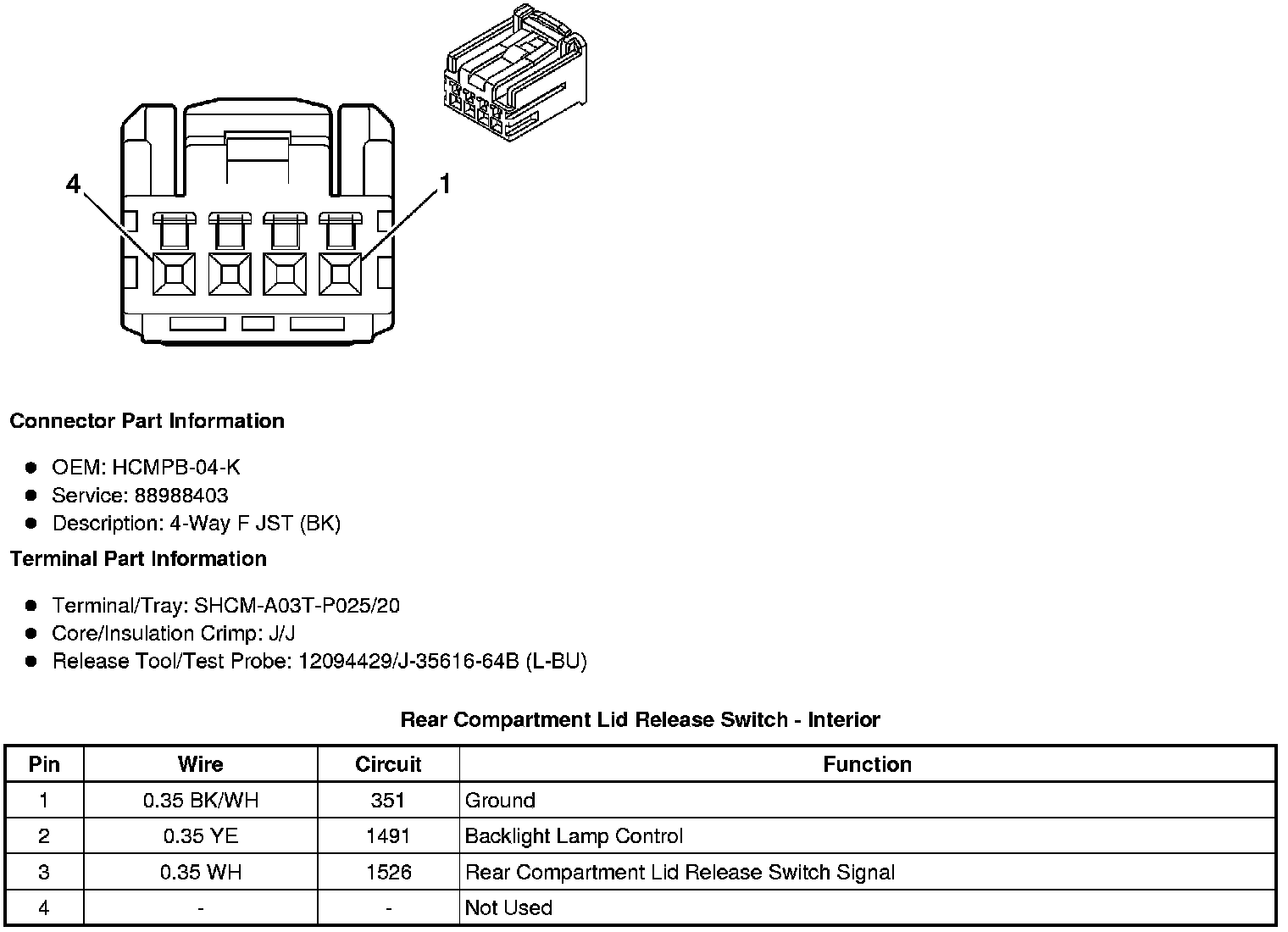

Rear Compartment Lid Release Switch - Interior
