Home
>>
Cadillac
>>
2009
>>
STS AWD V6-3.6L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Connector Views
Connector Views

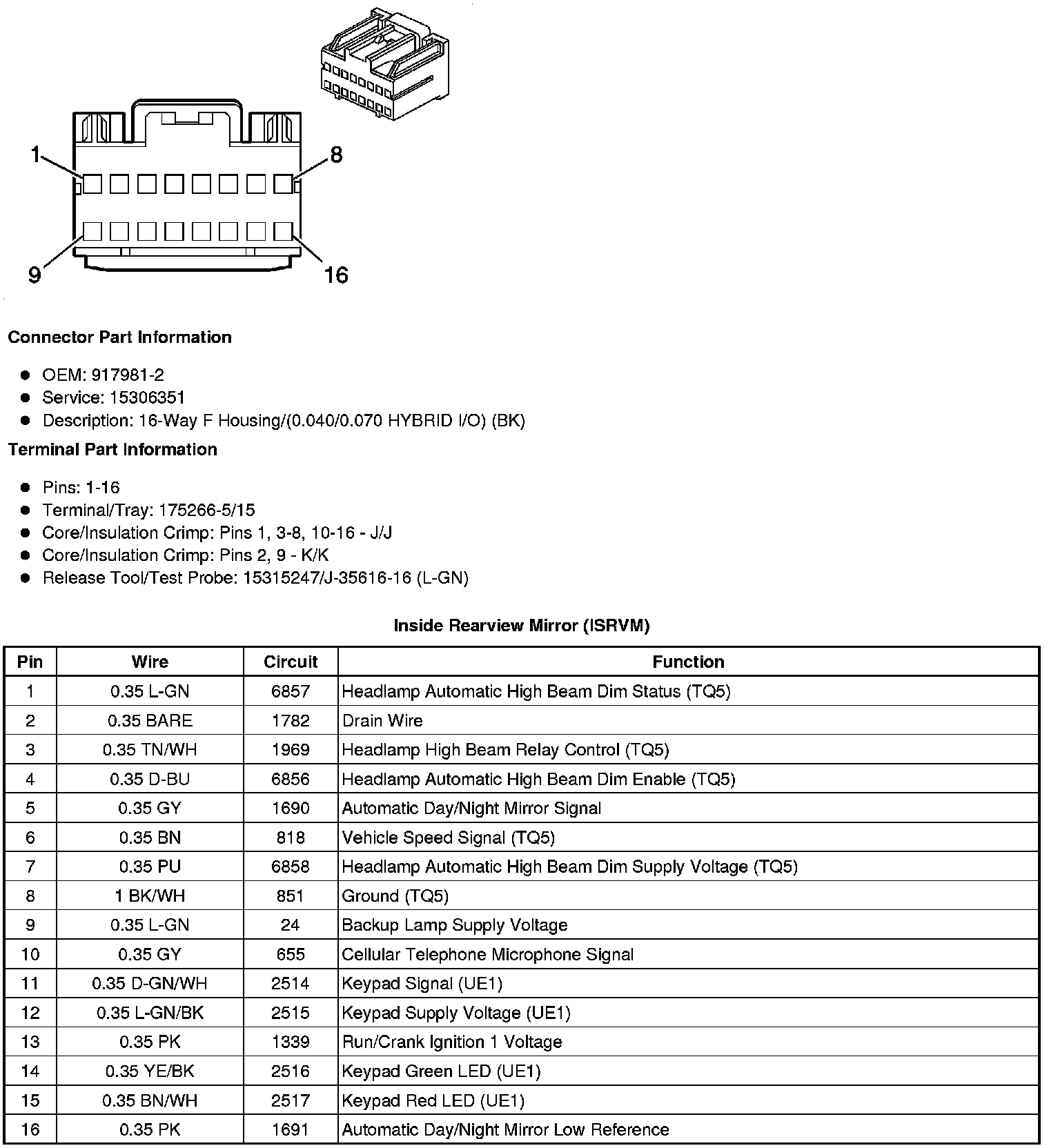

Component Connector End Views
Inside Rearview Mirror (ISRVM)
