Instrument Panel Compartment Replacement

Instrument Panel Compartment Replacement

Removal Procedure

1. Remove the instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Service and Repair).

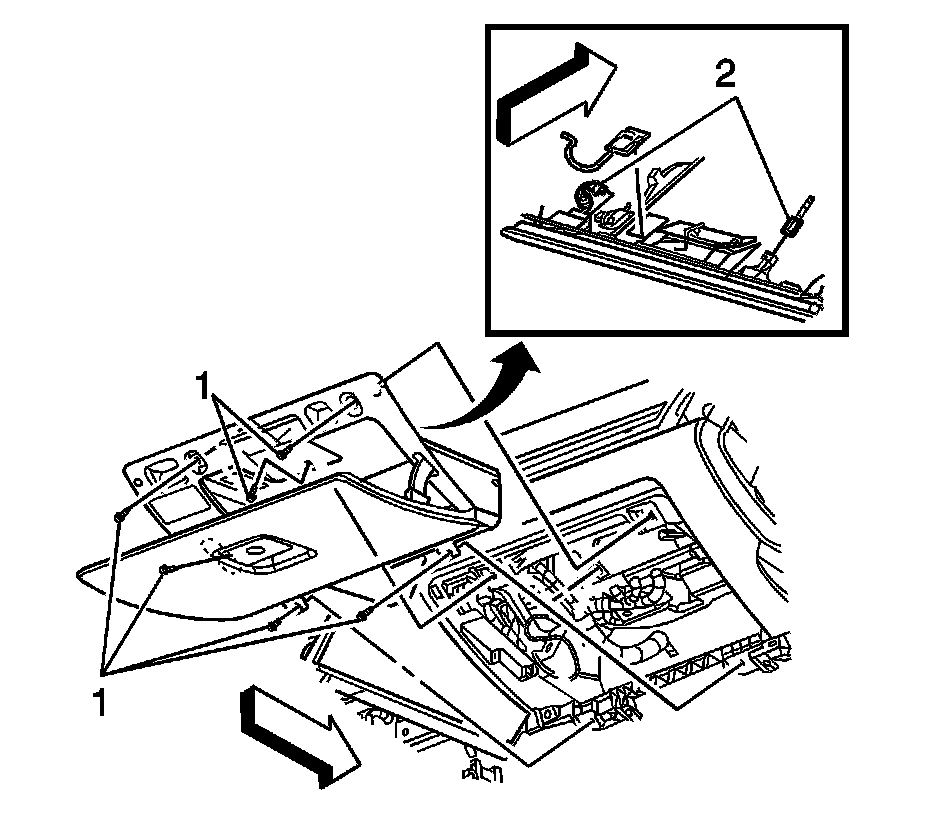

2. Remove the 6 screws (1) securing the instrument panel compartment.
3. Disconnect the electrical connectors (2).

Installation Procedure




1. Connect the electrical connectors (2).
2. Install the 6 screws (1) securing the instrument panel compartment.
3. Install the instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side (Service and Repair).
