Ashtray Replacement

Ashtray Replacement

Removal Procedure

1. Remove the center instrument panel trim. Refer to Instrument Panel Center Trim Panel Replacement (Service and Repair).

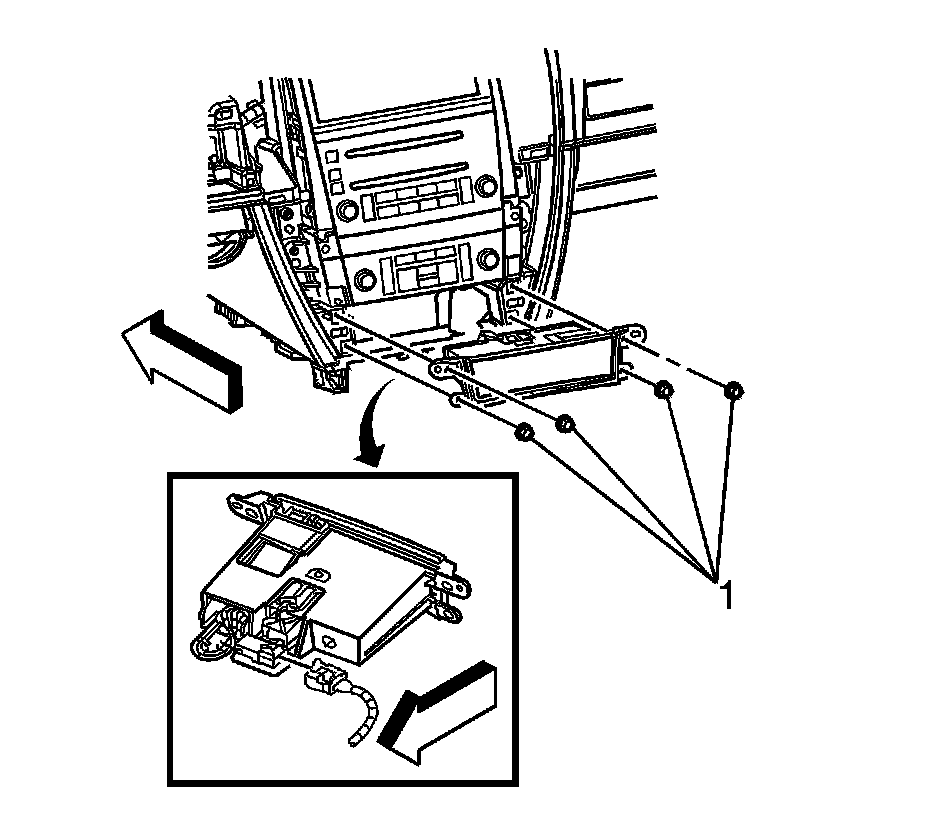

2. Remove the 4 screws (1) securing the ashtray.
3. Disconnect the electrical connectors.

Installation Procedure




1. Connect the electrical connectors.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the 4 screws (1) securing the ashtray and tighten to 9 Nm (80 lb in).
3. Install the center instrument panel trim. Refer to Instrument Panel Center Trim Panel Replacement (Service and Repair).
