Front Door Handle: Diagrams




Component Connector End Views

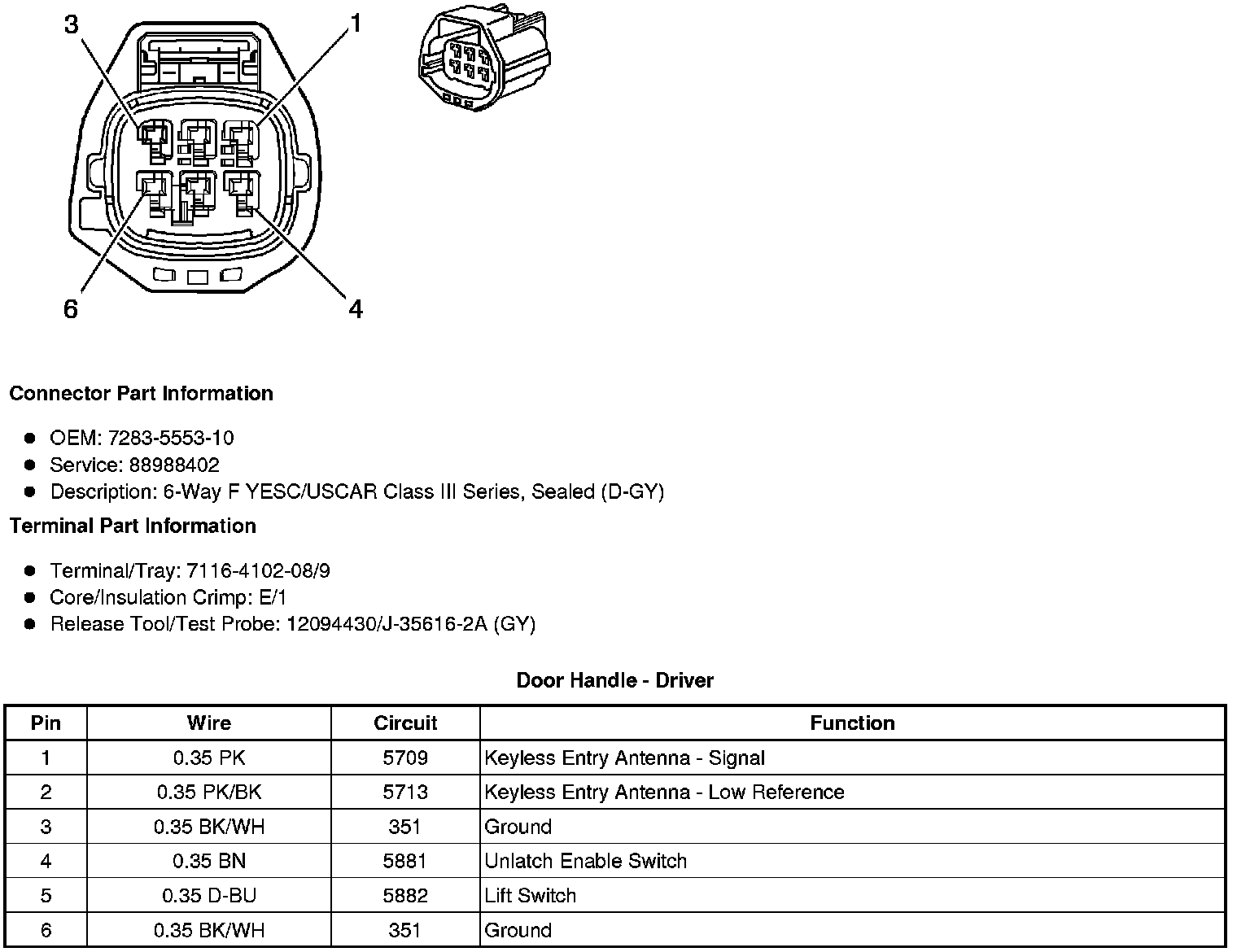

Door Handle - Driver






Door Handle - Passenger
