Radio/Stereo: Diagrams




Component Connector End Views

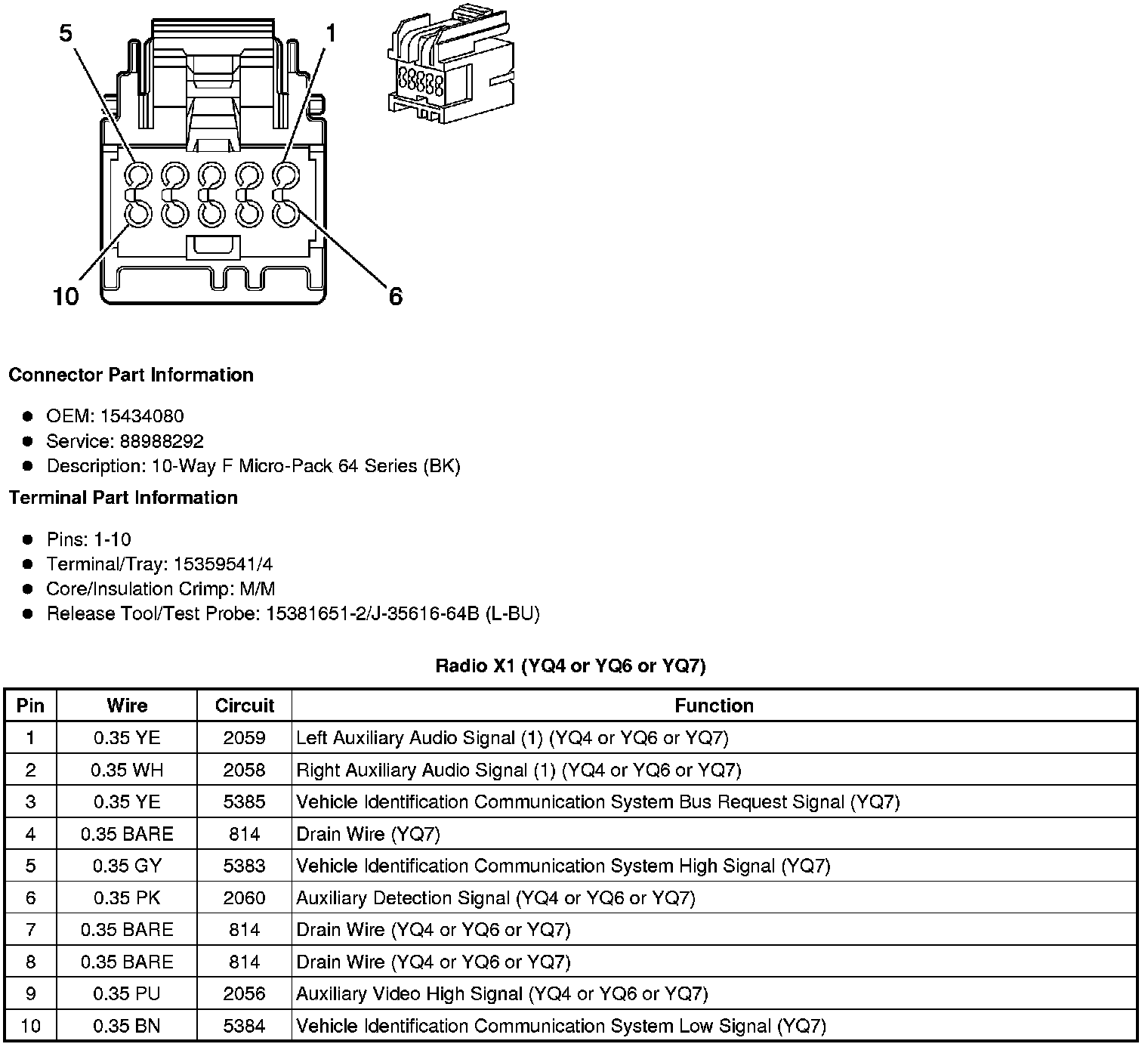

Radio X1 (YQ4 or YQ6 or YQ7)

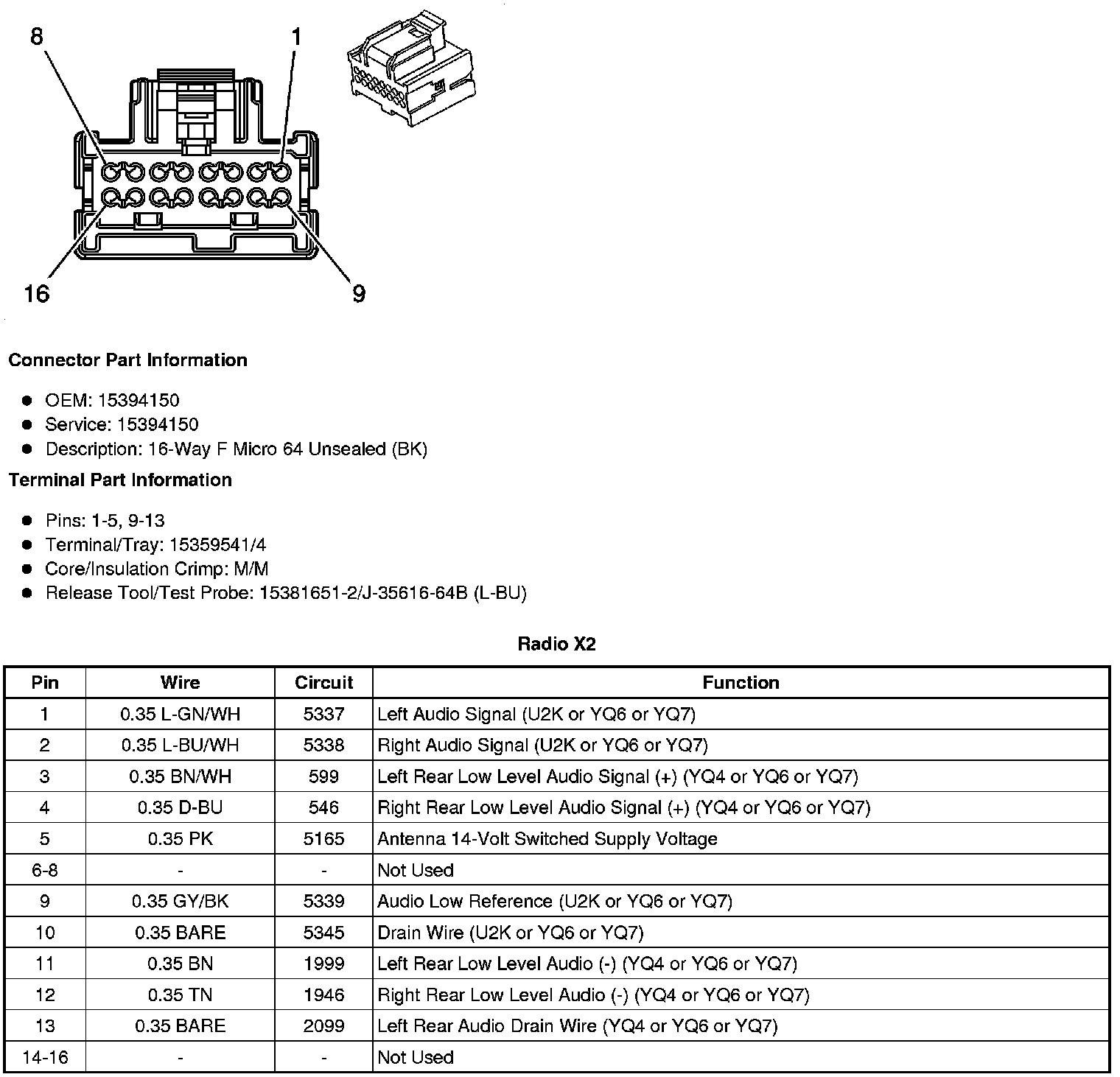

Radio X2

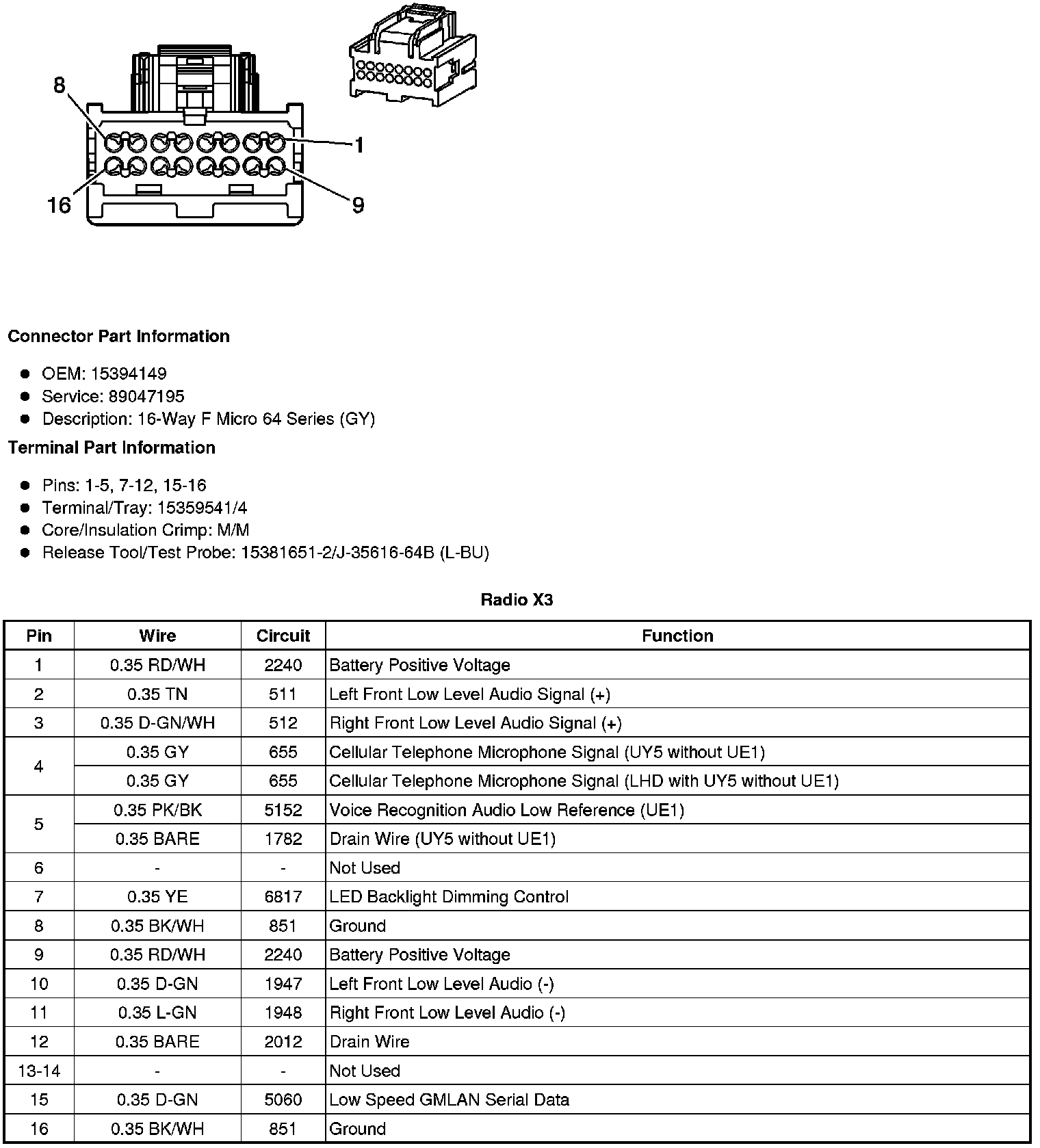

Radio X3

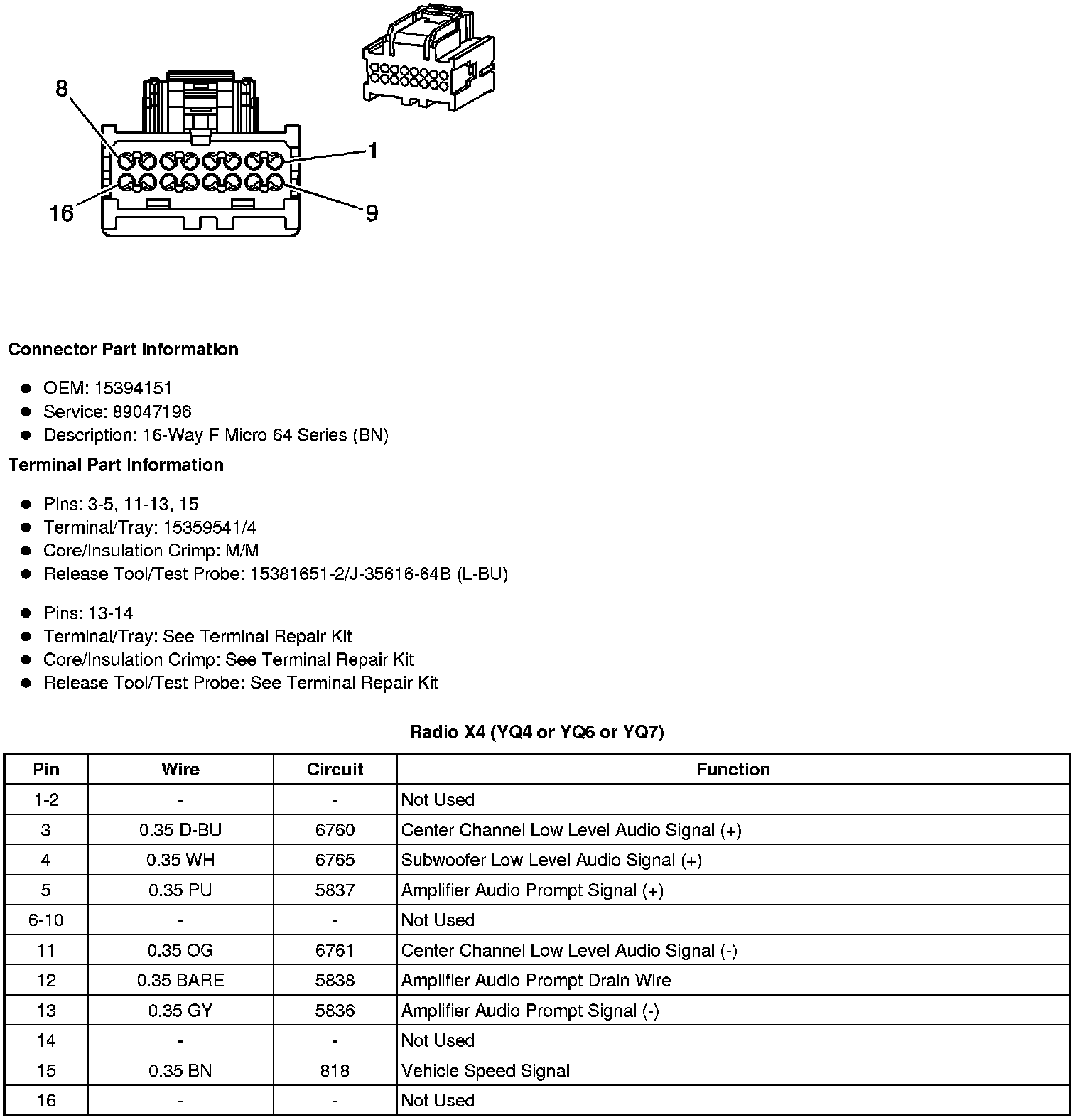

Radio X4 (YQ4 or YQ6 or YQ7)






Radio X5










Radio X6 (YQA or YQ6 or YQ7)










Radio X7 (YQ6 or YQ7)
