Automatic Transmission Controls Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

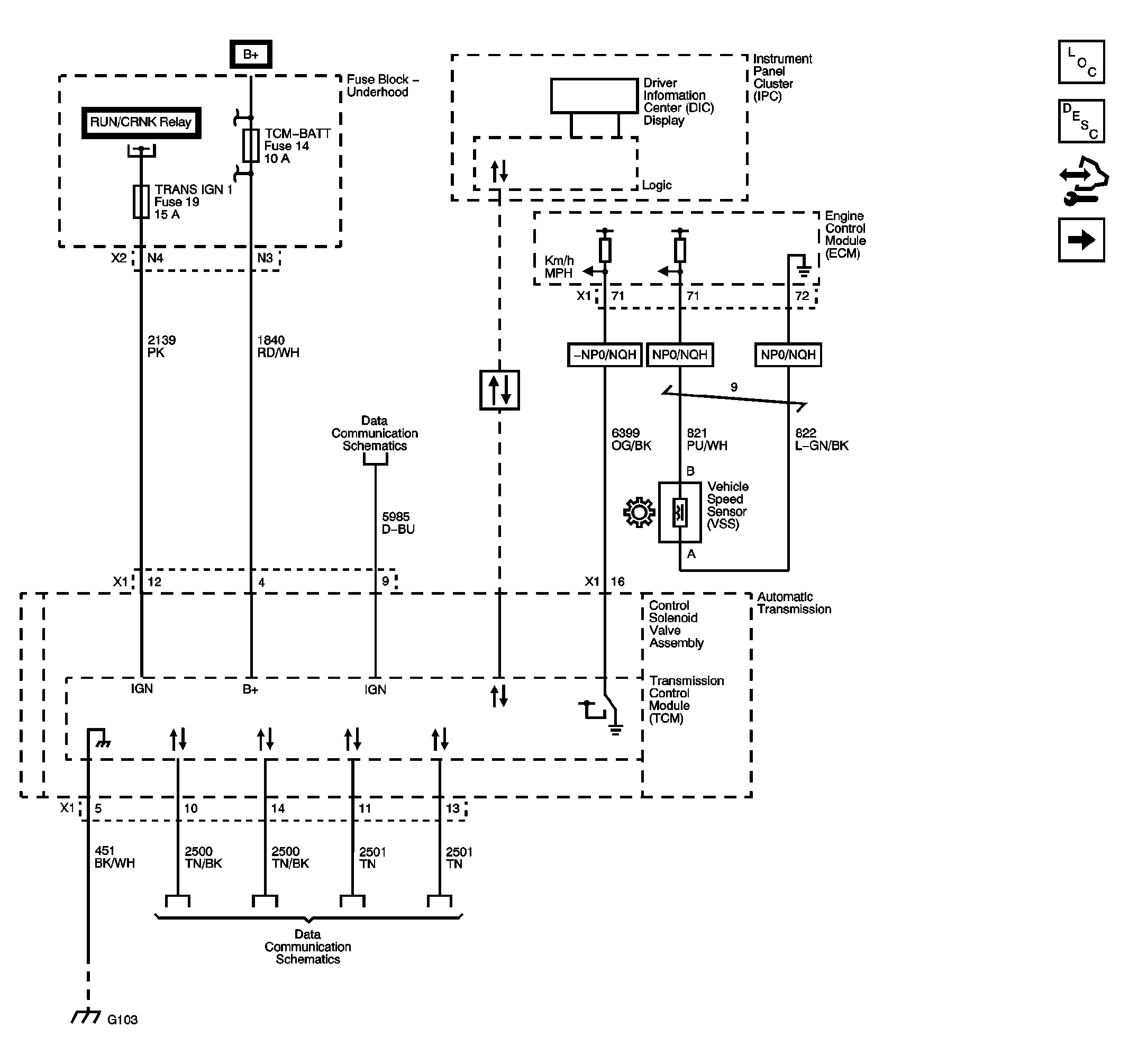

Fig 1: Module Power, Ground, Serial Data, and Stop Lamp Switch
GM2241380Courtesy of GENERAL MOTORS CORP.

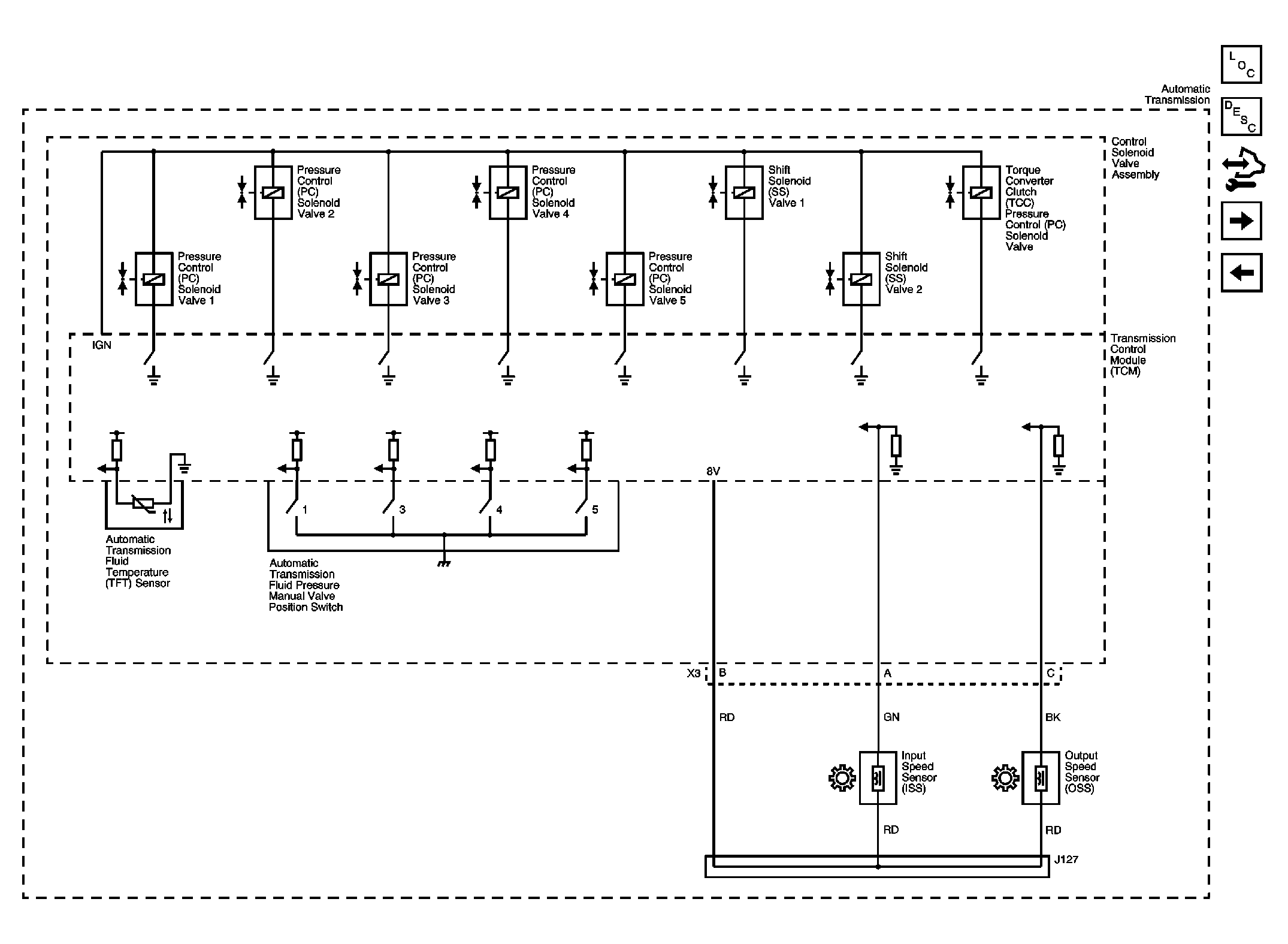

Fig 2: ISS, OSS, TFP, TFT, Pressure Controls and Shift Controls
GM2241384Courtesy of GENERAL MOTORS CORP.

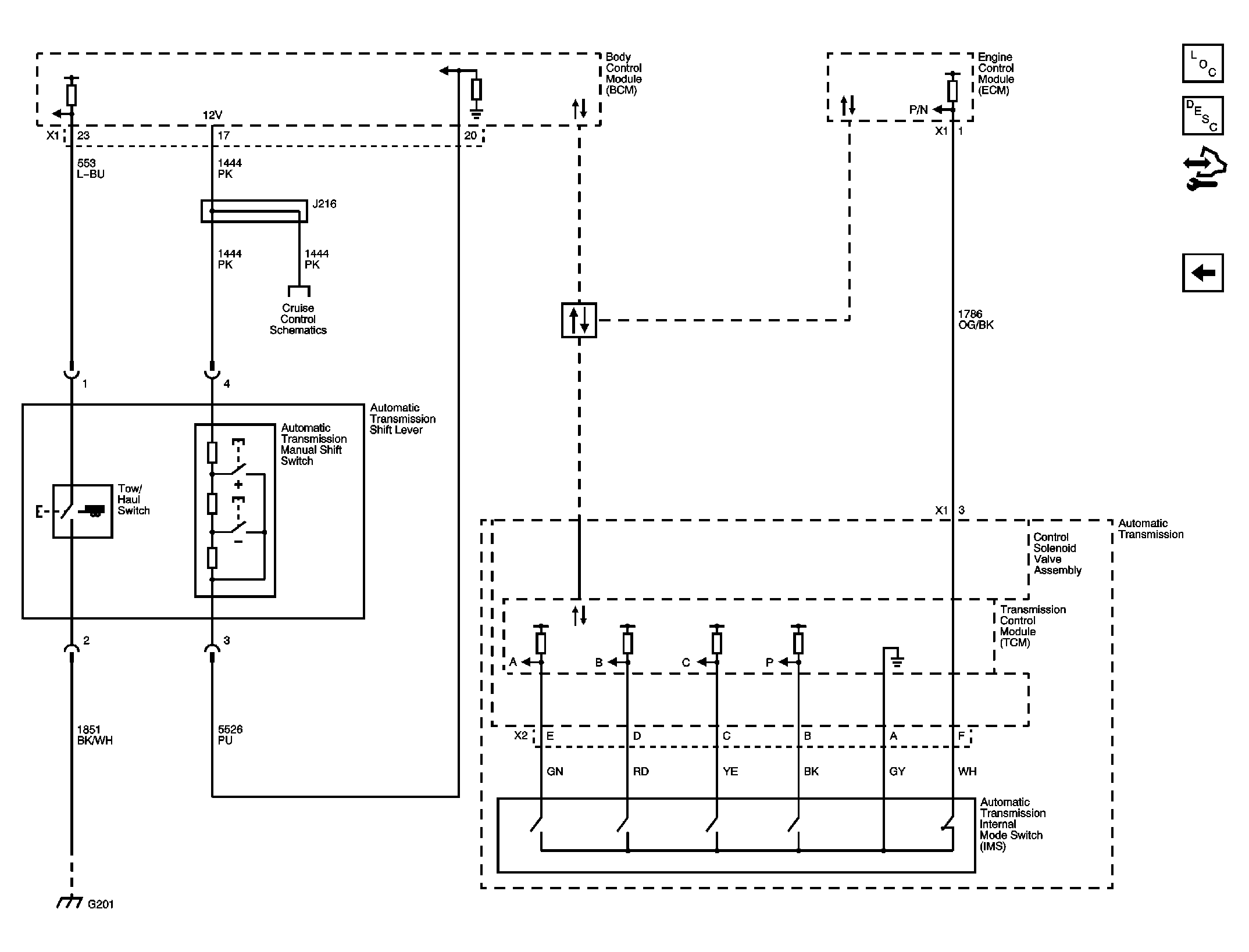

Fig 3: Transmission Range Signals and Driver Shift Request
GM2241389Courtesy of GENERAL MOTORS CORP.
