Electronic Suspension Control Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Module Power, Ground, and Serial Data
GM2241491Courtesy of GENERAL MOTORS CORP.

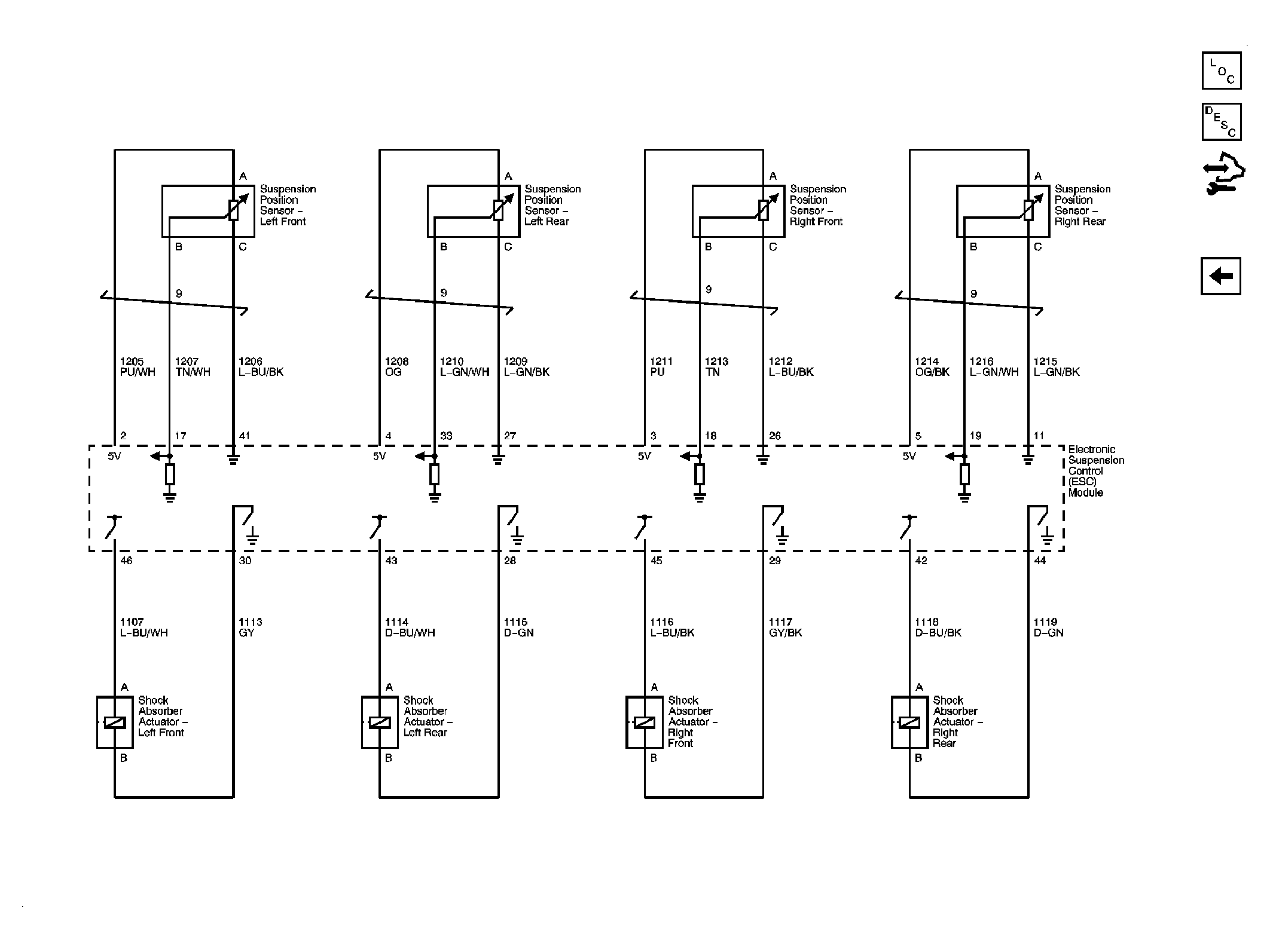

Fig 2: Position Sensors and Solenoids
GM2241493Courtesy of GENERAL MOTORS CORP.
