Hybrid Energy Storage Schematics

WARNING: This page is about a different car, the 2010 GMC Yukon, 2010 Chevrolet Tahoe, and 2010 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

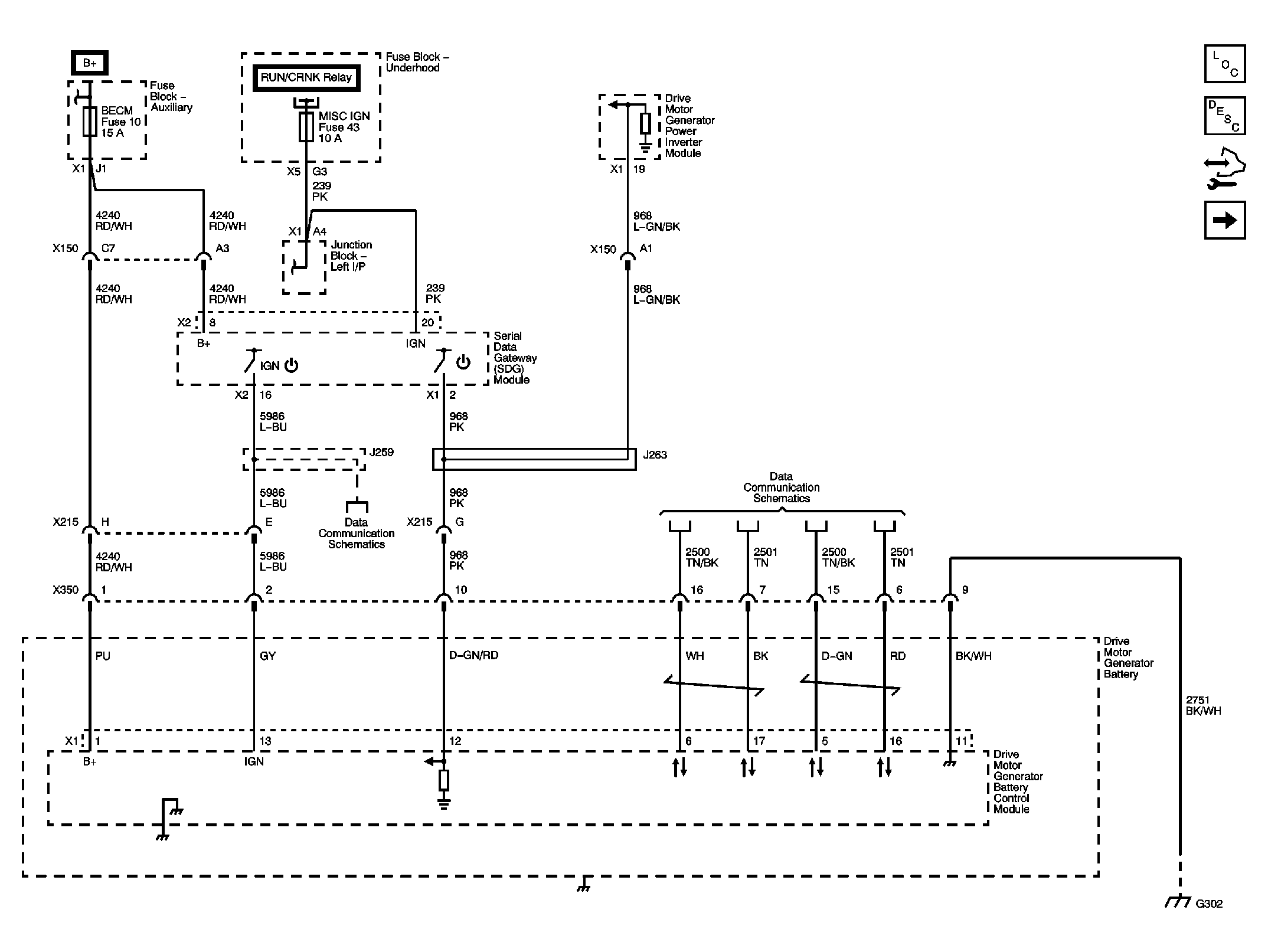

Fig 1: Power, Ground and Data Communication

Courtesy of GENERAL MOTORS CORP.

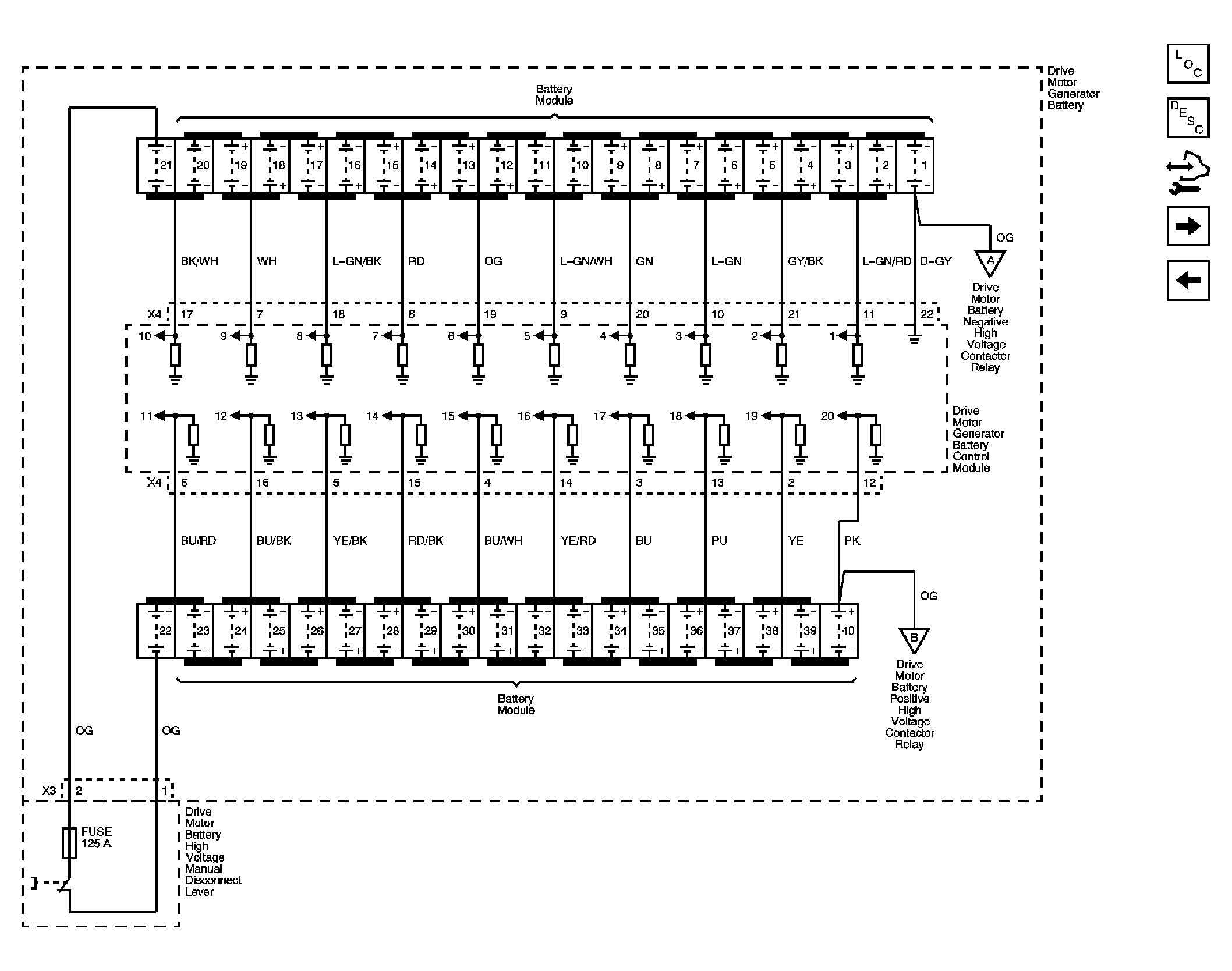

Fig 2: Battery Modules, Manual Disconnect Lever

Courtesy of GENERAL MOTORS CORP.

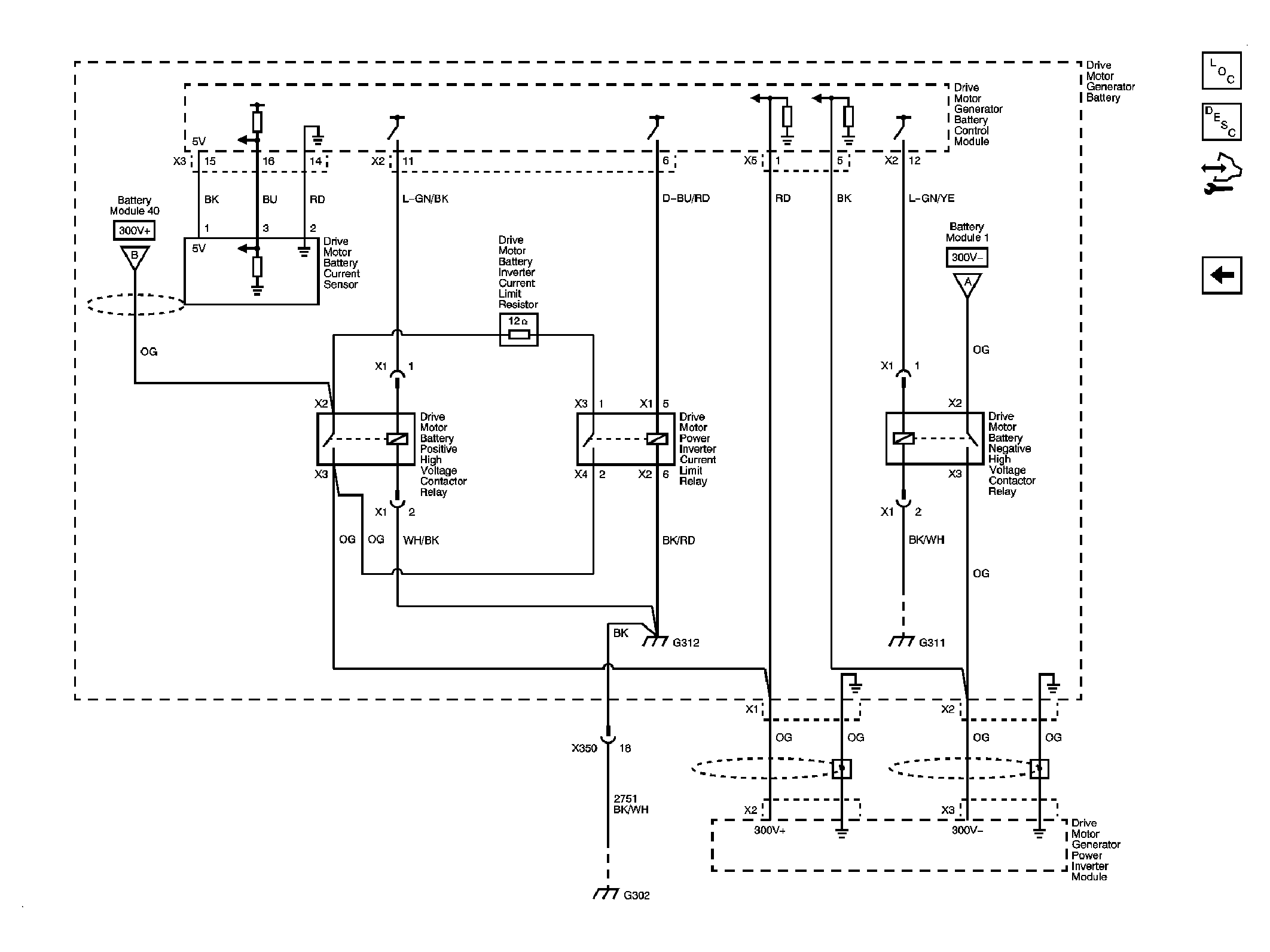

Fig 3: Main Power Contactors

Courtesy of GENERAL MOTORS CORP.
