Cigar Lighter/Power Outlet Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

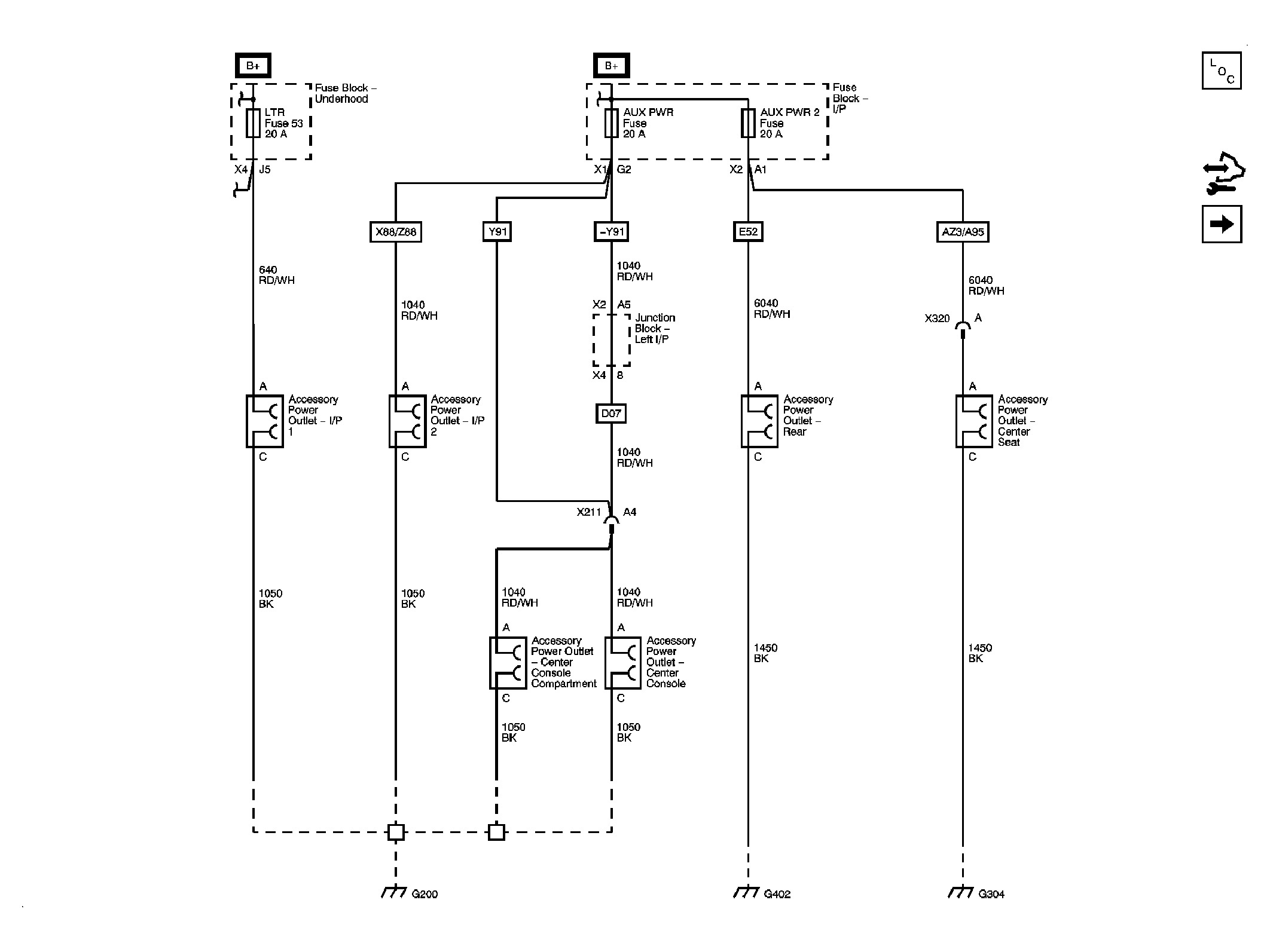

Fig 1: Accessory Power Outlet
GM2240707Courtesy of GENERAL MOTORS CORP.
Fig 2: 110-Volt AC Power Outlet (HP2)
GM2240708Courtesy of GENERAL MOTORS CORP.
