Antilock Brake System Schematics

WARNING: This page is about a different car, the 2010 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

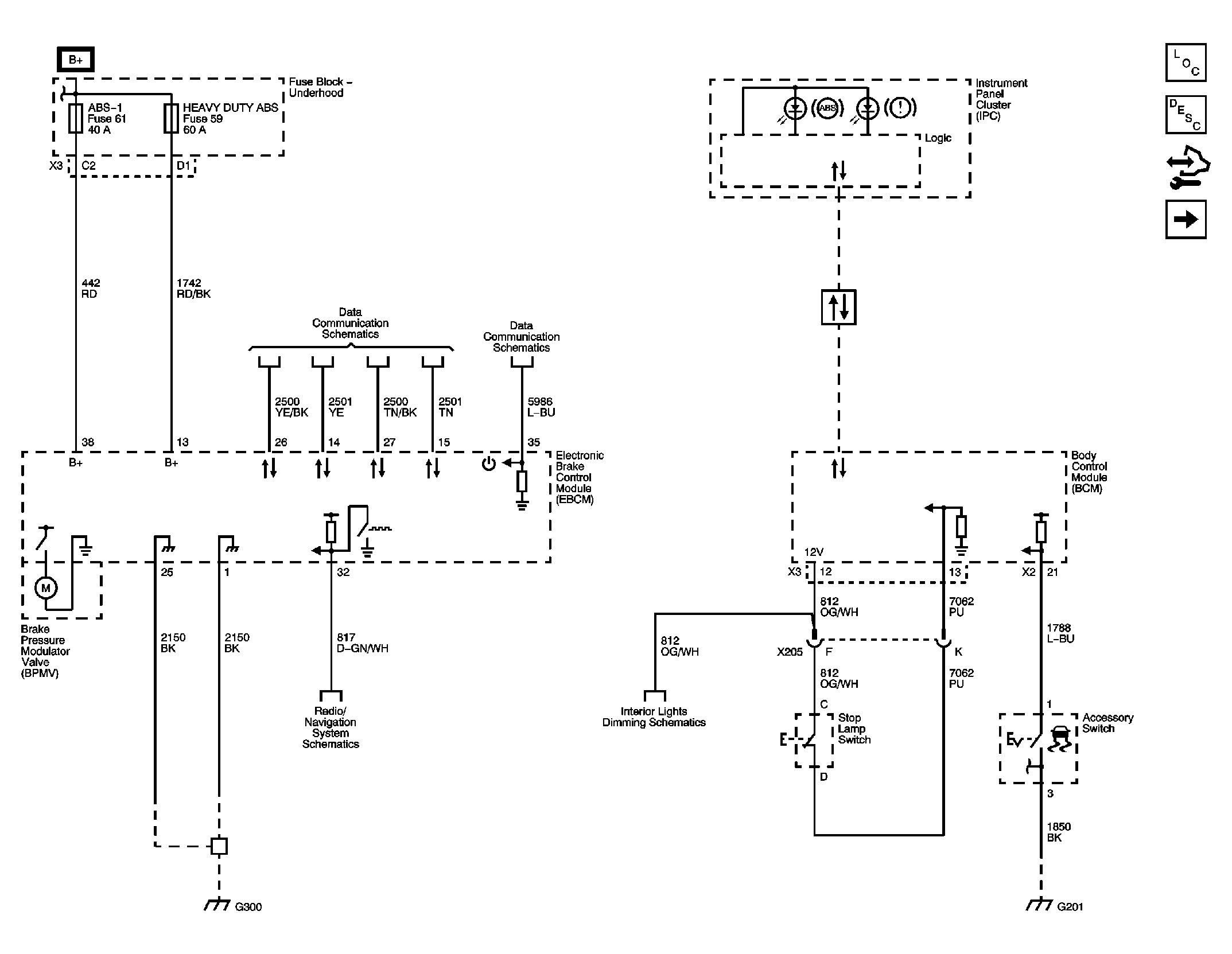

Fig 1: Module Power, Ground, and Serial Data, Pump Motor and Brake Switch

Courtesy of GENERAL MOTORS CORP.

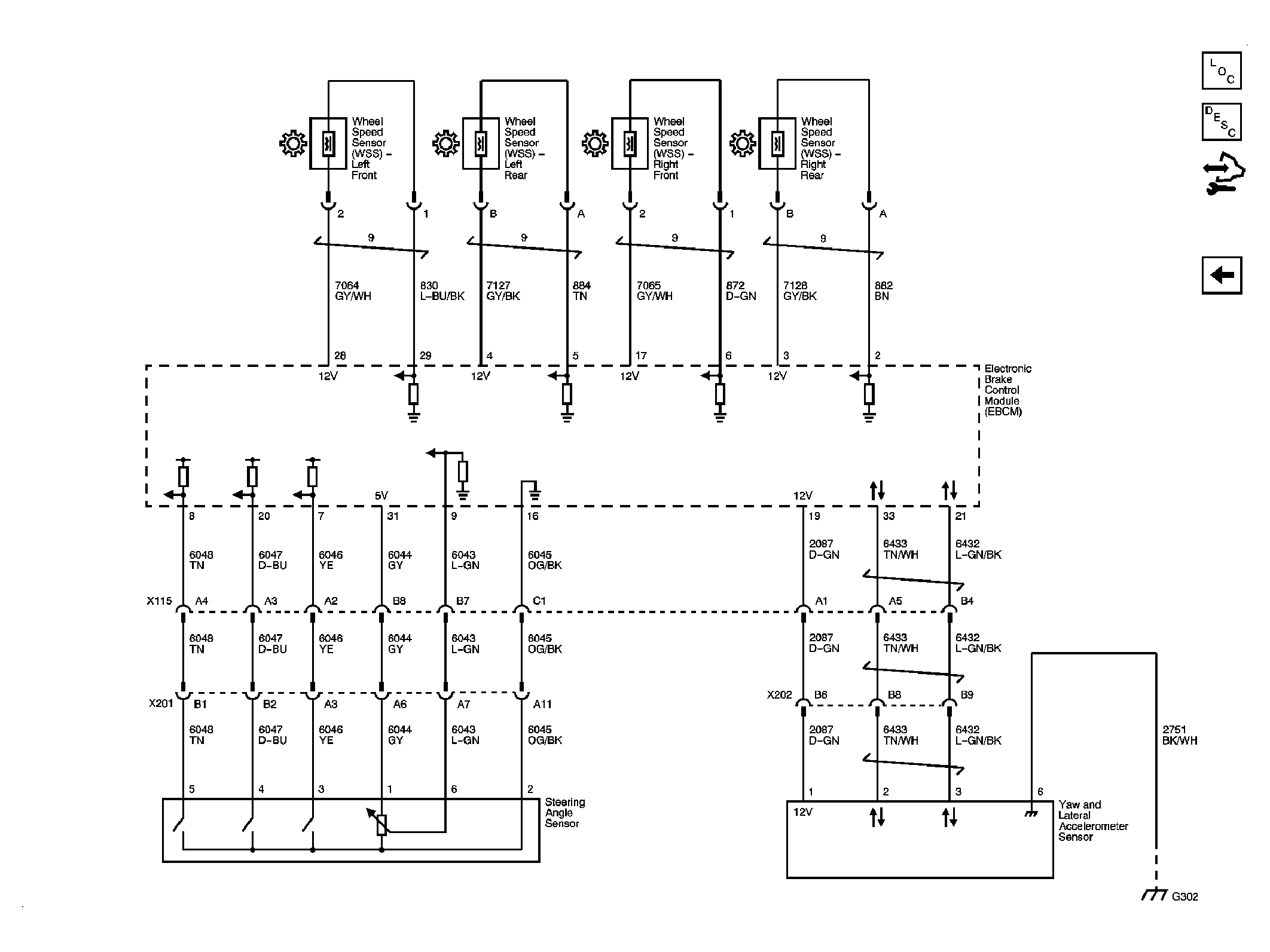

Fig 2: Sensors

Courtesy of GENERAL MOTORS CORP.
