Heated/Cooled Seat Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

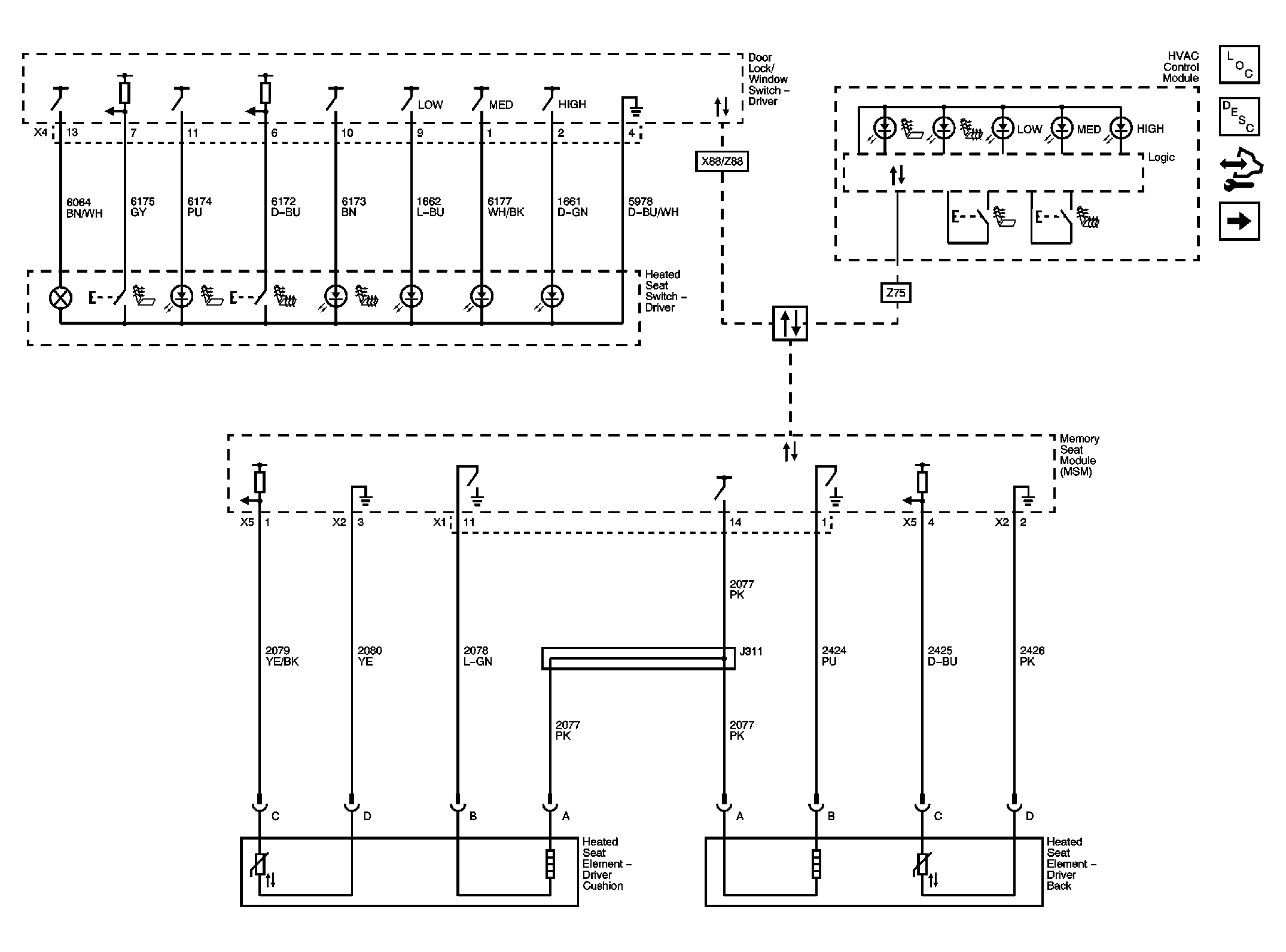

Fig 1: Heated Seat - Driver (except KB6)

GM2241571

Courtesy of GENERAL MOTORS CORP.

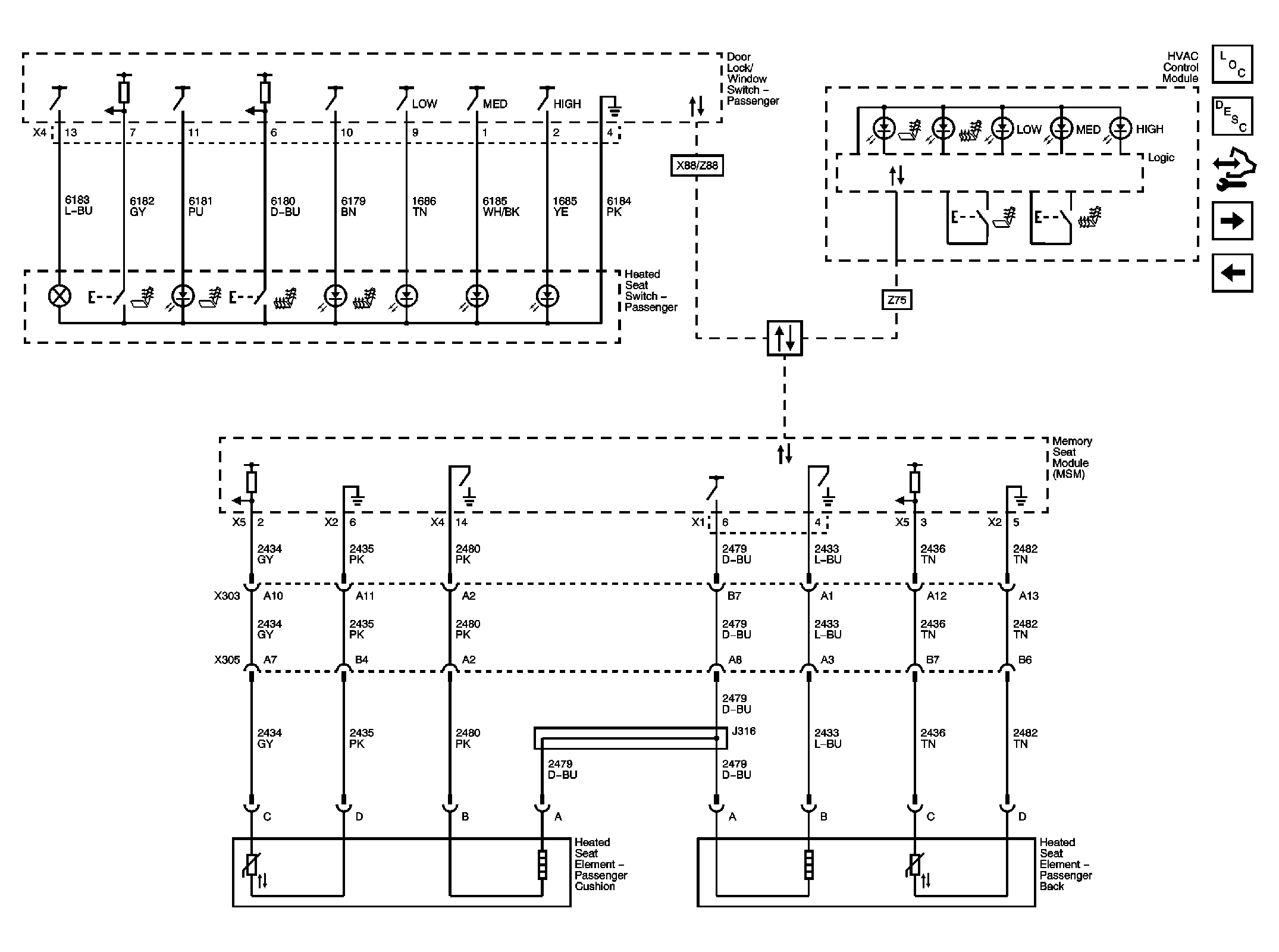

Fig 2: Heated Seat - Passenger (except KB6)

GM2241573

Courtesy of GENERAL MOTORS CORP.

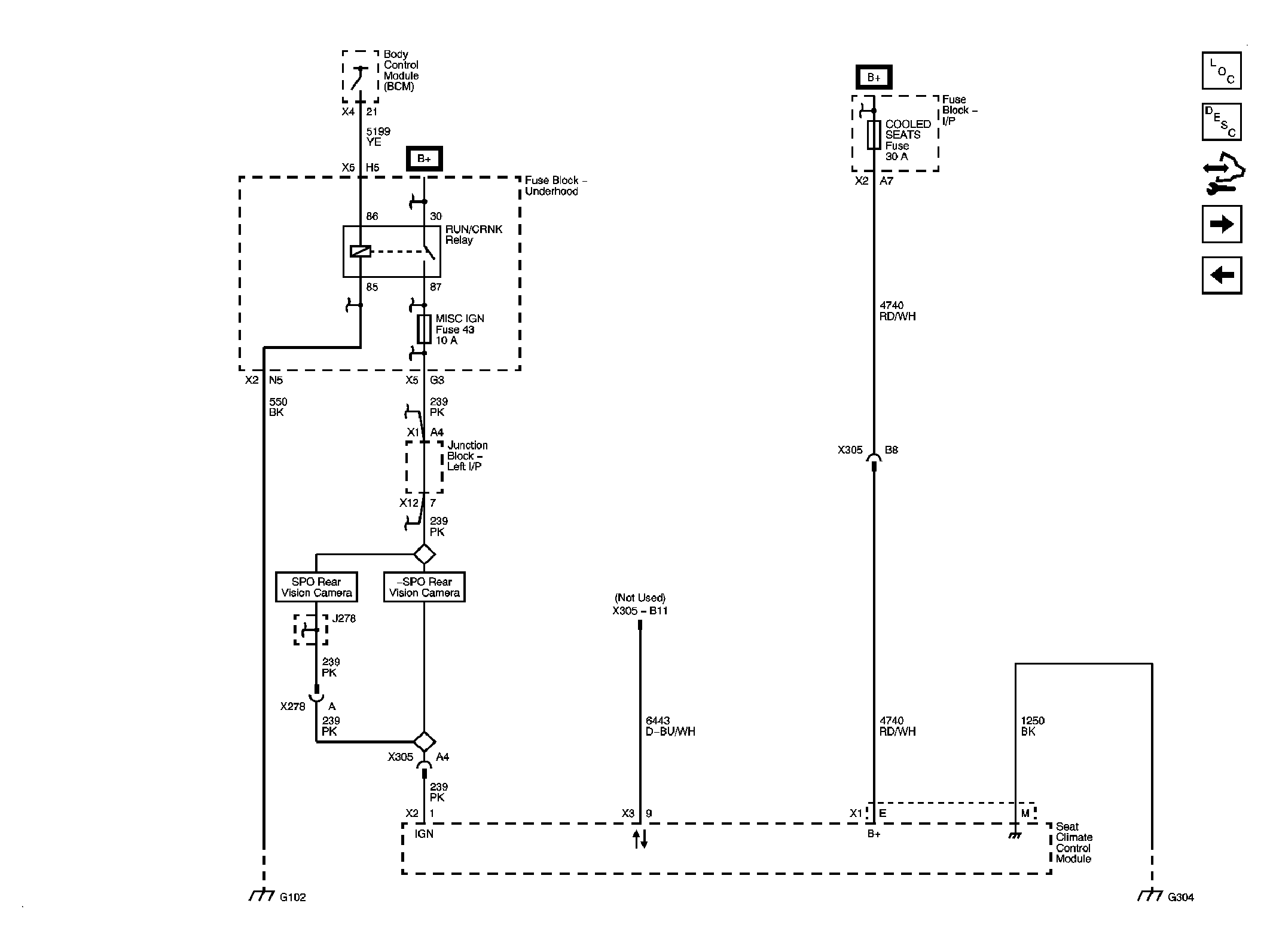

Fig 3: Heated/Cooled Seat Module Power and Ground (KB6)

GM2241574

Courtesy of GENERAL MOTORS CORP.

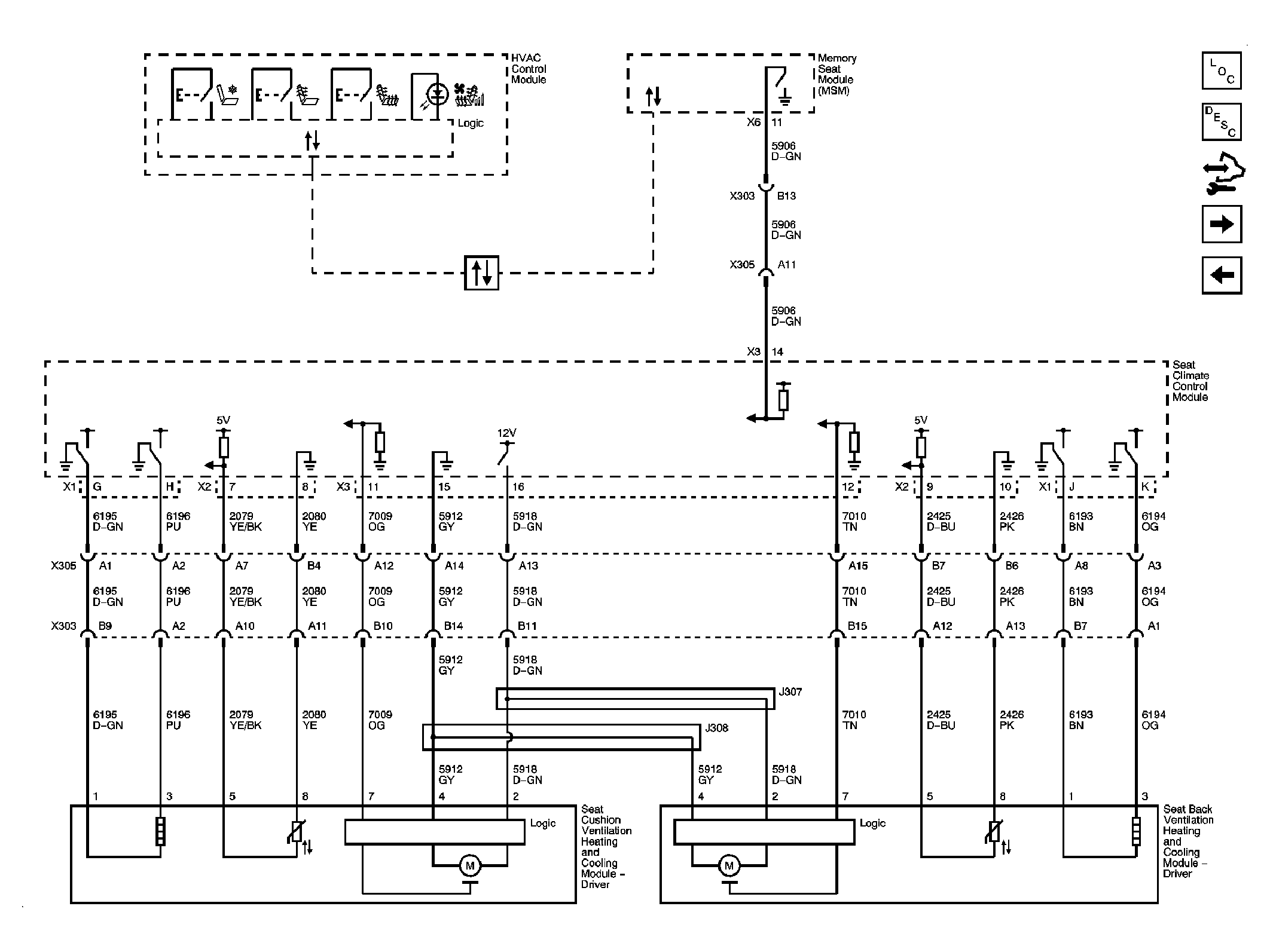

Fig 4: Heated/Cooled Seat - Driver (KB6)

GM2241575

Courtesy of GENERAL MOTORS CORP.

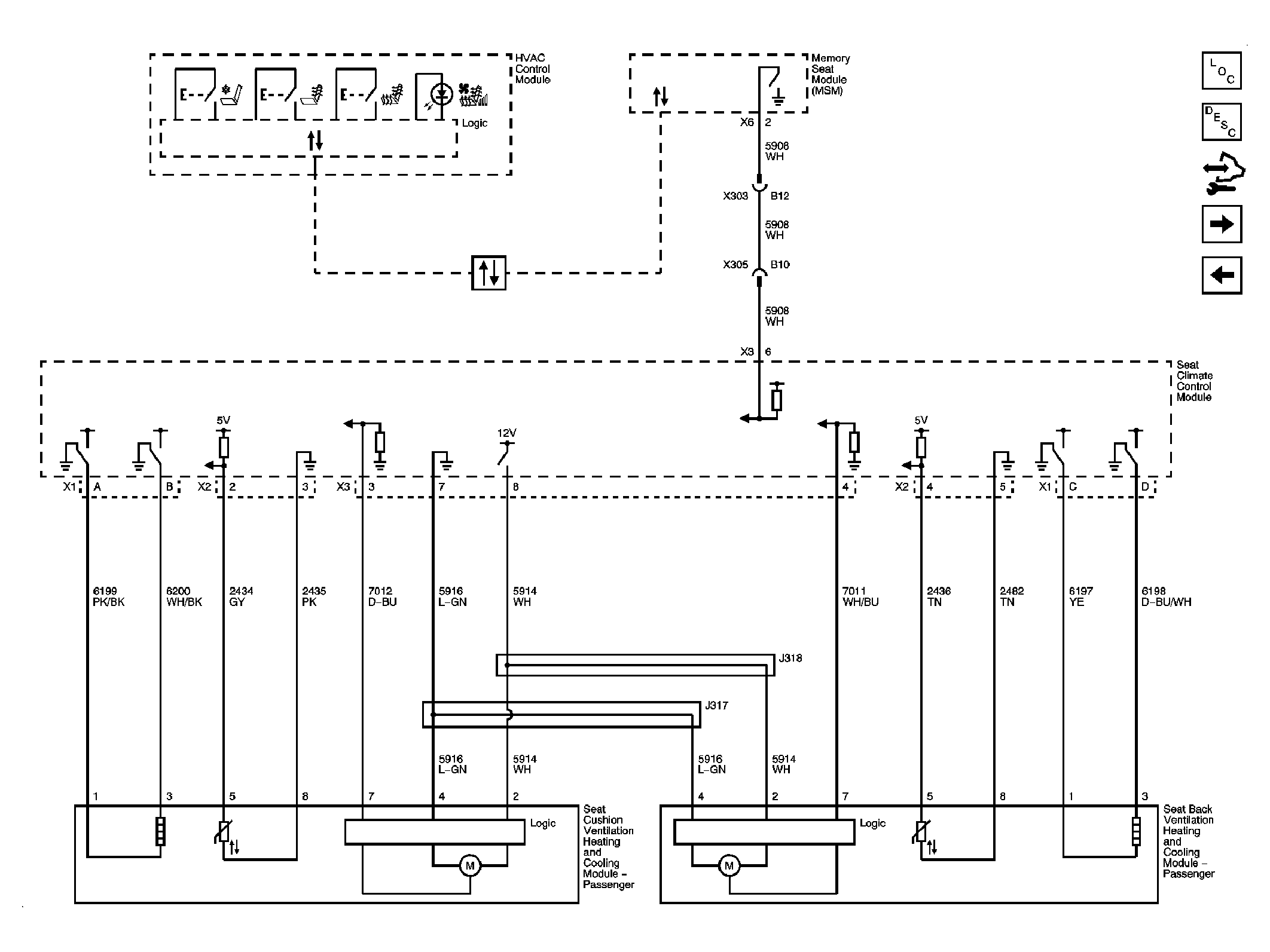

Fig 5: Heated/Cooled Seat - Passenger (KB6)

GM2241576

Courtesy of GENERAL MOTORS CORP.

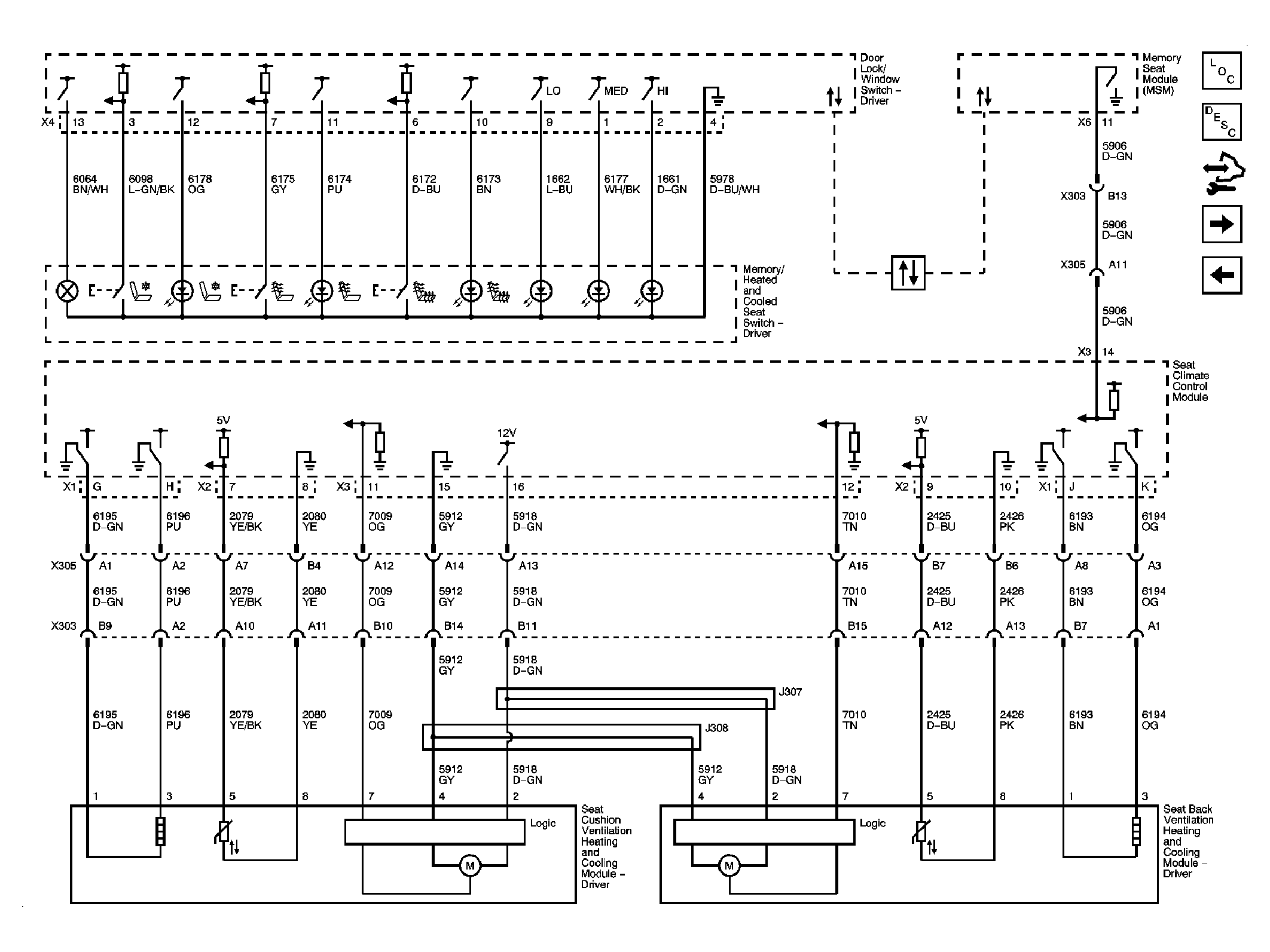

Fig 6: Heated/Cooled Seat - Driver KB6 (X88 or Z88)

GM2241577

Courtesy of GENERAL MOTORS CORP.

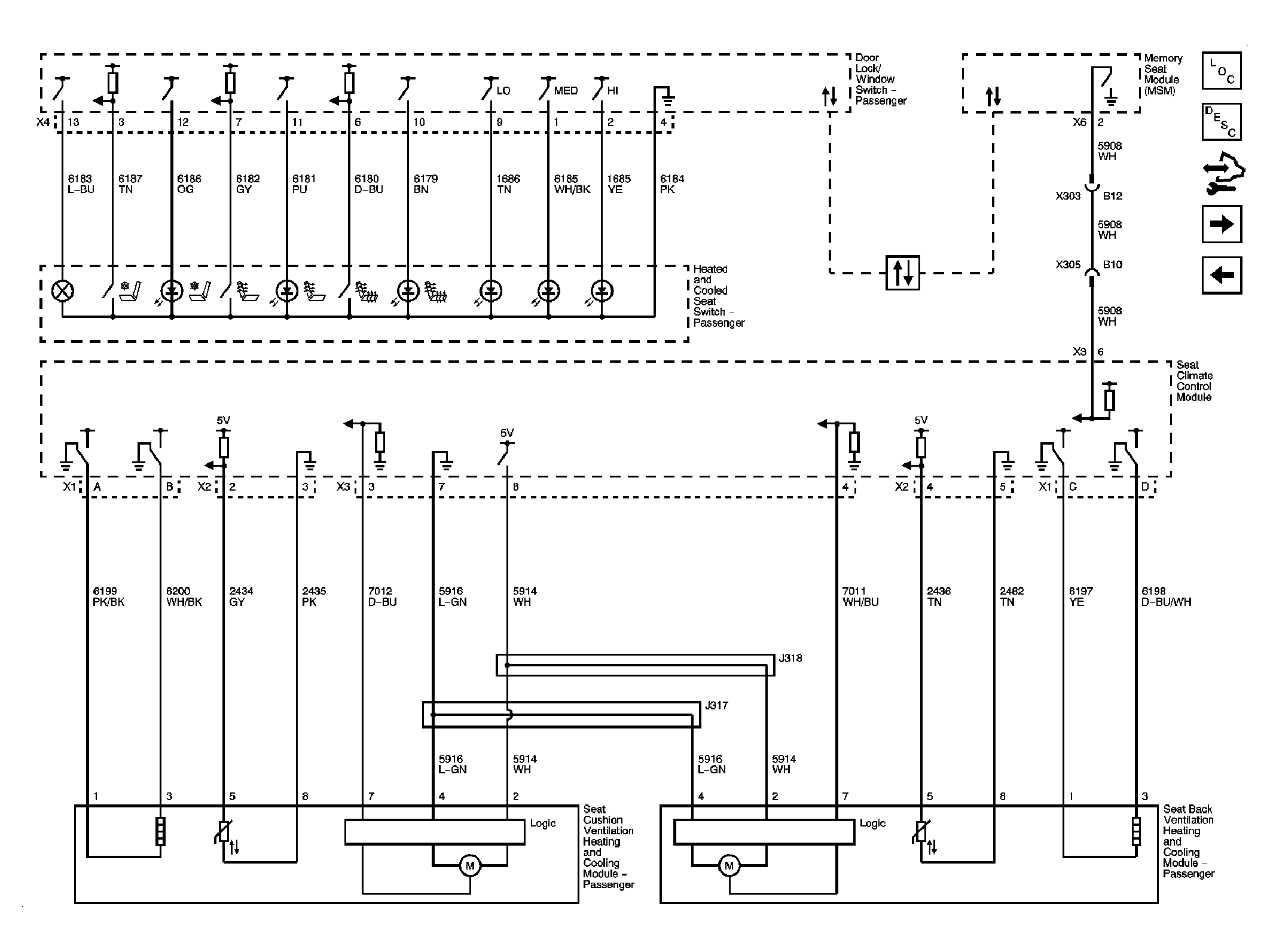

Fig 7: Heated/Cooled Seat - Passenger KB6 (X88 or Z88)

GM2241578

Courtesy of GENERAL MOTORS CORP.

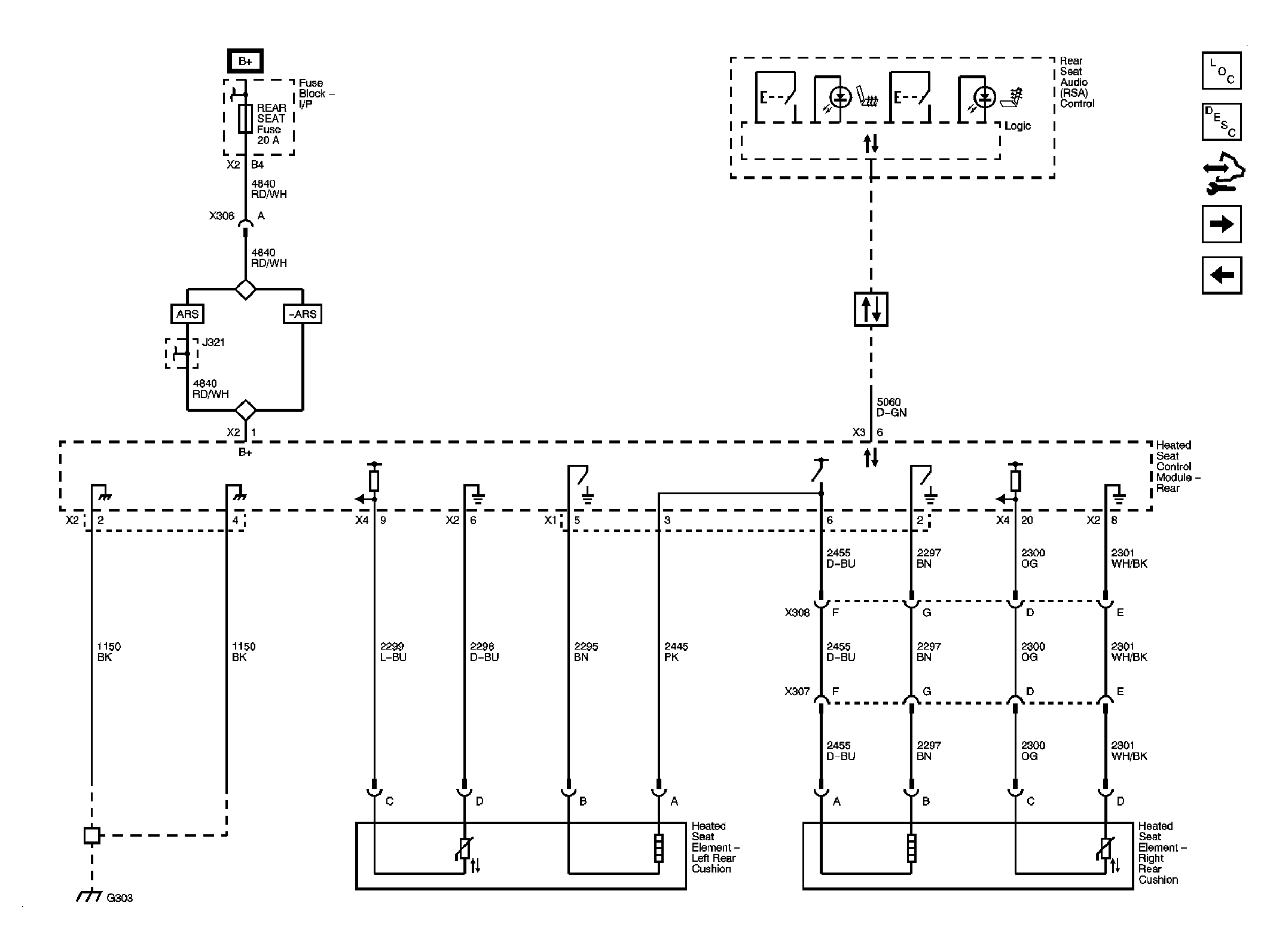

Fig 8: Heated Seat - Rear (KA6)

GM2241579

Courtesy of GENERAL MOTORS CORP.

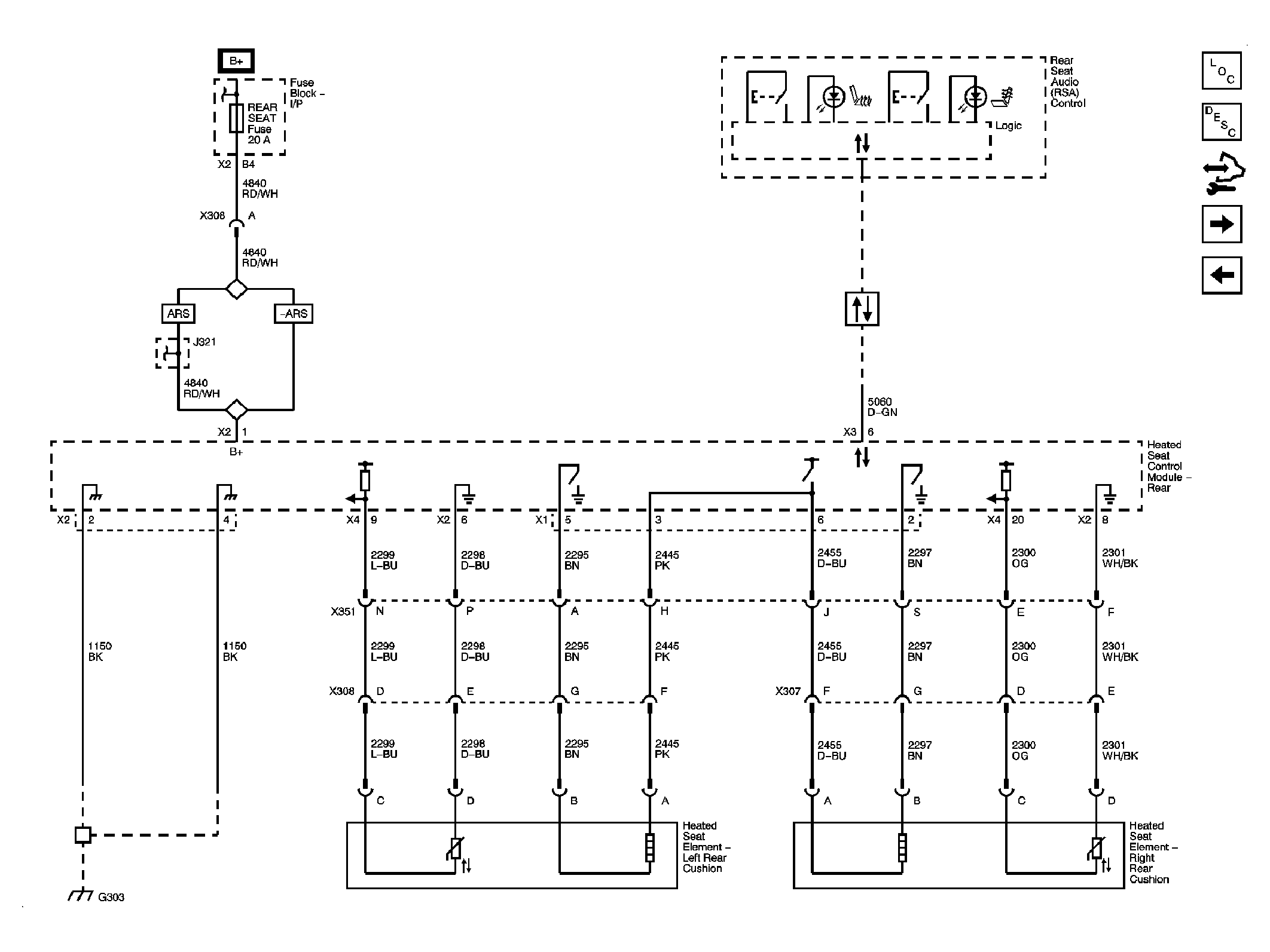

Fig 9: Heated Seat - Rear (KA6 with HP2)

GM2241580

Courtesy of GENERAL MOTORS CORP.

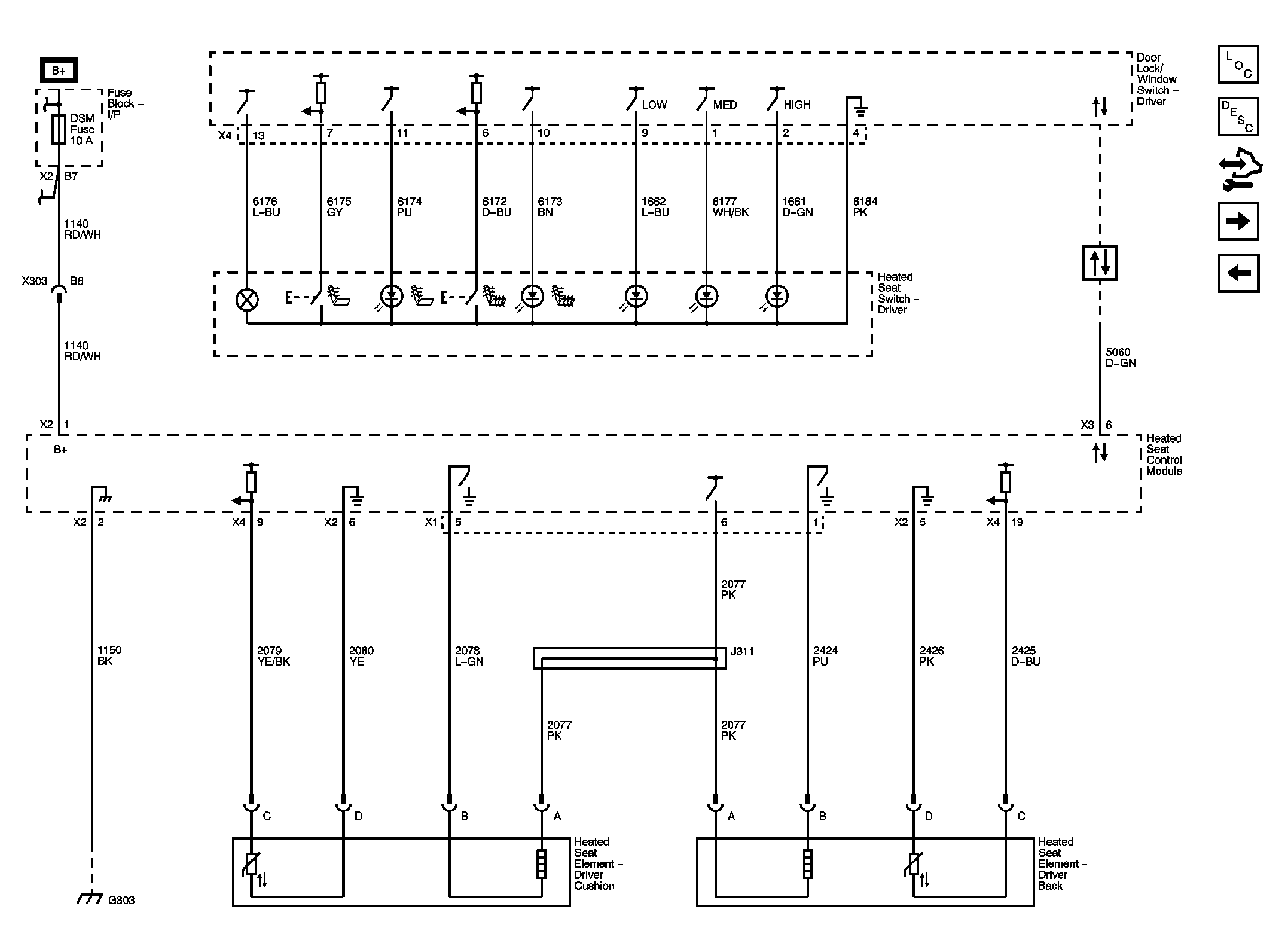

Fig 10: Heated Seat - Driver (HP2)

GM2241582

Courtesy of GENERAL MOTORS CORP.

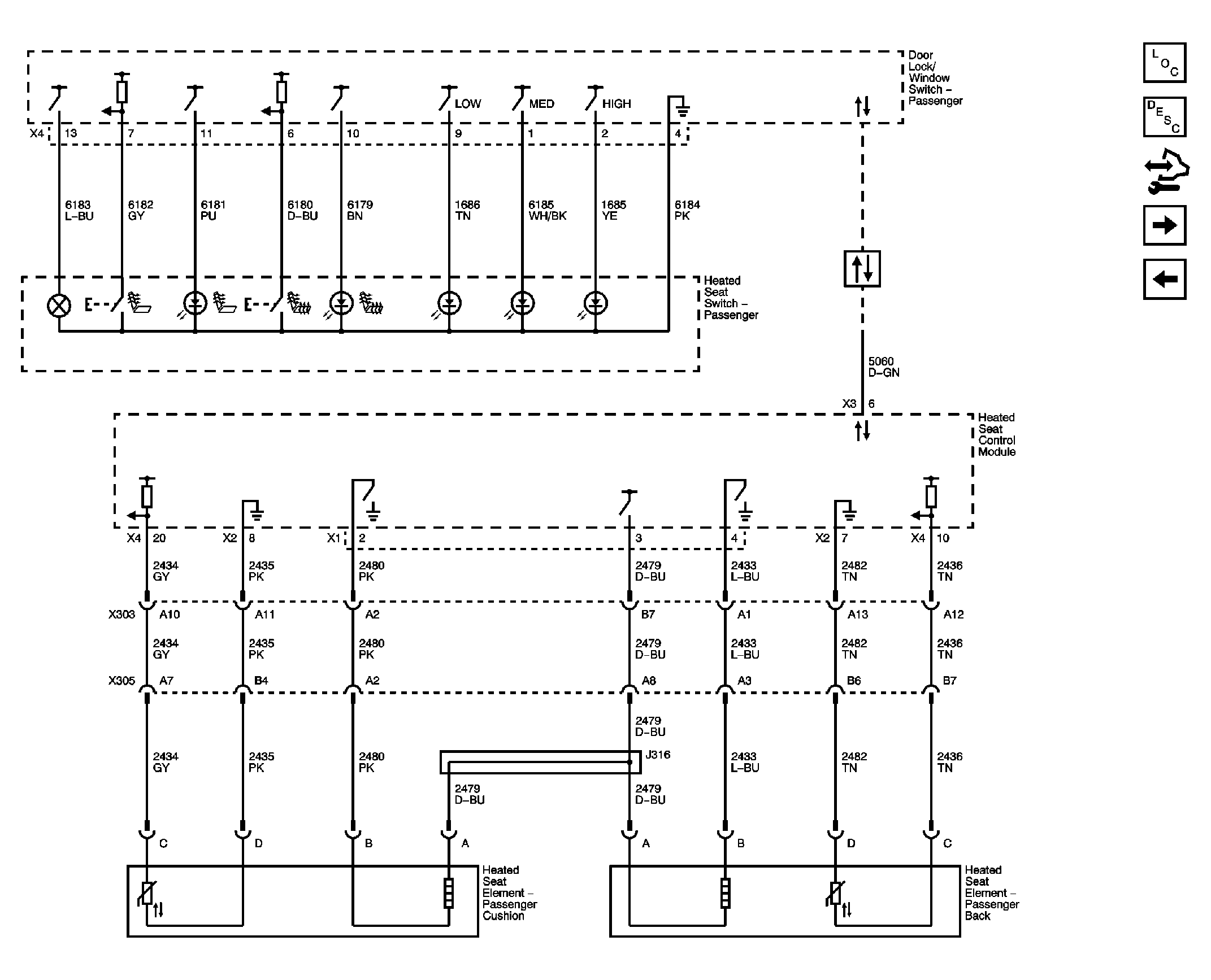

Fig 11: Heated Seat - Passenger (HP2)

GM2241585

Courtesy of GENERAL MOTORS CORP.
