Electronic Suspension Control Schematics

Fig 1: Module Power, Ground, and Serial Data

GM2075205

Courtesy of GENERAL MOTORS CORP.

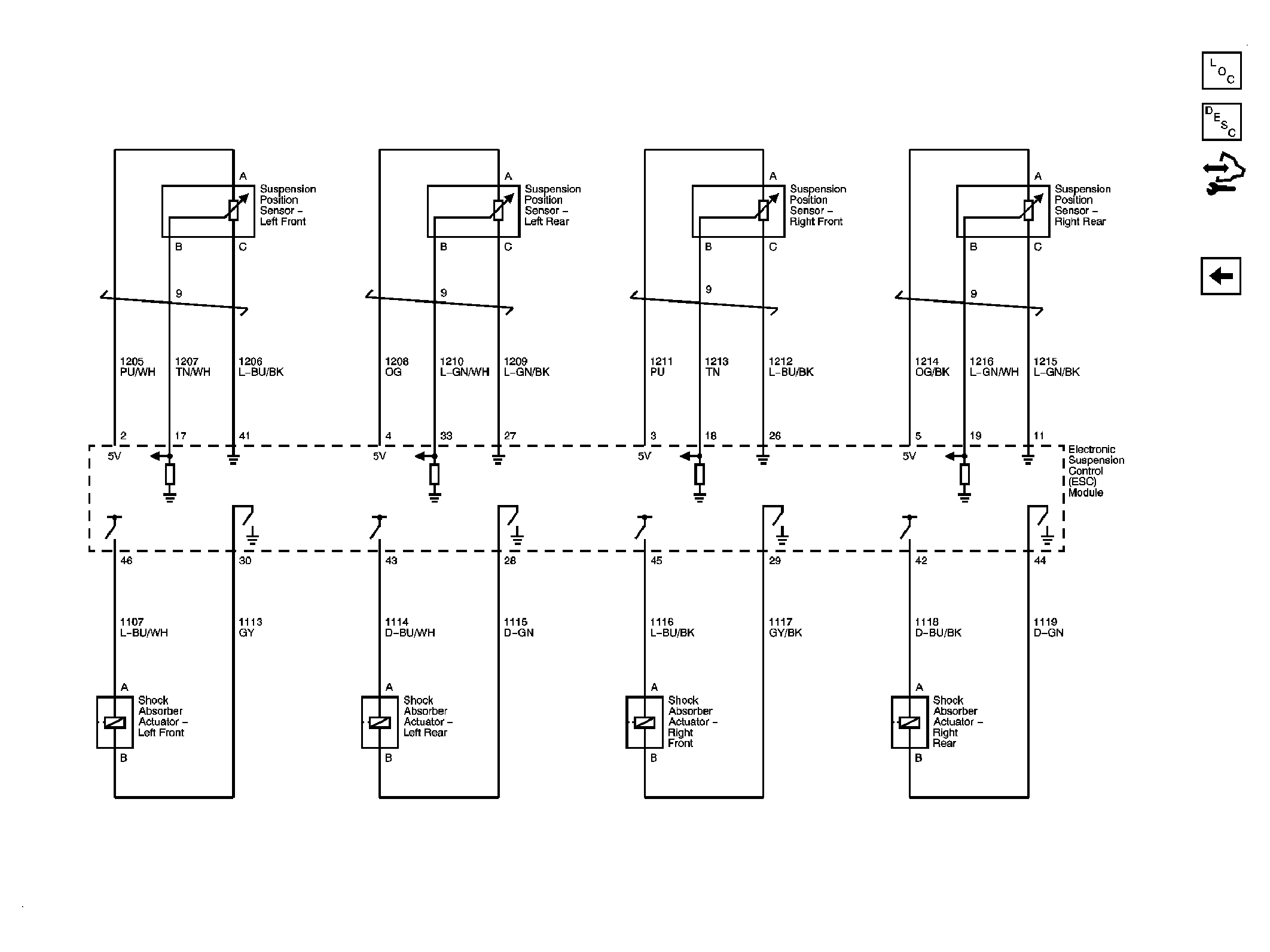

Fig 2: Position Sensors and Solenoids

GM2075207

Courtesy of GENERAL MOTORS CORP.
