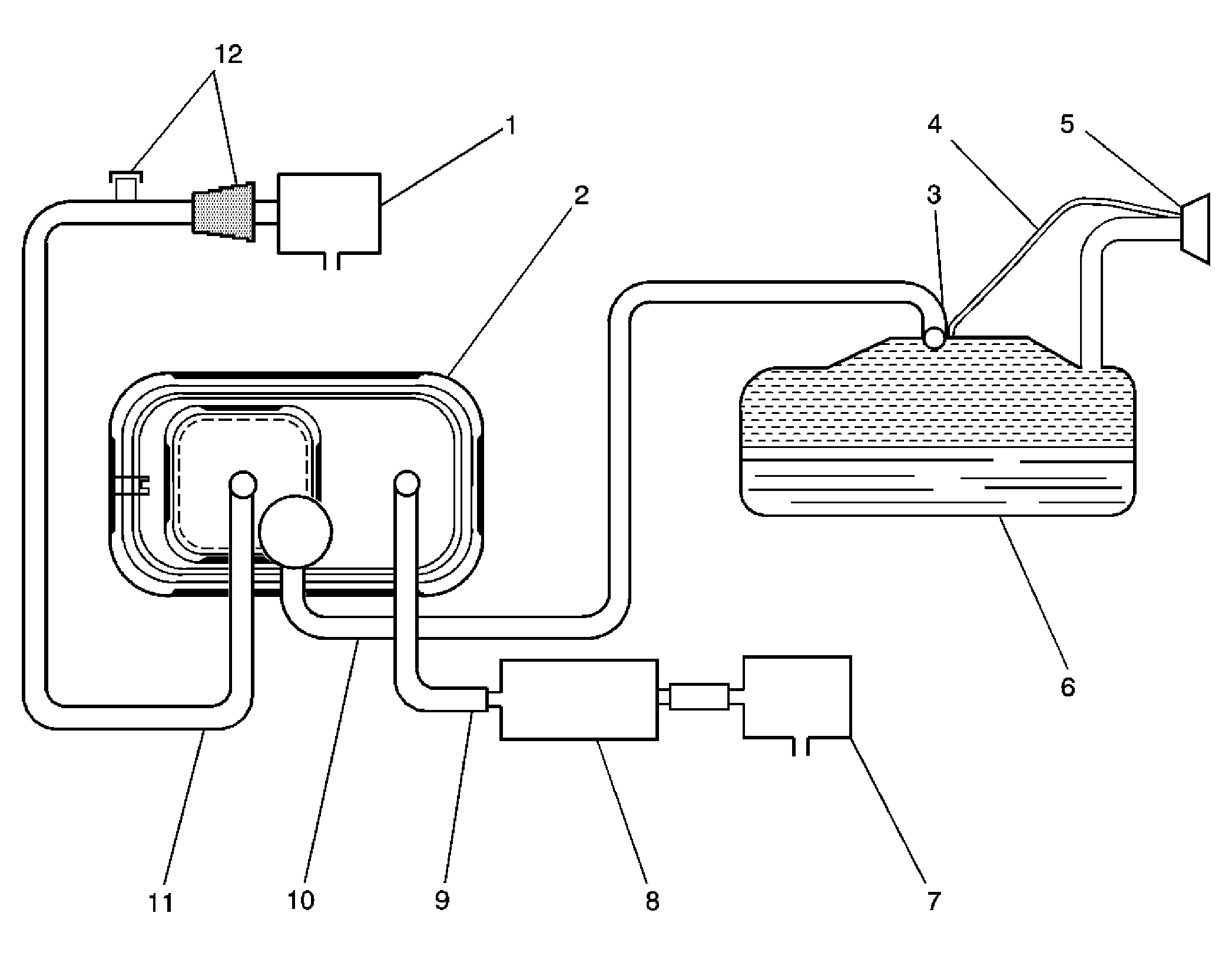

Evaporative Emissions Hose Routing Diagram
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | EVAP Canister Purge Solenoid Valve |
| 2 | EVAP Canister |
| 3 | Fluid Level Vent Valve |
| 4 | Vapor Recirculation tube |
| 5 | Fuel Fill Neck and Fill Cap |
| 6 | Fuel Tank |
| 7 | EVAP Canister Vent Valve |
| 8 | Auxiliary EVAP Canister |
| 9 | Vent Hose/Pipe |
| 10 | EVAP Vapor tube |
| 11 | EVAP Purge tube |
| 12 | EVAP Service Port or Service Access Connector |
