Section 6 (Hybrid Energy Storage System)
>>
Schematic and Routing Diagrams
>>
Hybrid Energy Storage Schematics
Hybrid Energy Storage Schematics
WARNING:
This page is about a different variant/trim than selected.

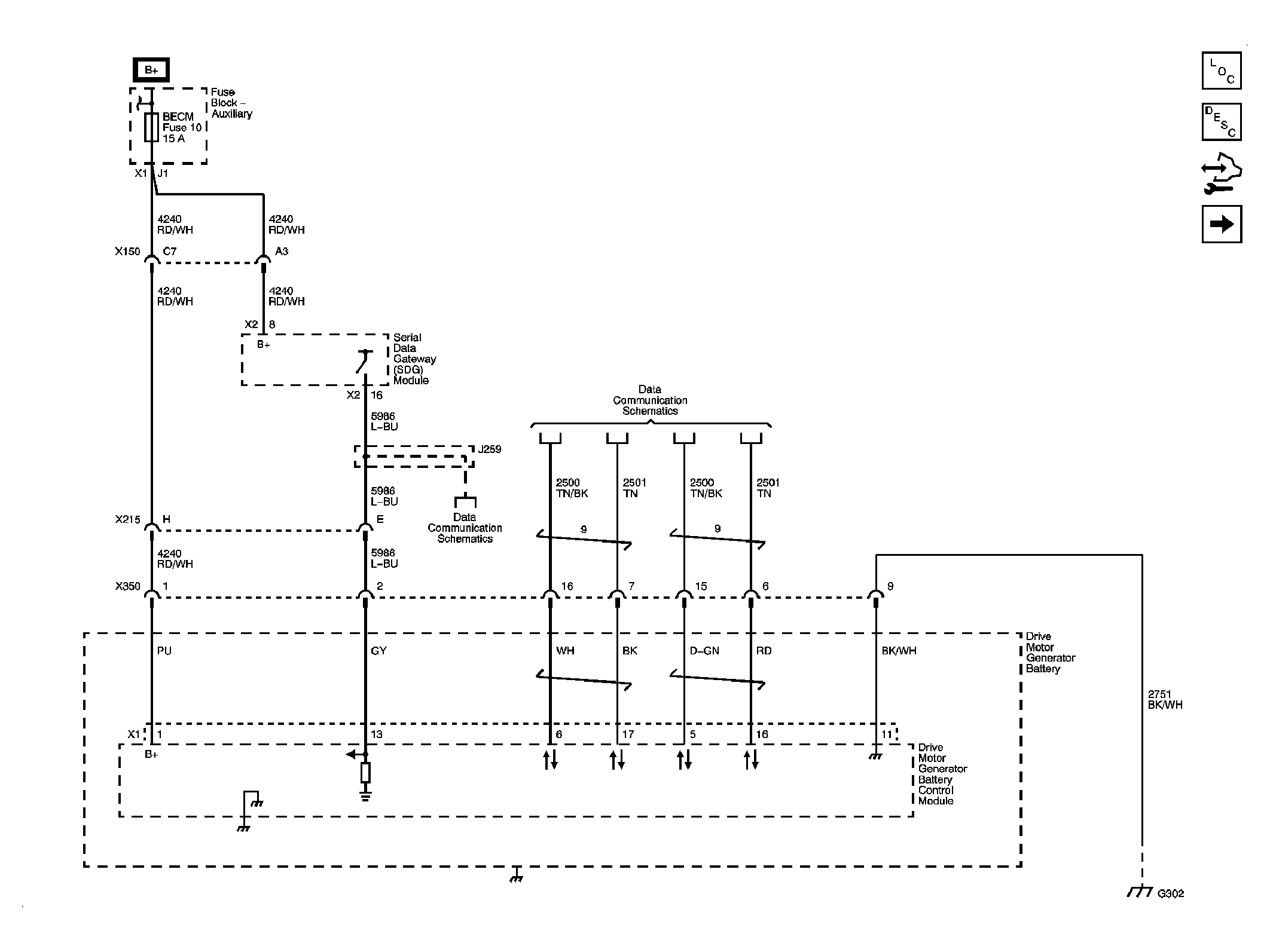

Fig 1: Power, Ground and Data Communication
Courtesy of GENERAL MOTORS CORP.

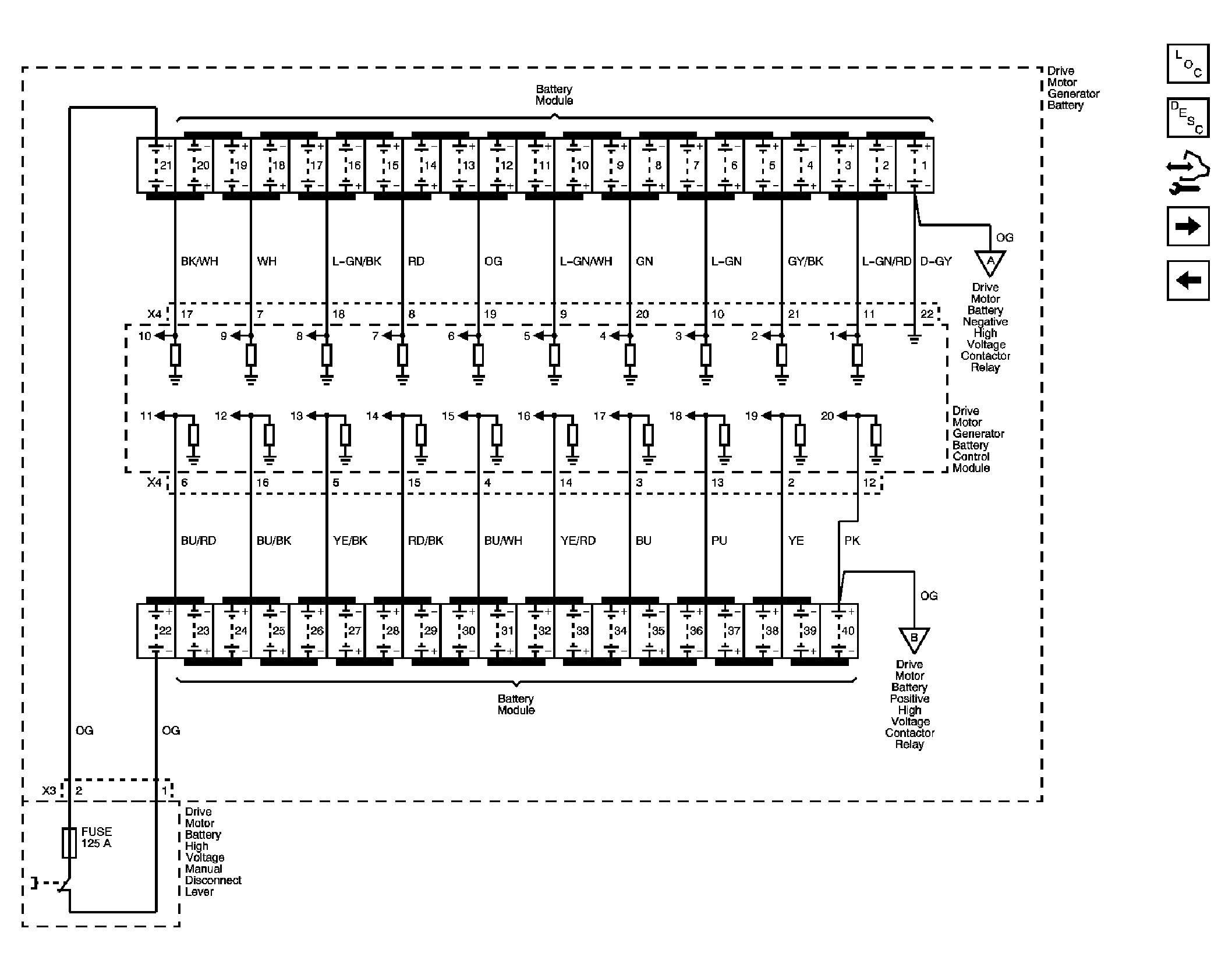

Fig 2: Battery Modules, Manual Disconnect Lever
Courtesy of GENERAL MOTORS CORP.

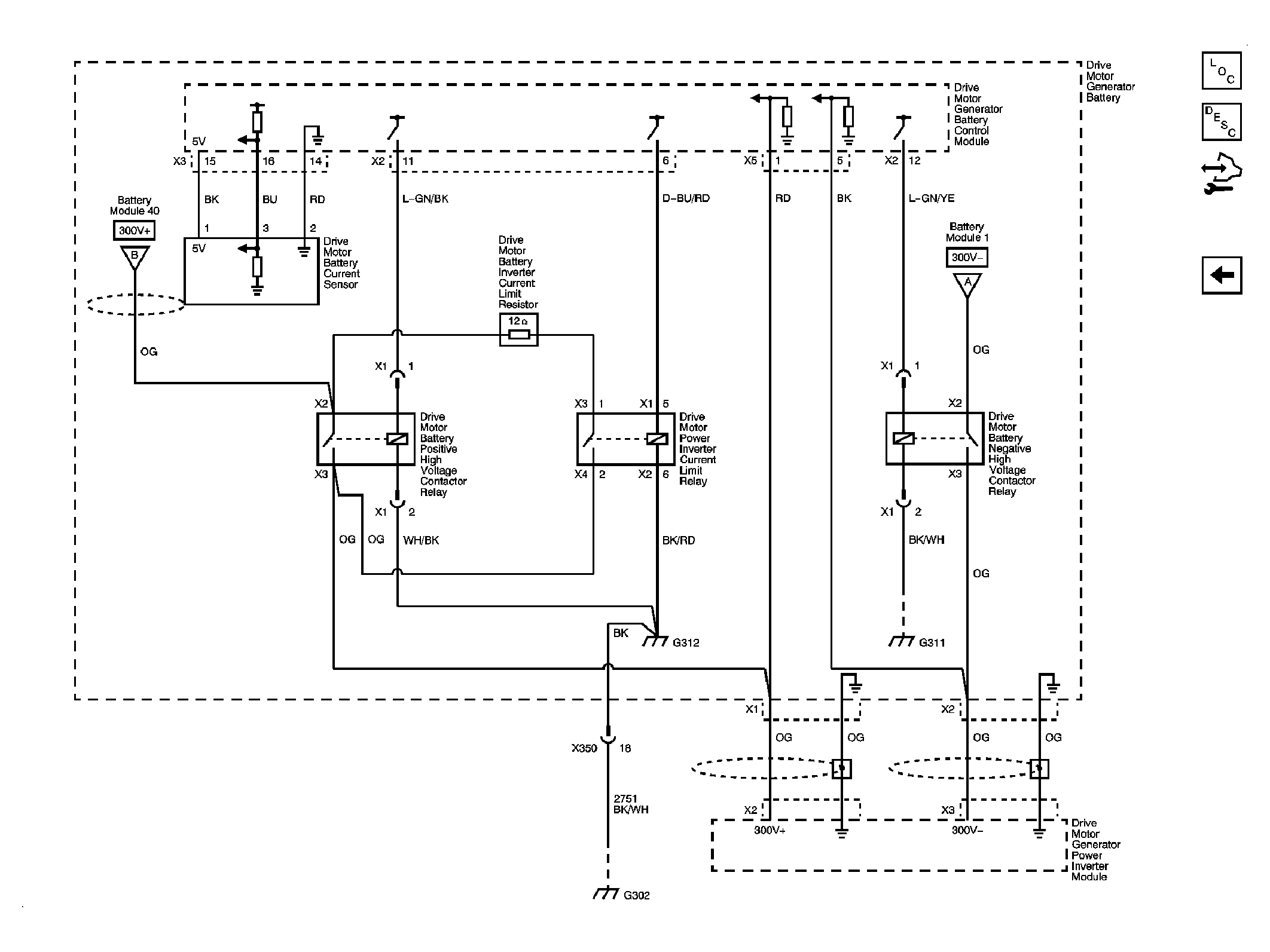

Fig 3: Main Power Contactors
Courtesy of GENERAL MOTORS CORP.
