Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

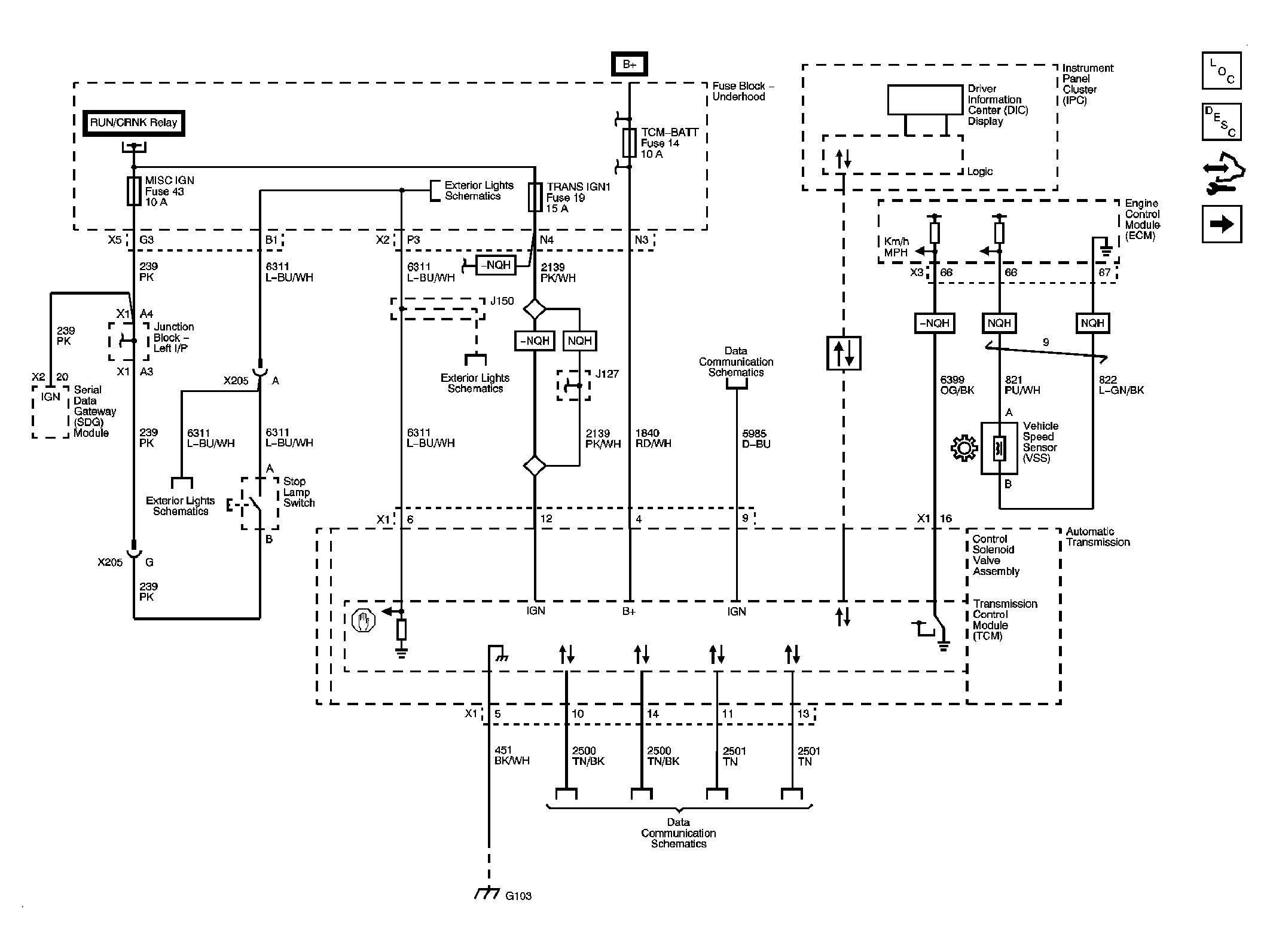

Fig 1: Module Power, Ground, Serial Data, and Stop Lamp Switch
GM2075760Courtesy of GENERAL MOTORS CORP.

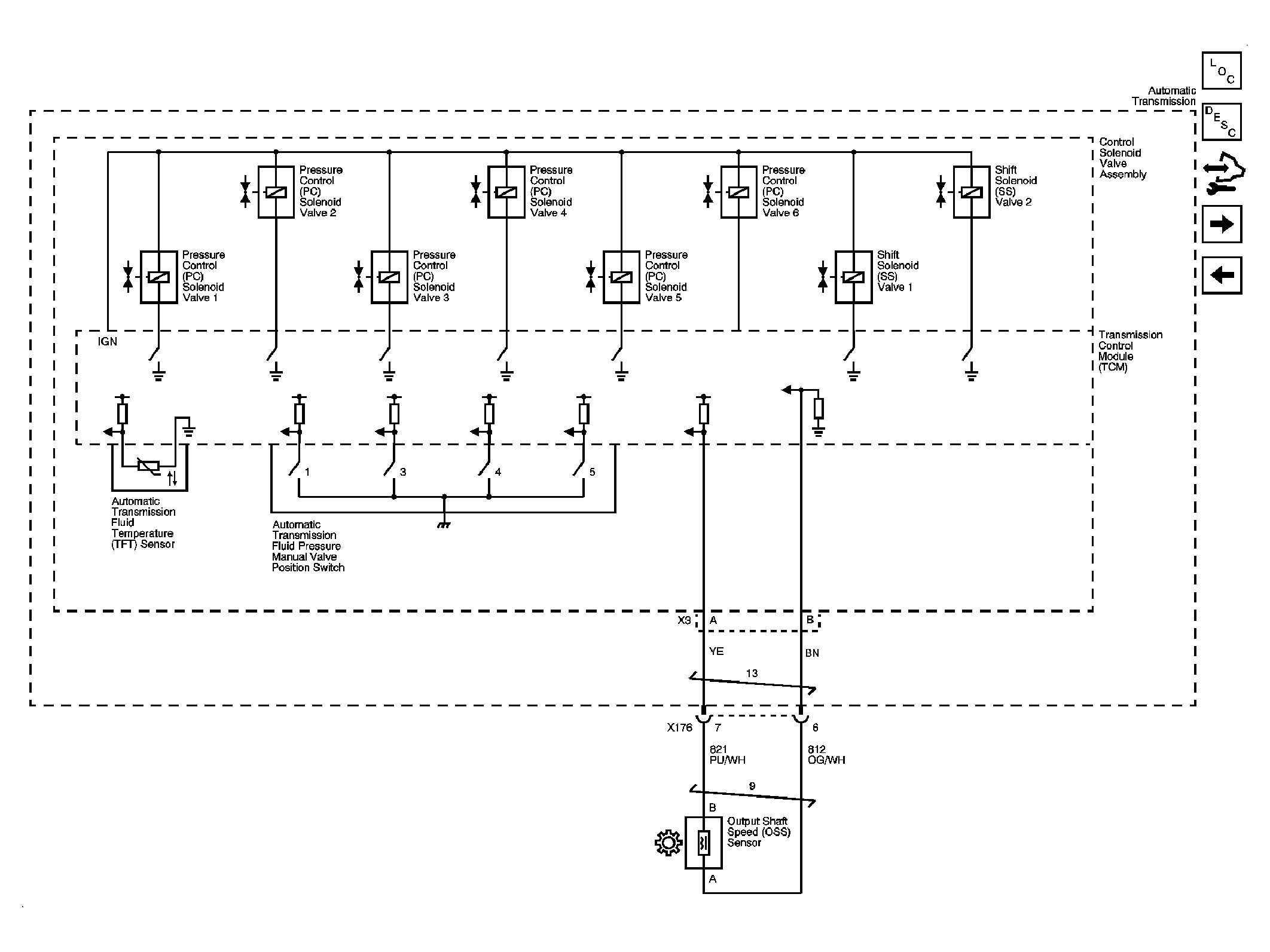

Fig 2: Pressure Controls - 1 of 2 and Shift Controls
GM2075762Courtesy of GENERAL MOTORS CORP.

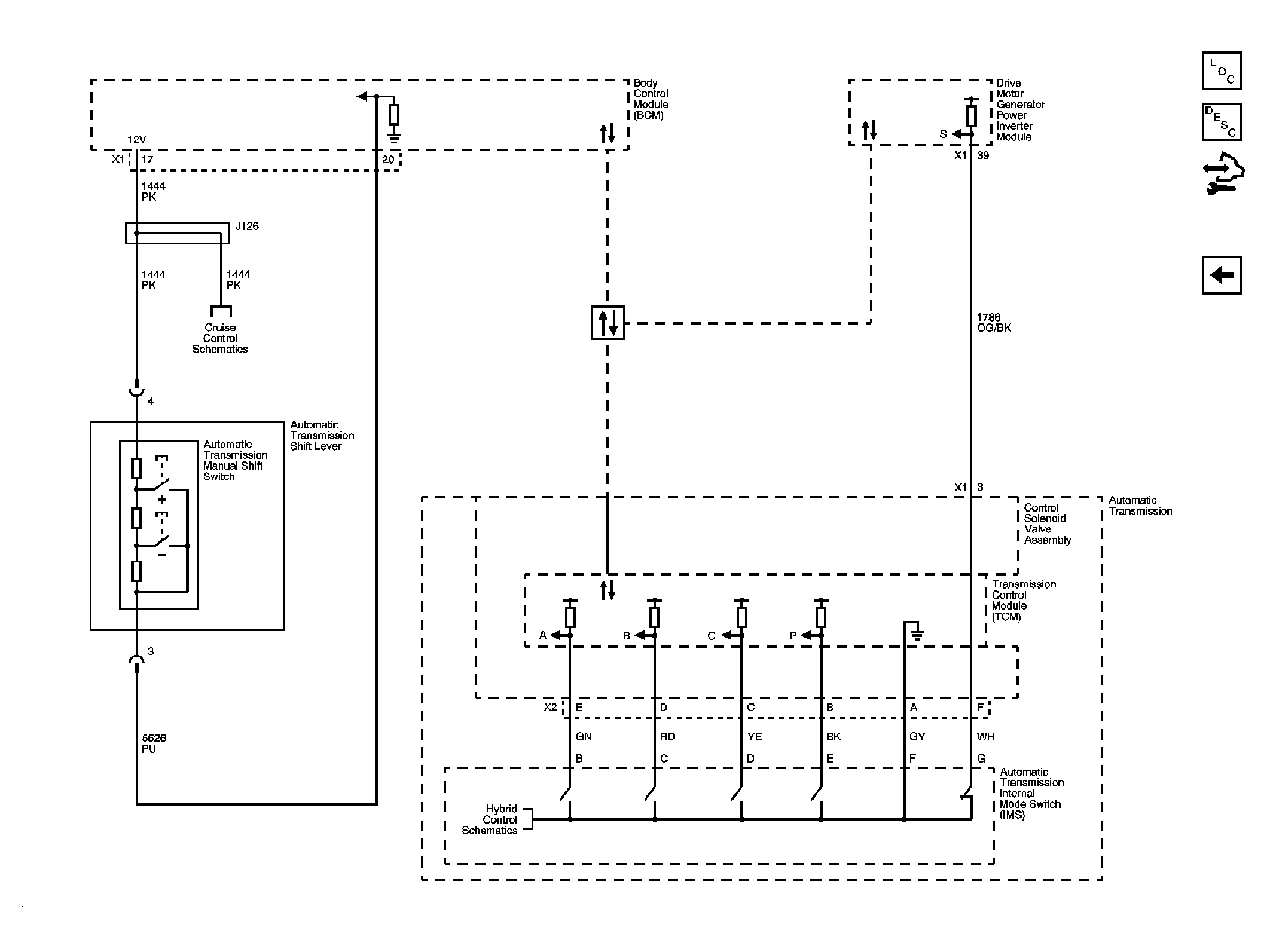

Fig 3: Transmission Range Signals
GM2075766Courtesy of GENERAL MOTORS CORP.
