Hybrid Controls Schematics

WARNING: This page is about a different variant/trim than selected.

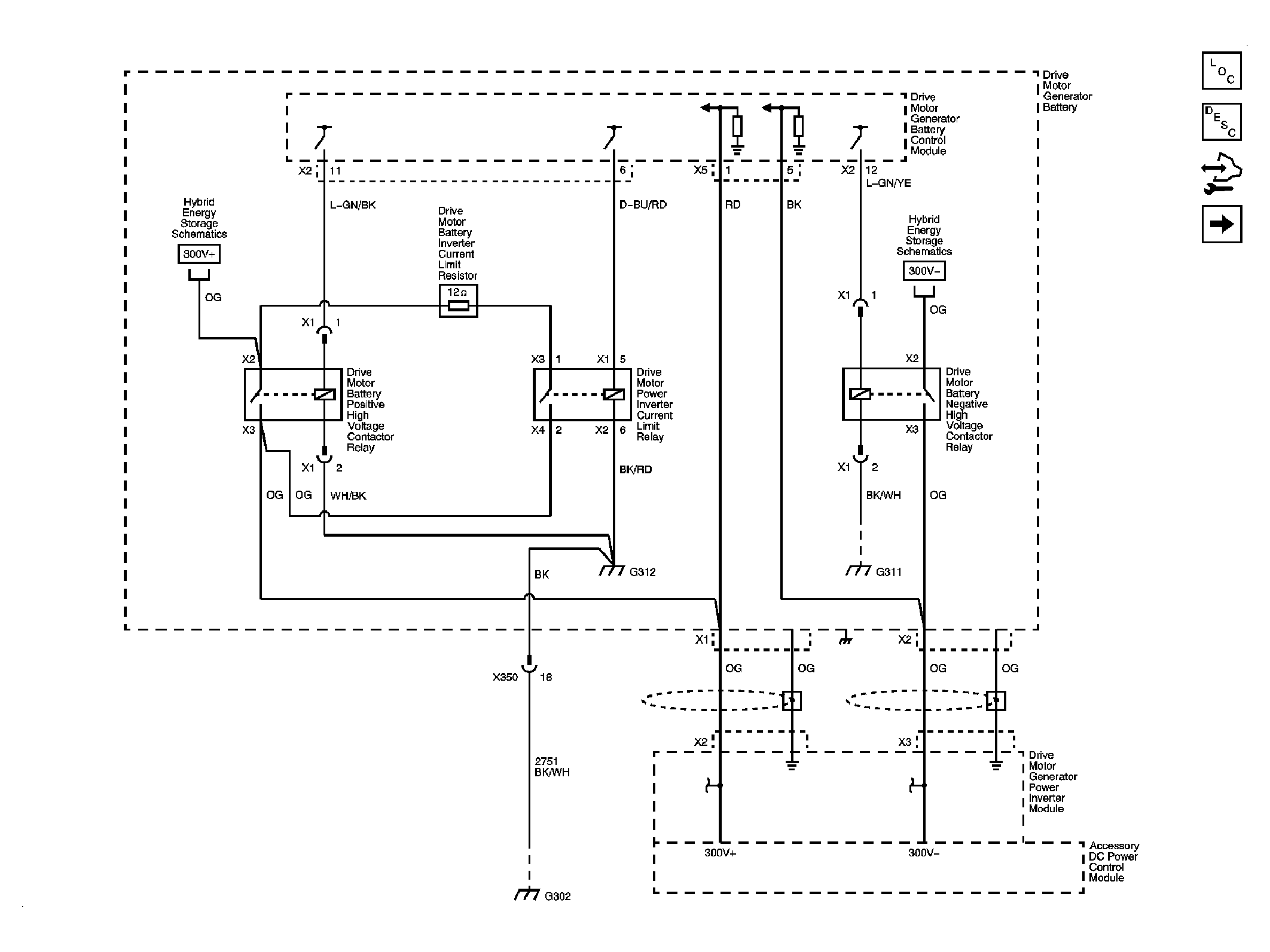

Fig 1: Main Power Contactors

Courtesy of GENERAL MOTORS CORP.

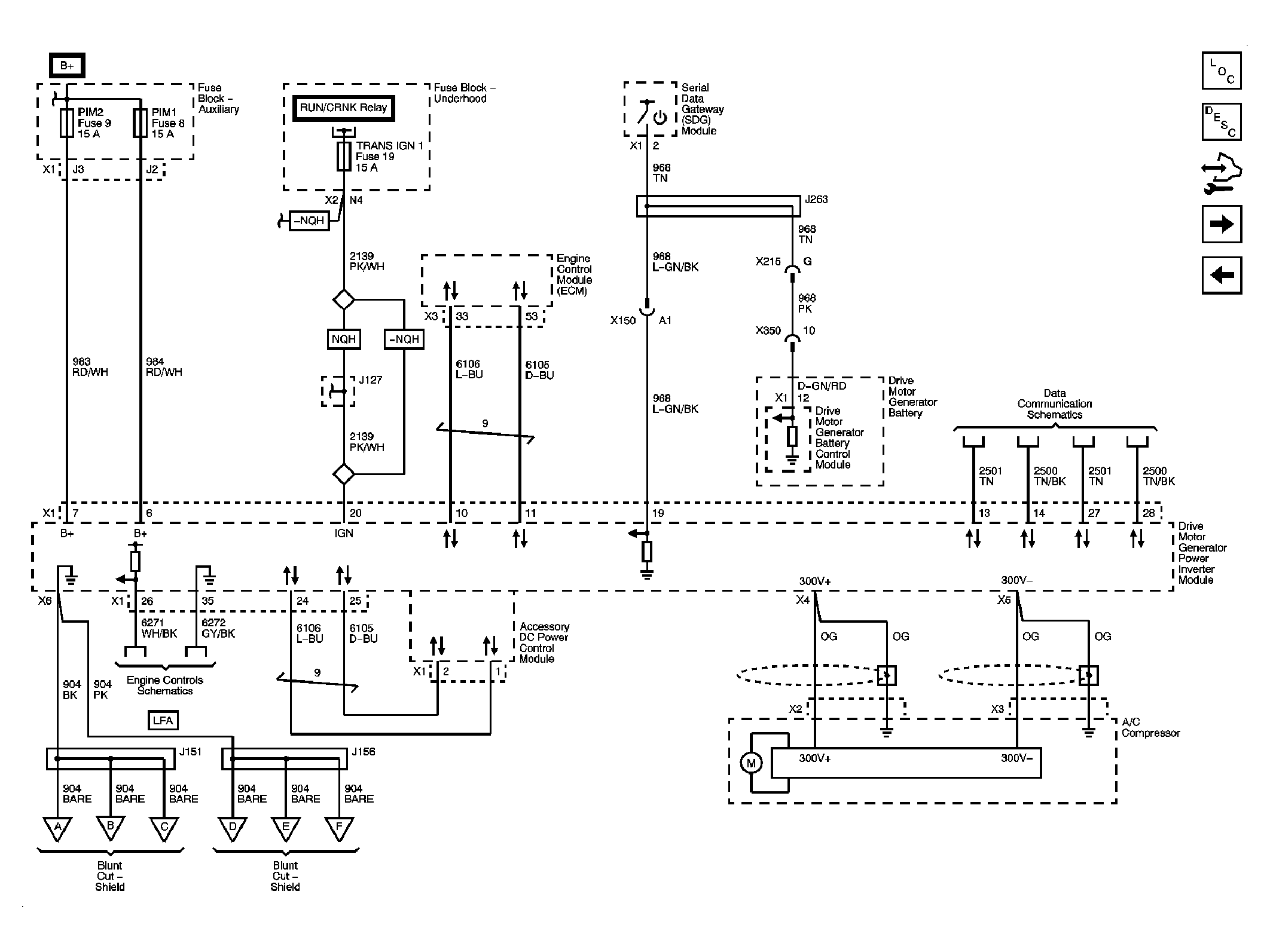

Fig 2: Drive Motor Generator Power Inverter Module Power and Data Communication, High Voltage A/C Compressor Control

Courtesy of GENERAL MOTORS CORP.

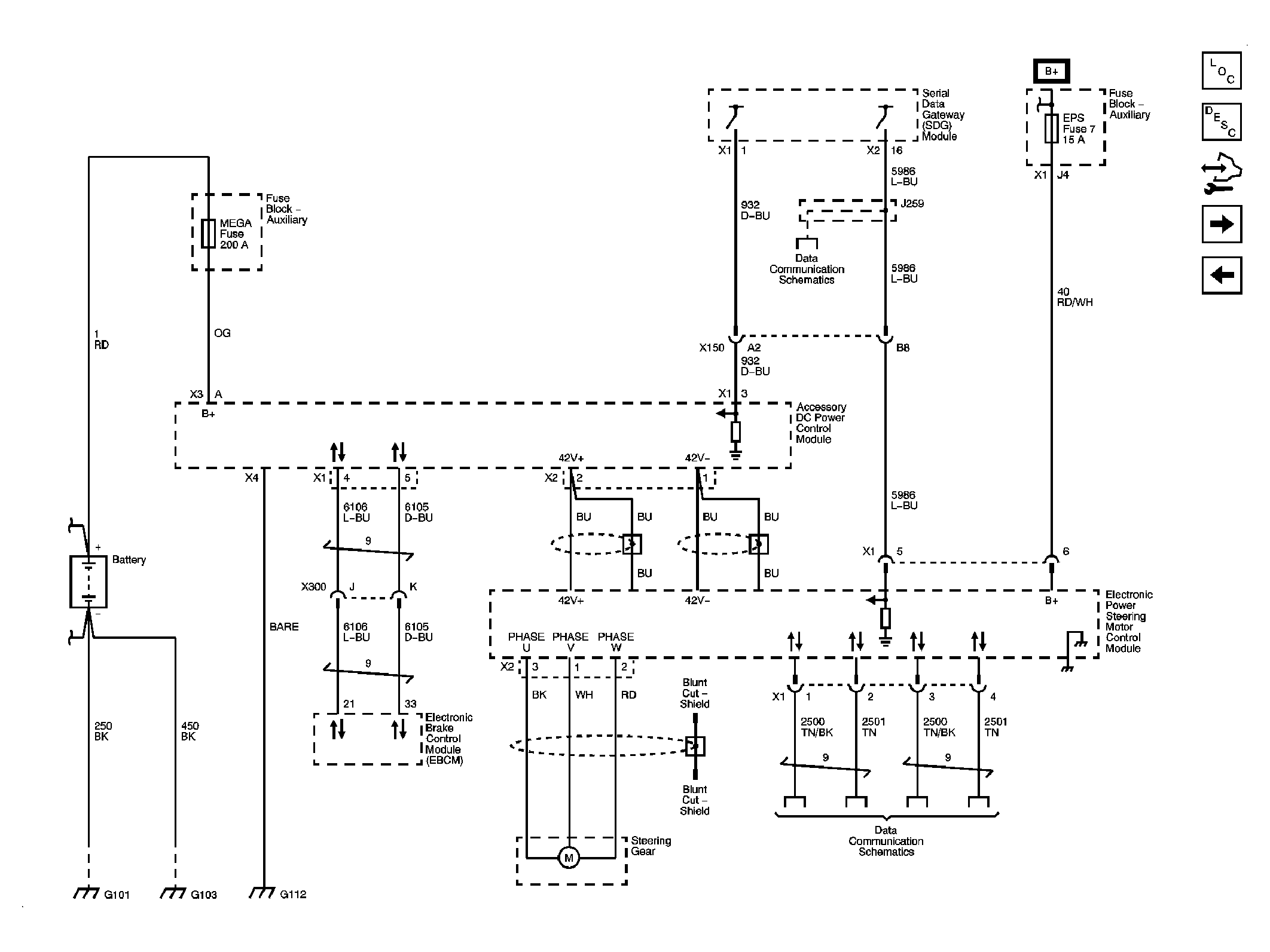

Fig 3: Accessory DC Power Control, Hybrid Power Steering

Courtesy of GENERAL MOTORS CORP.

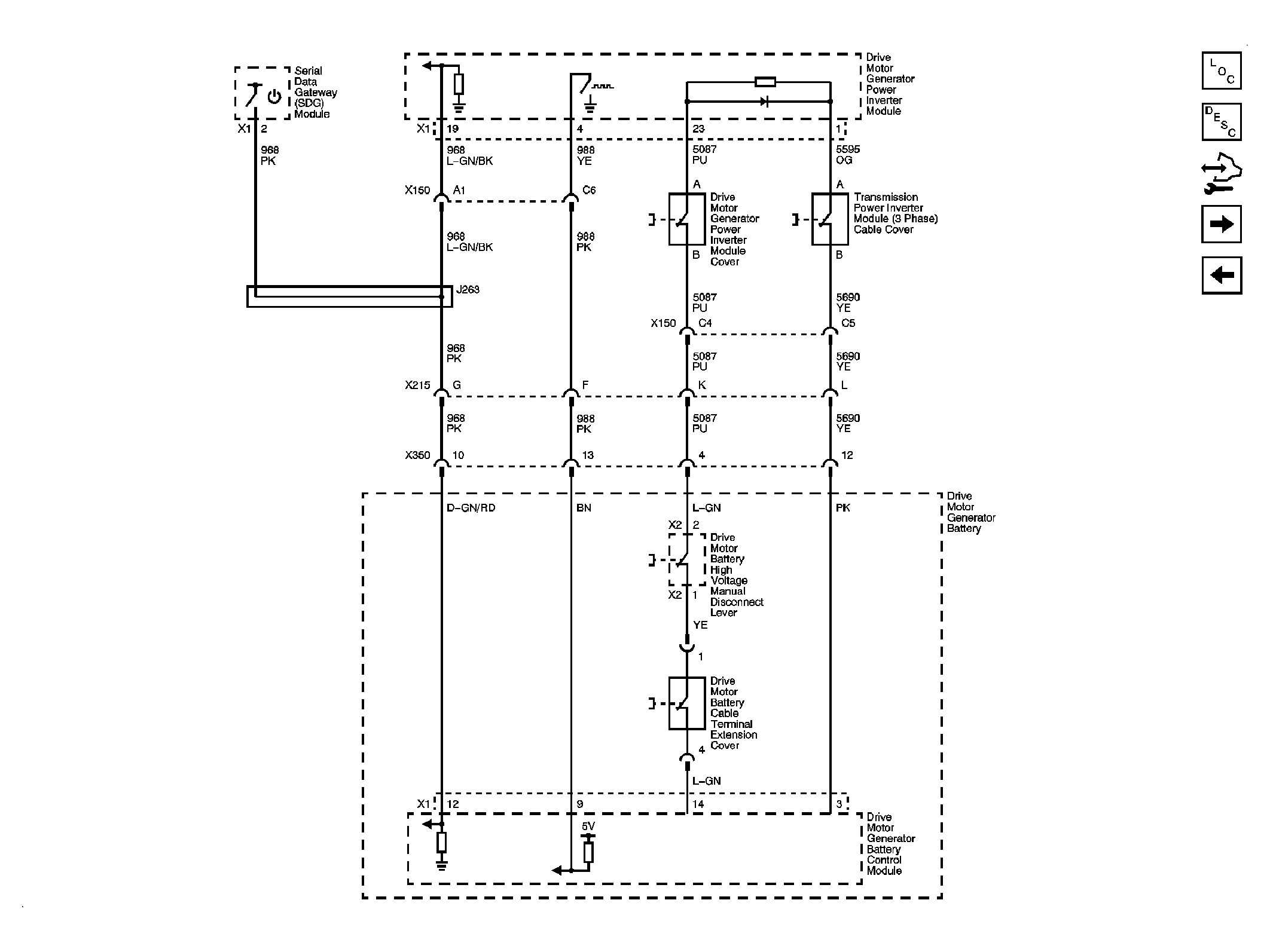

Fig 4: High Voltage Interlock Circuit (HVIC), Contactor Control Circuit

Courtesy of GENERAL MOTORS CORP.

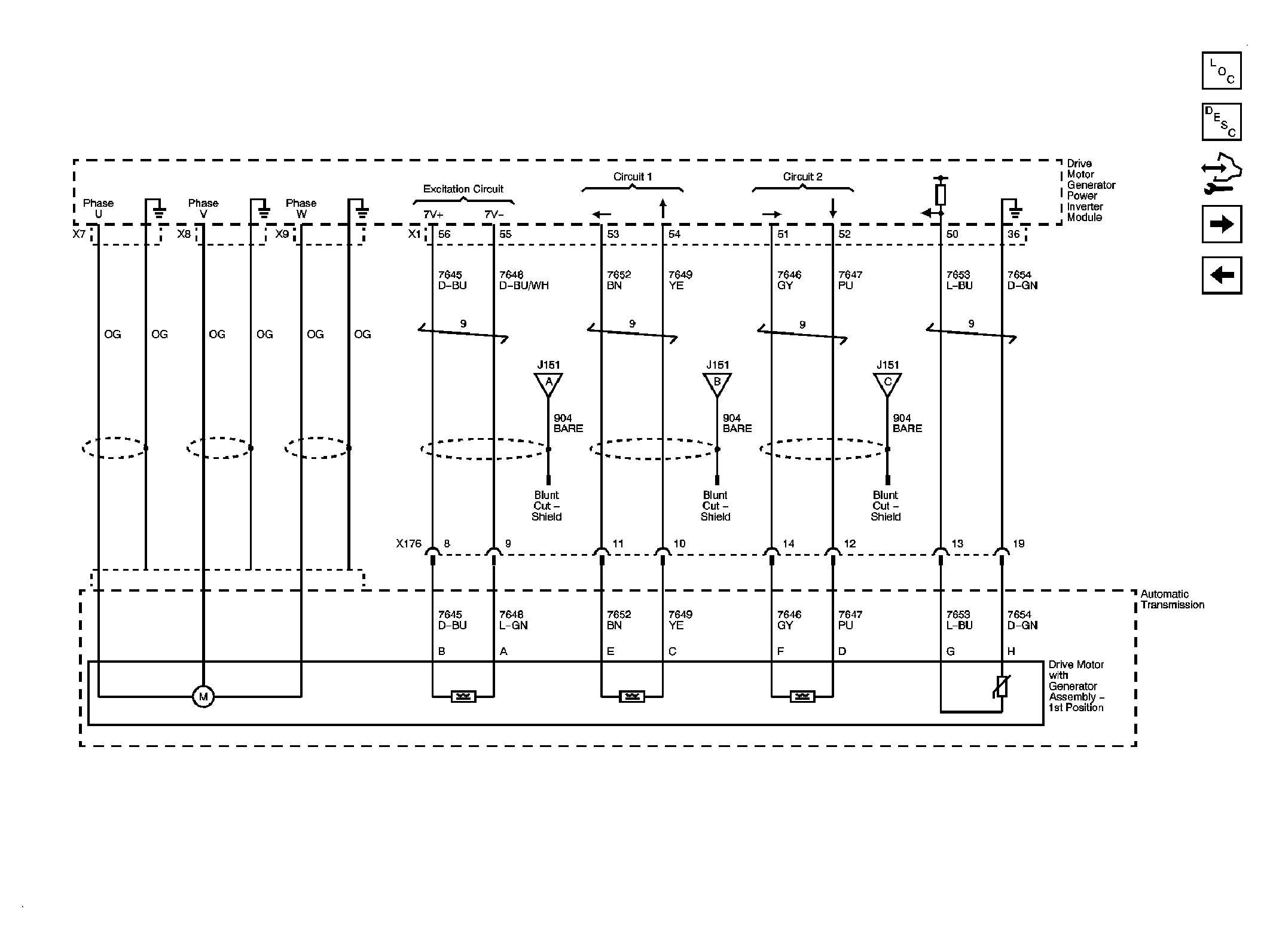

Fig 5: Drive Motor with Generator Assembly - 1st Position

Courtesy of GENERAL MOTORS CORP.

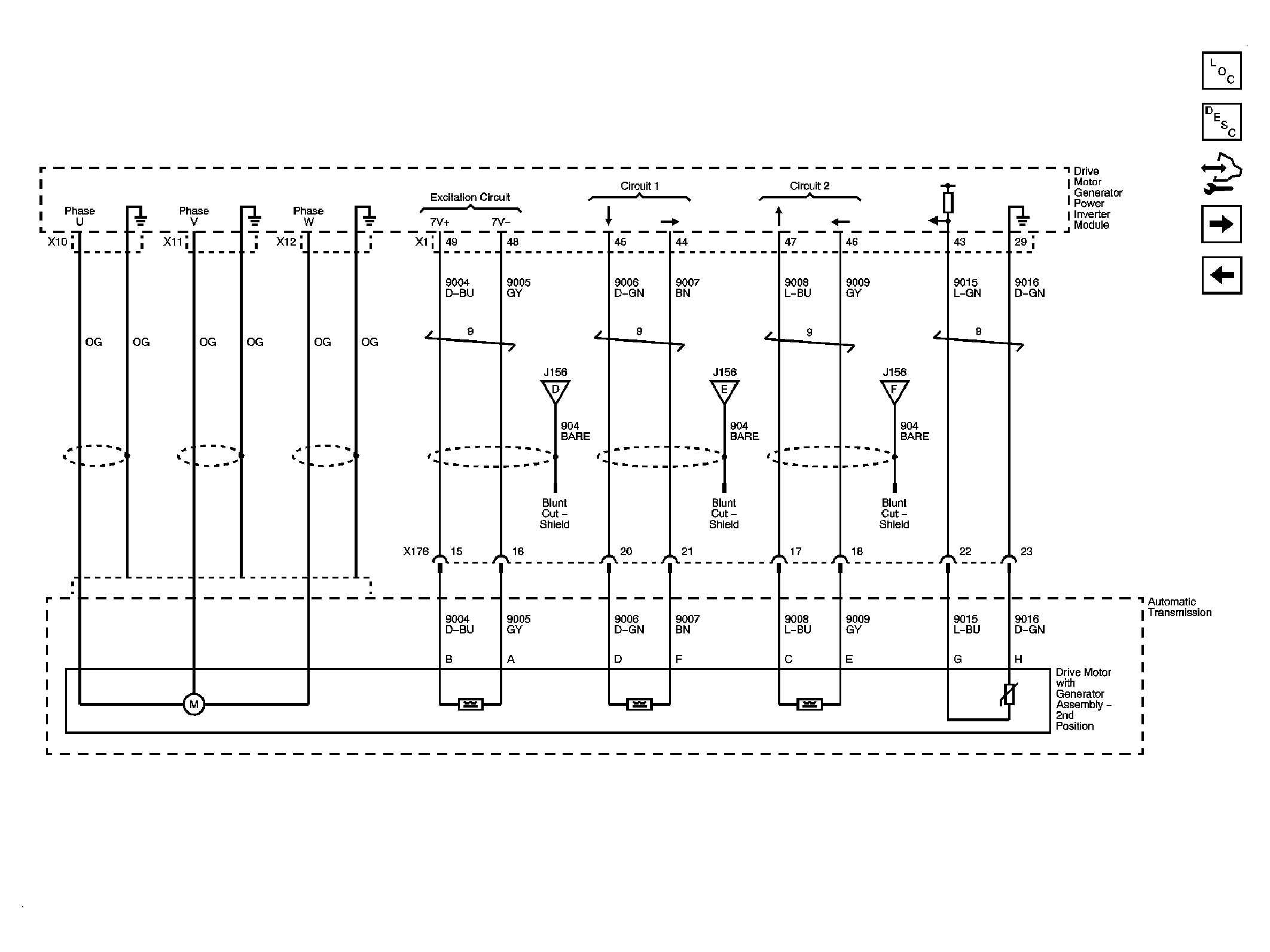

Fig 6: Drive Motor with Generator Assembly - 2nd Position

Courtesy of GENERAL MOTORS CORP.

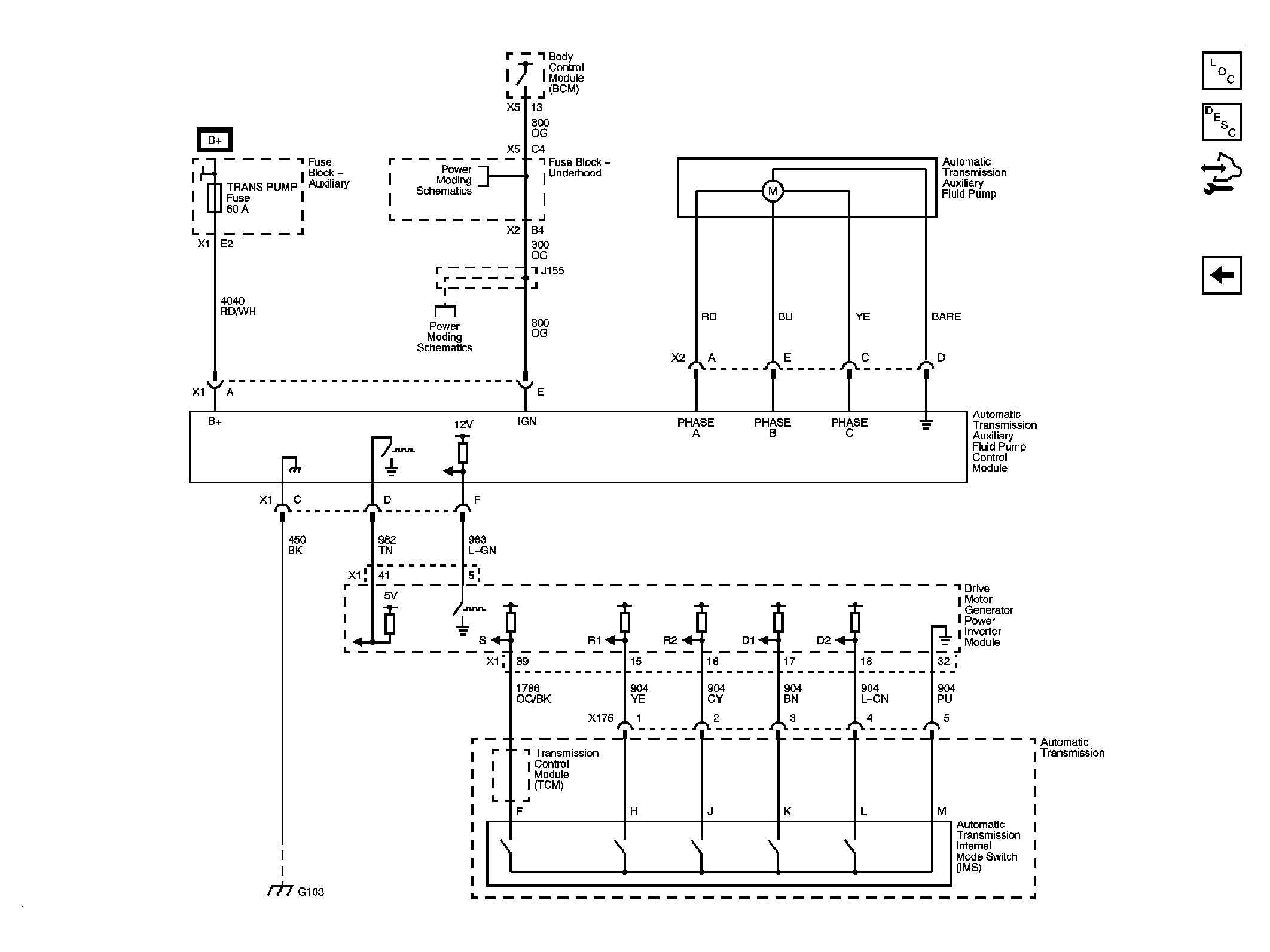

Fig 7: Transmission Pump and Range Signals

Courtesy of GENERAL MOTORS CORP.
