Section 2 (Hybrid Engine Electrical System (Hp2))
>>
Schematic and Routing Diagrams
>>
Starting and Charging Schematics
Starting and Charging Schematics
WARNING:
This page is about a different variant/trim than selected.

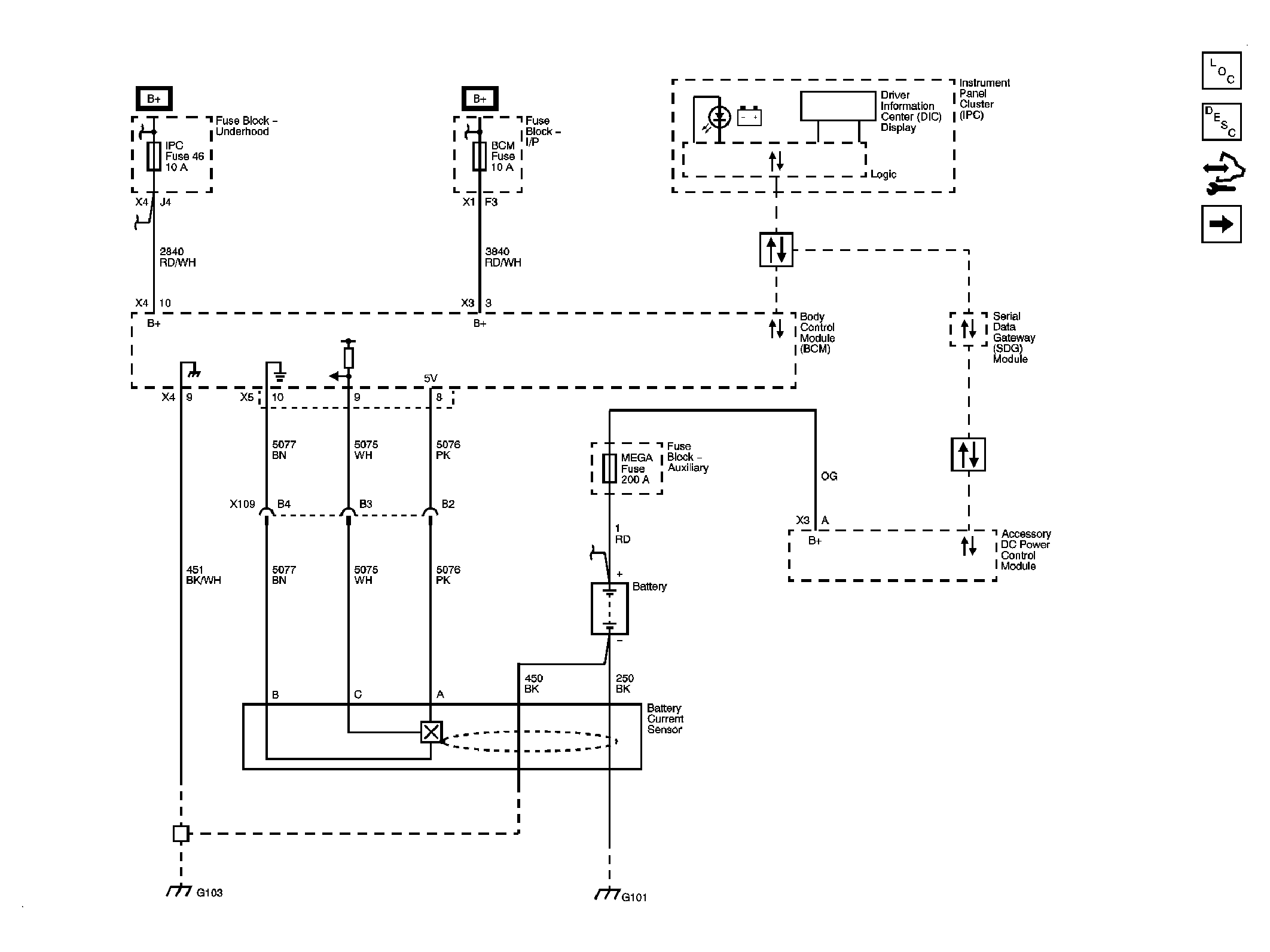

Fig 1: Charging (HP2)
Courtesy of GENERAL MOTORS CORP.
