Hybrid Cooling Schematics

WARNING: This page is about a different variant/trim than selected.
Fig 1: Electronics Cooling
GM2075734Courtesy of GENERAL MOTORS CORP.

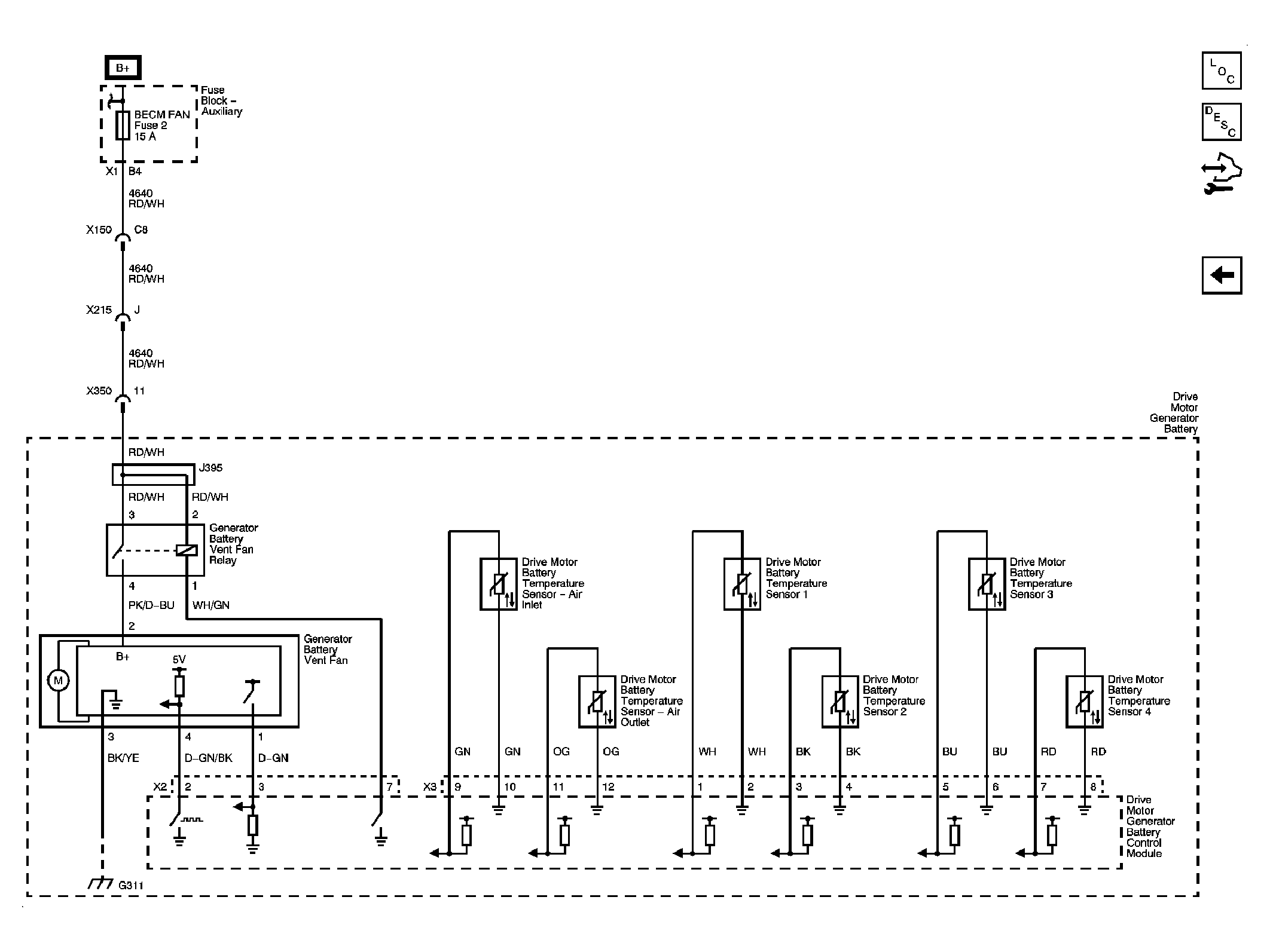

Fig 2: Battery Cooling
GM2075736Courtesy of GENERAL MOTORS CORP.
