Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Yukon and 2009 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying 3-4 Accumulator Piston & Piston Oil Seal Ring
    GM1730059Courtesy of GENERAL MOTORS CORP.
  1. Install a new 3-4 accumulator piston seal (45) to the 3-4 accumulator piston (44).
    2. Fig 2: Locating Transmission Case Components
    GM686979Courtesy of GENERAL MOTORS CORP.
  2. Install the 3-4 accumulator pin (1) into the transmission case and retain the pin with J 36850  . See Special Tools .
    3. Fig 3: Identifying 3-4 Accumulator Piston
    GM647519Courtesy of GENERAL MOTORS CORP.
  3. Install the 3-4 accumulator piston (2) onto the pin (1) in the transmission case.

    Ensure that the 3-4 accumulator piston legs face away from the transmission case.

    4. Fig 4: Locating Transmission Case Components
    GM686979Courtesy of GENERAL MOTORS CORP.
  4. Install the J 25025-B  (2, 3) to the transmission case. See Special Tools .

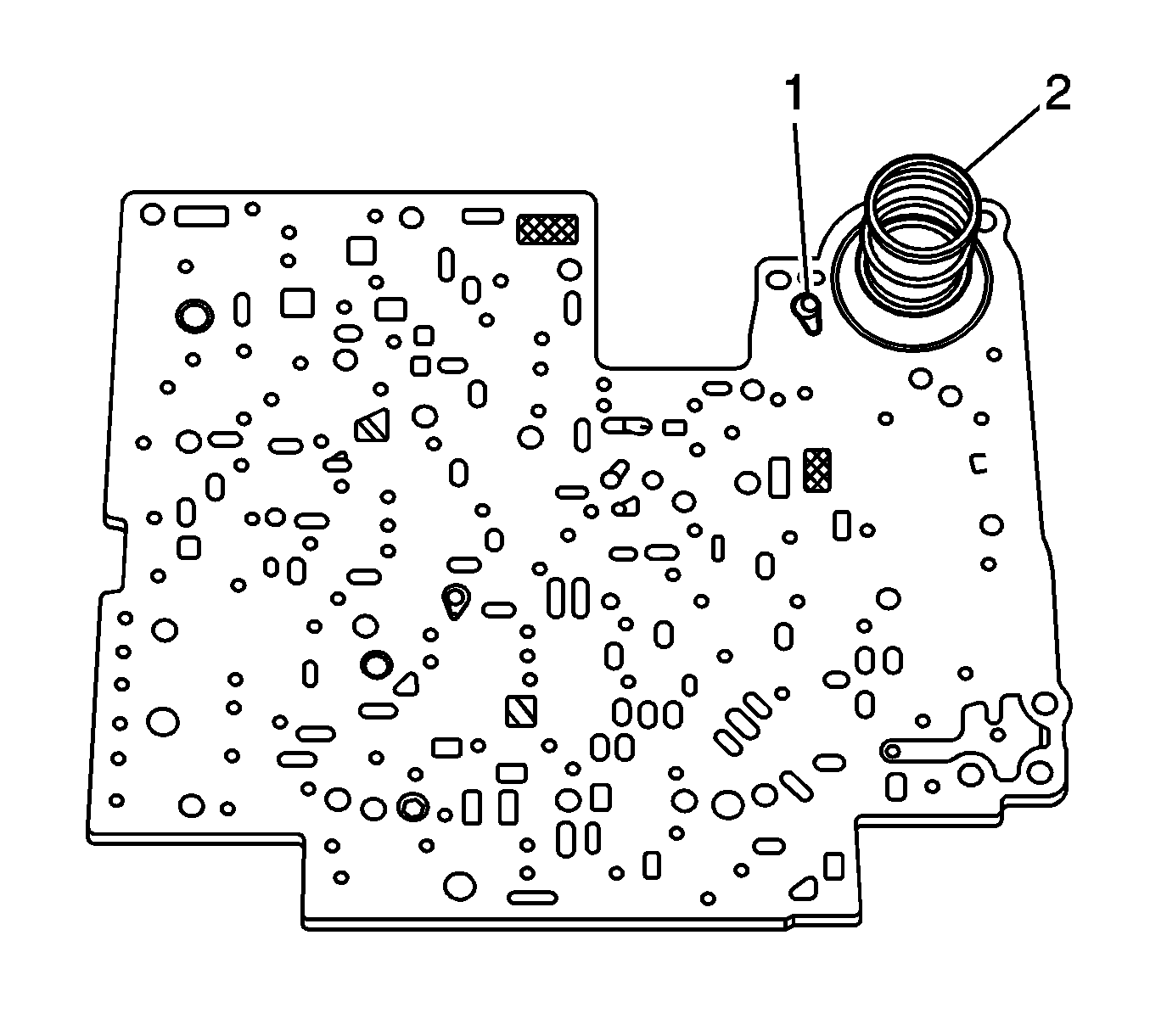

    5. Fig 5: Identifying Checkball & Accumulator Spring
    GM2097326Courtesy of GENERAL MOTORS CORP.
  5. Place the checkball (1) on the spacer plate in the location shown.
  6. Place the 3-4 accumulator spring (2) on the spacer plate.
    7. Fig 6: Identifying Bonded Spacer Plate
    GM2035545Courtesy of GENERAL MOTORS CORP.
  7. Install the J-25025-5:  guide pins into the case.
    8. NOTE: Do not reuse the bonded spacer plate (48). Replace with a NEW bonded spacer plate.
  8. Place the bonded spacer plate on the case.
    9. Fig 7: View Of Spacer Plate Support Plate & Bolts
    GM1283236Courtesy of GENERAL MOTORS CORP.
  9. Install the spacer plate support plate (53 or 113).
  10. Install the spacer plate bolts (77).
    11. CAUTION: Refer to Fastener Caution .
  11. Install the accumulator bolt (115), model dependent and tighten the accumulator bolt to 11 N.m (97 lb in).
    12. Fig 8: View Of Spacer Plate Support And Checkball Location
    GM687023Courtesy of GENERAL MOTORS CORP.
  12. After installing the spacer plate support (2), look through the hole in the spacer plate to ensure that the checkball (1) has remained in the proper location.
  13. Assemble the 1-2 accumulator. Refer to 1-2 Accumulator Assemble .
  14. Install the 1-2 accumulator. Refer to 1-2 Accumulator Installation .
  15. Remove the J 25025-B  from the transmission case. See Special Tools .
  16. Install the control valve body. Refer to Control Valve Body Replacement .
  17. Install the transmission oil pan and filter. Refer to Automatic Transmission Fluid and Filter Replacement .
  18. Lower the vehicle.
  19. Fill the transmission to the proper level with DEXRON® VI transmission fluid. Refer to Transmission Fluid Check .
    20. NOTE: It is recommended that transmission adaptive pressure (TAP) information be reset.
    Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain control module (PCM) or transmission control module (TCM) will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
  20. Reset the TAP values. Refer to Transmission Adaptive Functions (TCM) .
