Transmission Fluid Pan Installation

WARNING: This page is about a different car, the 2009 GMC Yukon and 2009 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

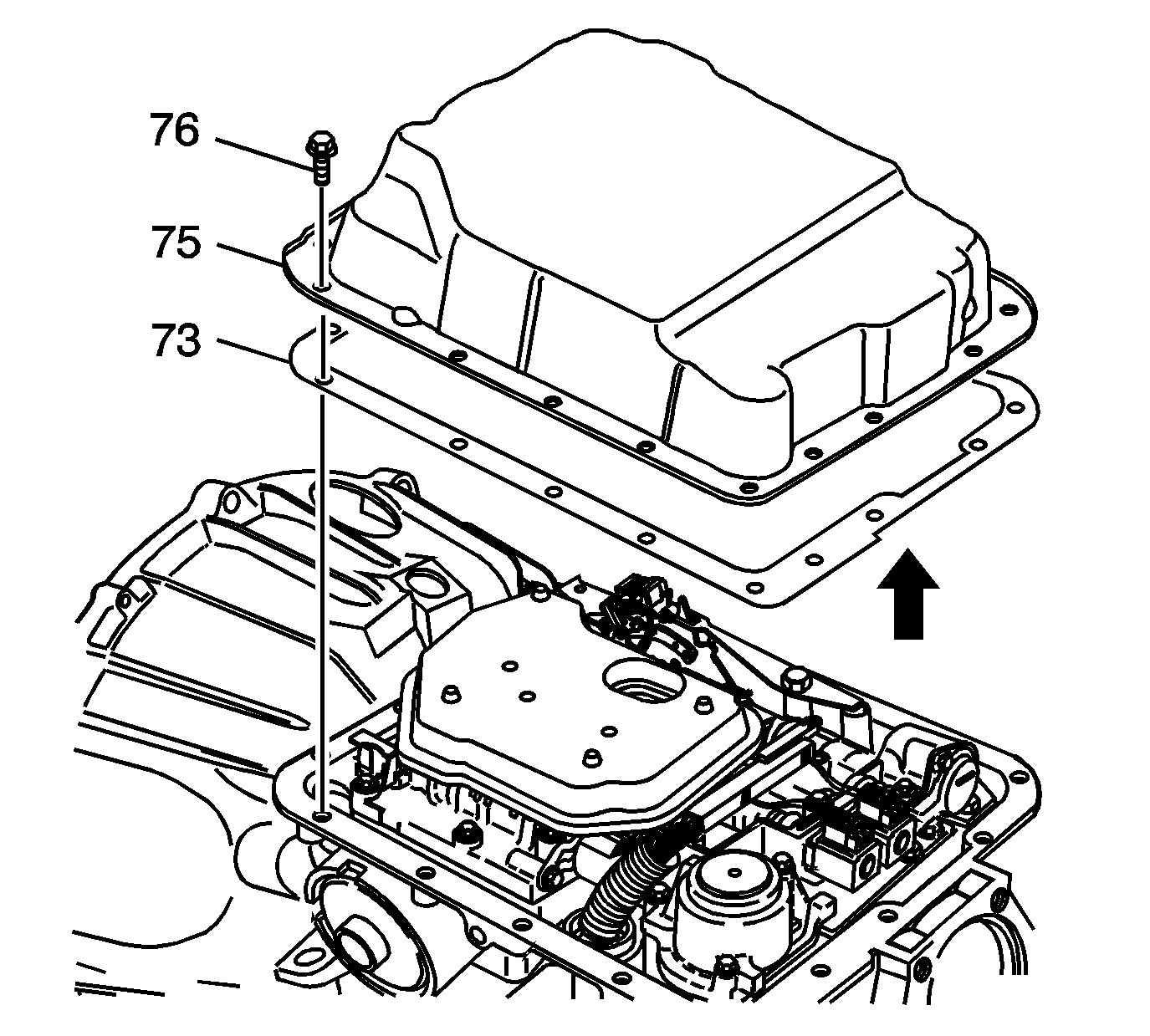

    Fig 1: View Of Fluid Pan, Gasket & Bolts
    GM2035531Courtesy of GENERAL MOTORS CORP.
  1. Place the transmission oil pan gasket (73) on the case.
  2. Place the transmission oil pan (75) on the case.
    3. CAUTION: Refer to Fastener Caution .
  3. Install all of the transmission oil pan screws (76). Tighten the screws to 16 N.m (11.8 lb ft).
