Oil Pump Disassemble

WARNING: This page is about a different car, the 2009 GMC Yukon and 2009 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

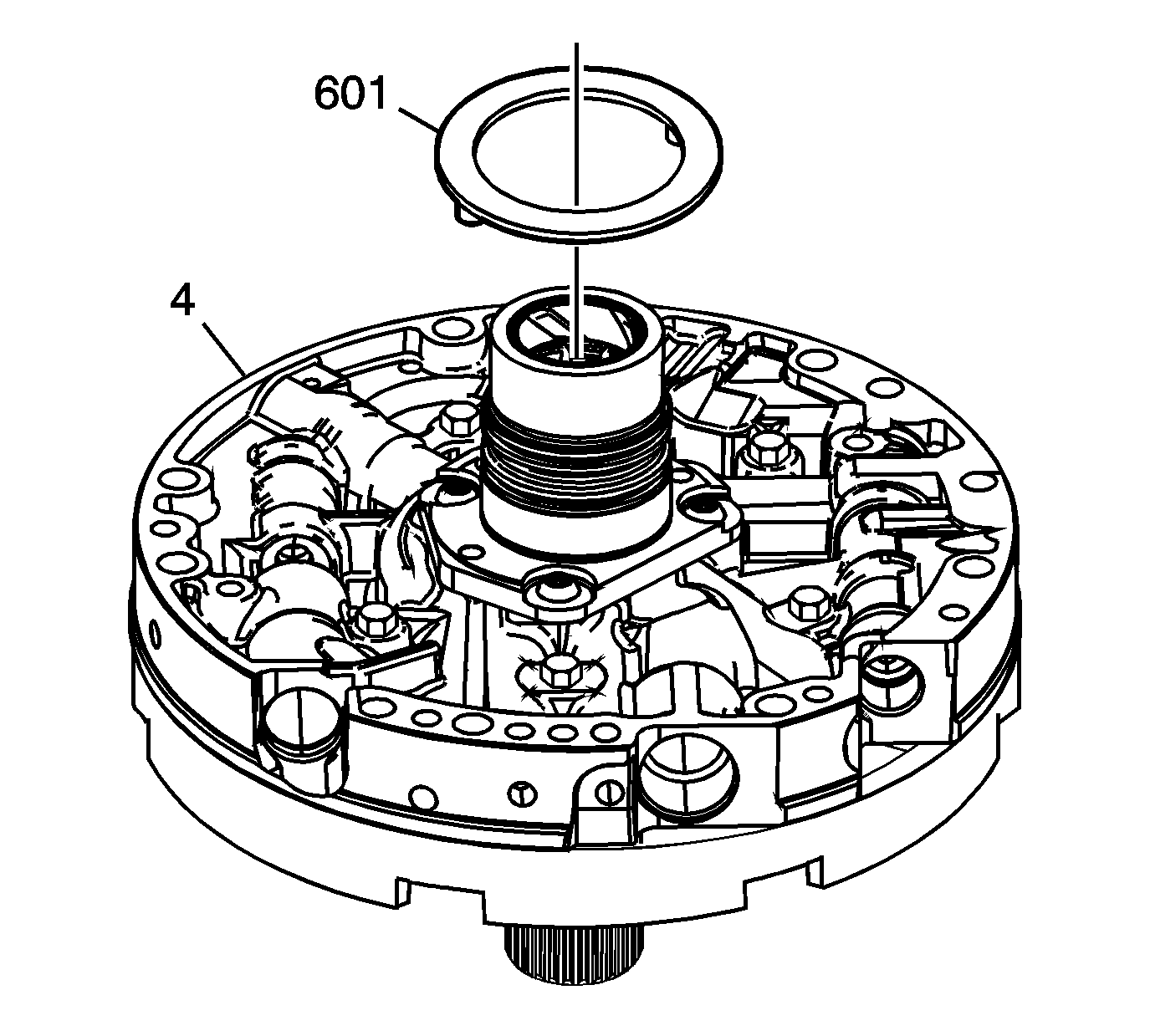

Fig 1: View Of Thrust (Pump To Drum) Washer

Courtesy of GENERAL MOTORS CORP.

Remove the thrust (pump to drum) washer (601).

Fig 2: Identifying Pump Cover Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the pump cover bolts (233).
Remove the pump cover (215) from the pump body (200).
