Converter Housing Removal

WARNING: This page is about a different car, the 2009 GMC Yukon and 2009 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

DT-49037: MorTorq Bit
J 41510: T-50 Plus Bit

For equivalent regional tools, refer to Special Tools .

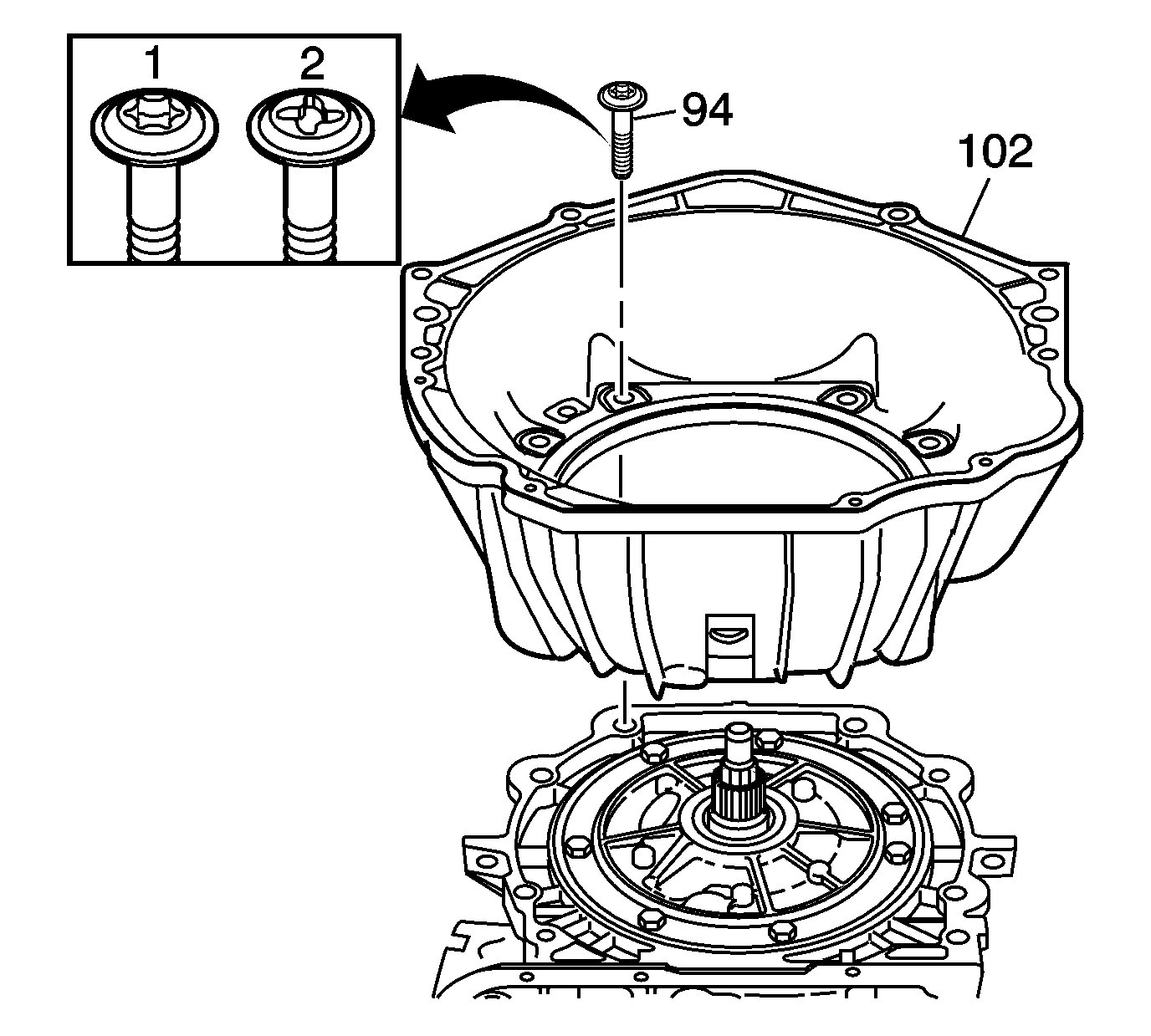

Fig 1: Identifying Bolt Types

Courtesy of GENERAL MOTORS CORP.

Remove the converter housing bolts (94). Use the J 41510: T-50 plus bit for bolt (1) and DT-49037: mortorq bit for bolt (2).
Remove the converter housing (102).
