Converter Housing Installation

WARNING: This page is about a different car, the 2009 GMC Yukon and 2009 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

DT-49037: MorTorq Bit
J 41510: T-50 Plus Bit

For equivalent regional tools, refer to Special Tools .

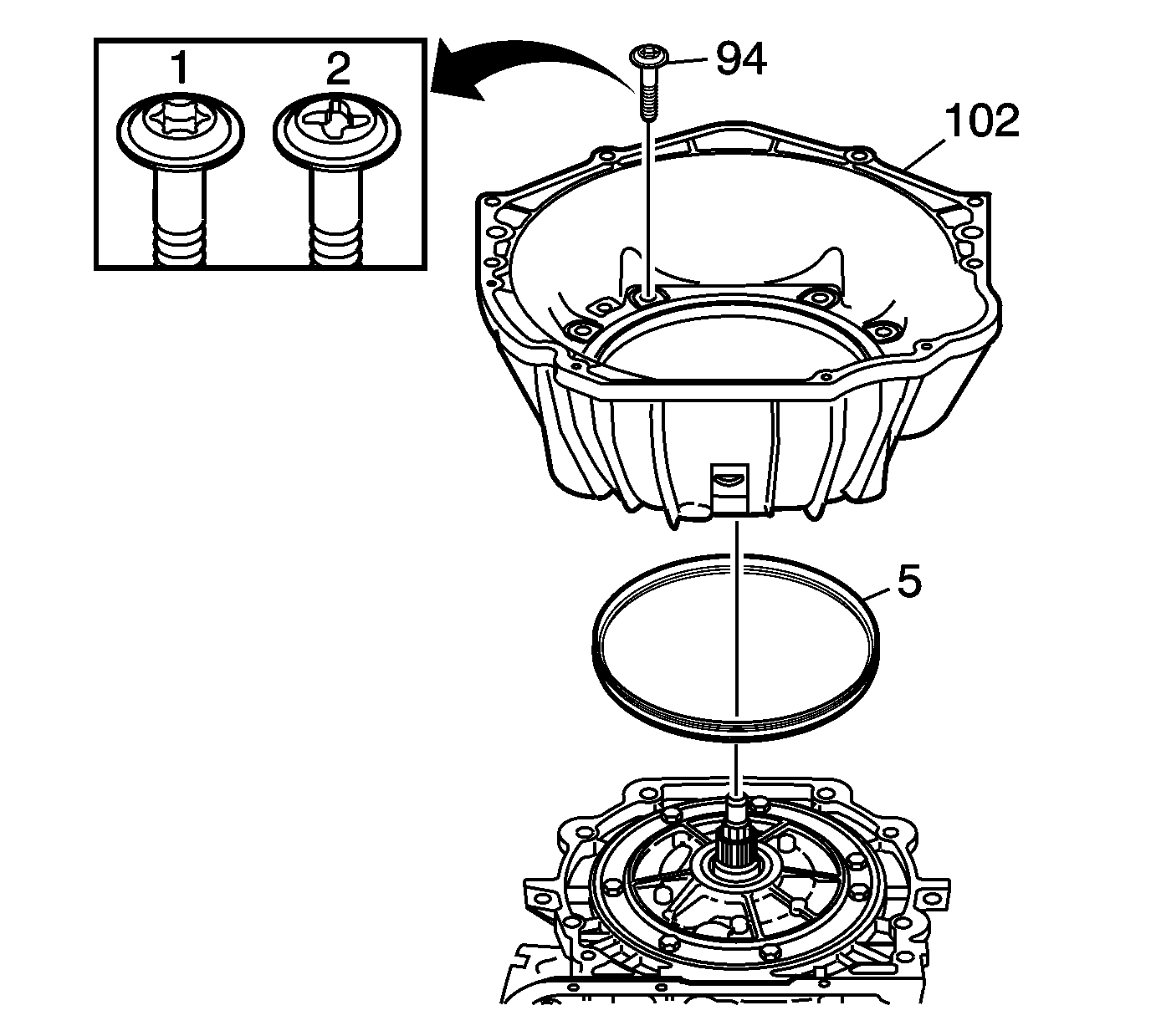

Fig 1: Identifying Bolt Types, Seal & Housing

Courtesy of GENERAL MOTORS CORP.

NOTE:

Ensure the converter housing and case face are clean before installing a new pump seal.
When installing a new oil pump seal (5), the seal will protrude slightly above the case surface. The oil pump seal is a wedge design that will conform to the surfaces between the oil pump body and the transmission case as the converter housing (102) is installed.

Install the oil pump seal (5). Seat oil pump seal (5) by hand, between pump body and case. Ensure the seal is evenly seated.
Install the converter housing (102).

CAUTION: Refer to Fastener Caution .

Using the J 41510: T-50 plus bit for bolt (1) and DT-49037: mortorq bit for bolt (2), install the converter housing bolts (94) to the transmission case.
- Tighten converter housing bolts evenly in a star pattern sequence.
- Tighten the converter housing bolts (94) to 65-75 N.m (48-55 lb ft) .
