WARNING: This page is about a different car, the 2009 GMC Yukon and 2009 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

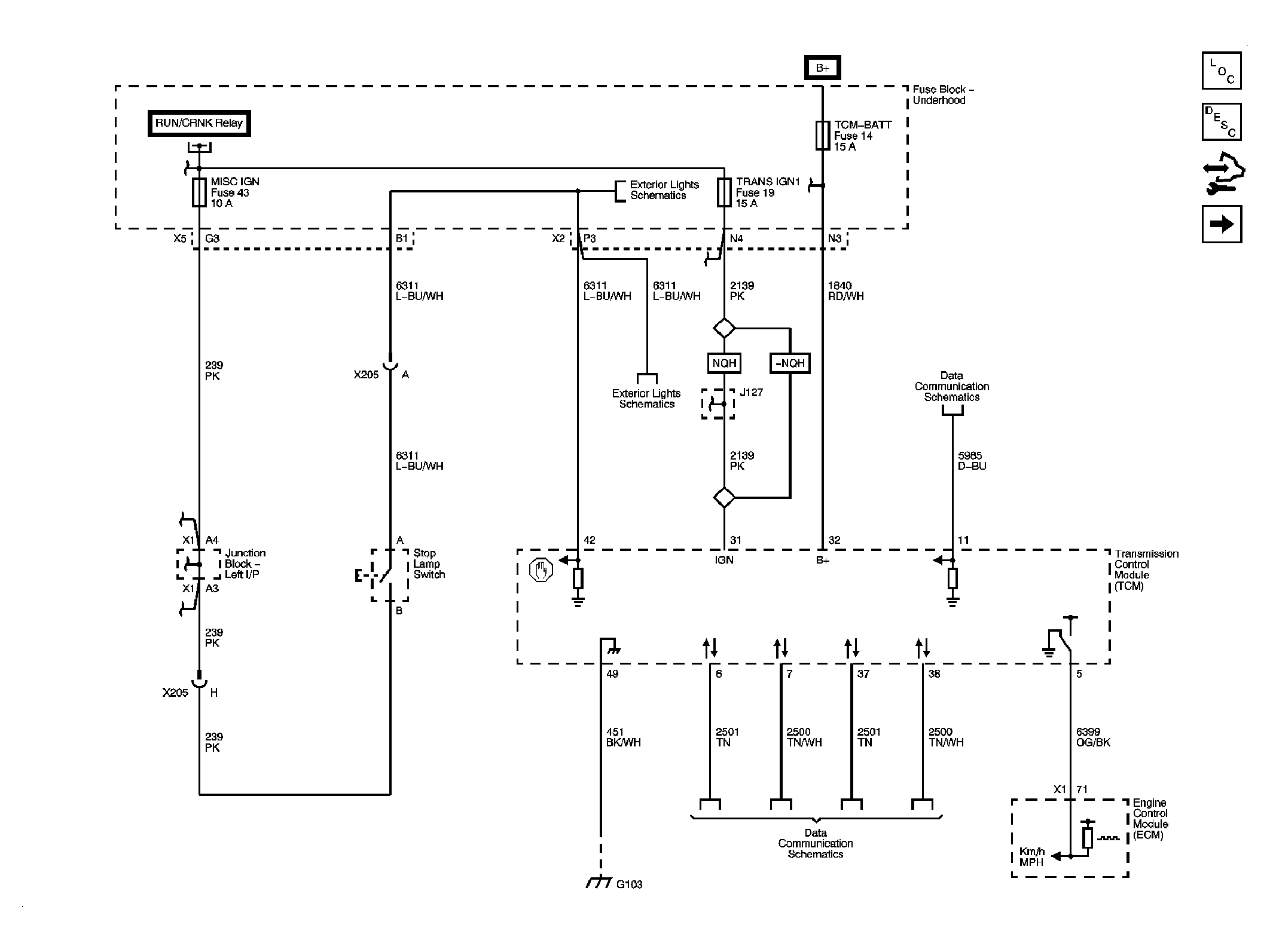

Fig 1: Module Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS CORP.

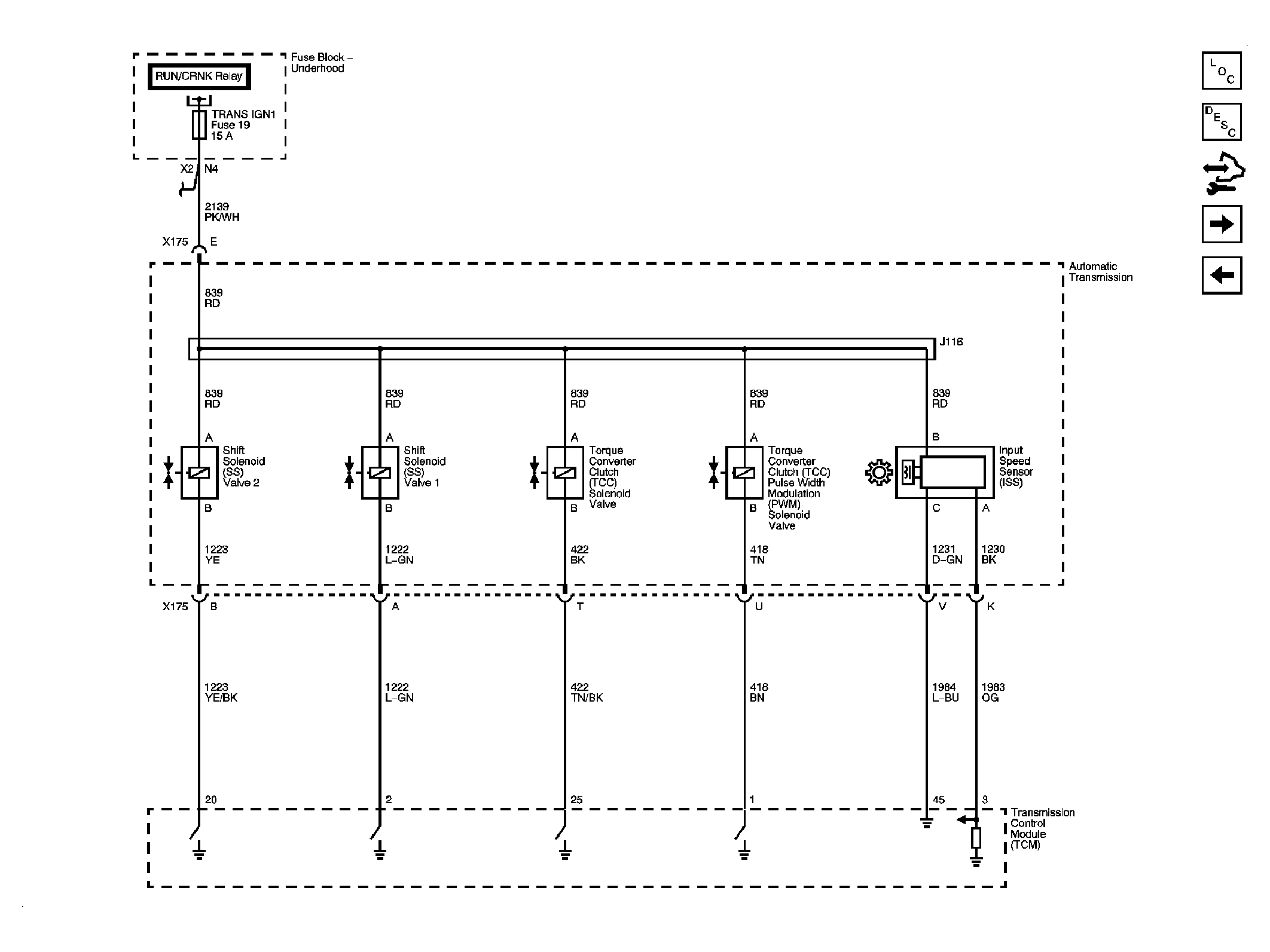

Fig 2: Shift Controls
Courtesy of GENERAL MOTORS CORP.
Fig 3: Pressure and Temperature Controls
Courtesy of GENERAL MOTORS CORP.

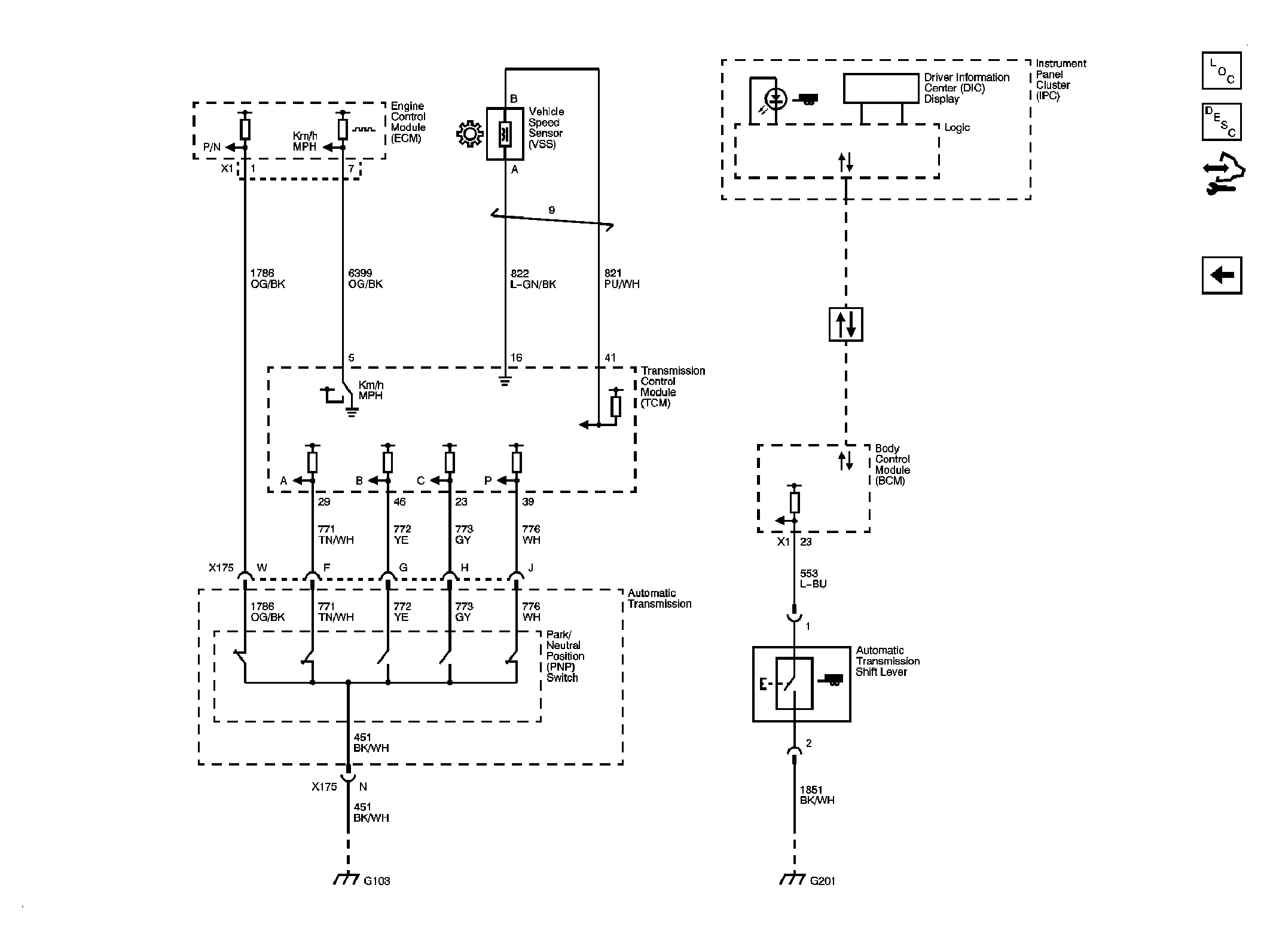

Fig 4: PNP Signals, VSS Signals, and Tow/Haul Signal
