Input Shaft Pilot Bearing Replacement (Heavy Duty and Super Heavy Duty)

WARNING: This page is about a different car, the 2009 GMC Yukon, 2009 Chevrolet Tahoe, 2009 Chevrolet Suburban, and 2009 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

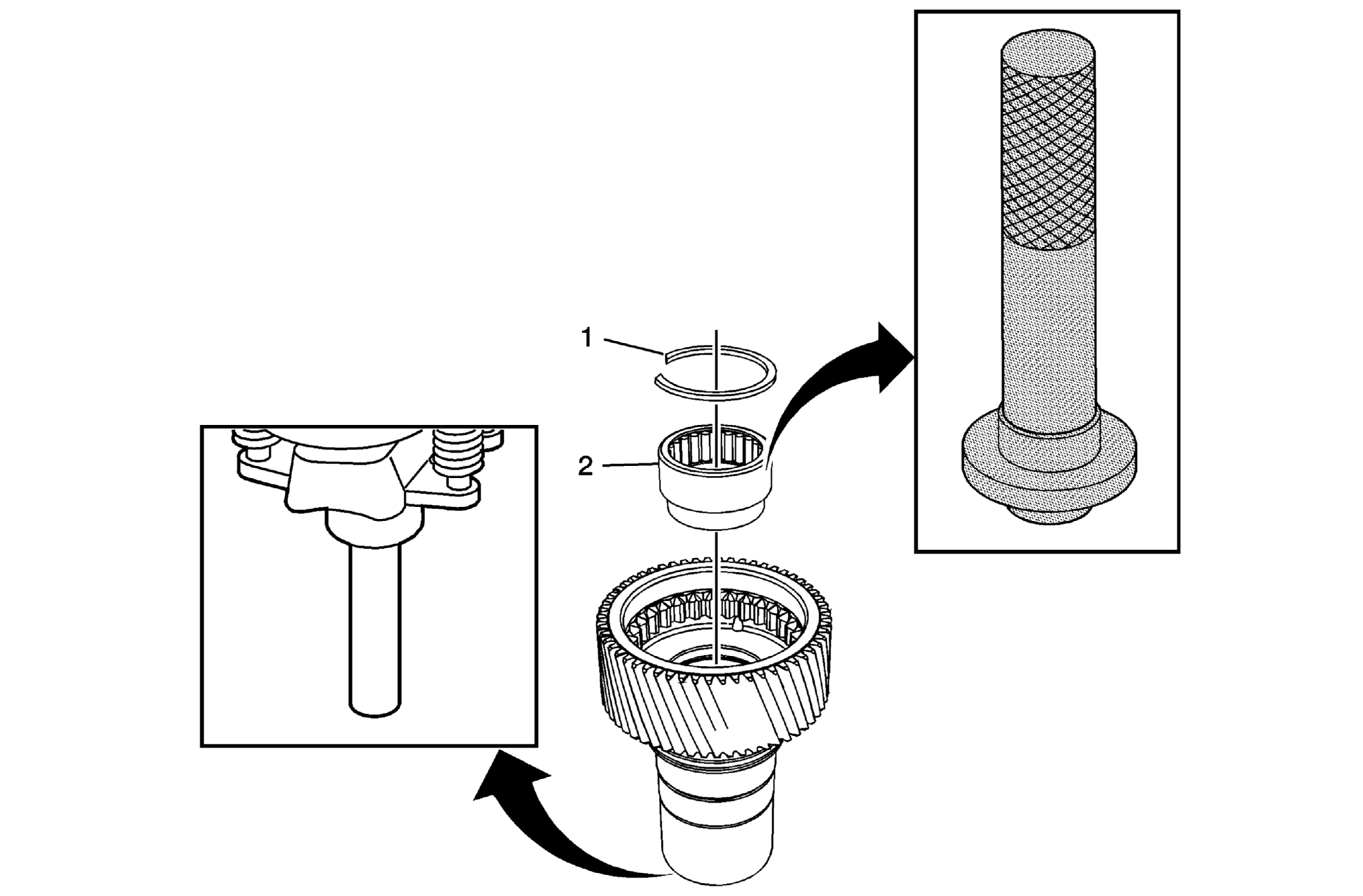

Fig 1: View Of Input Shaft Pilot Bearing, Retaining Ring & Special Tool

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Ensure the bearing is installed squarely into the input shaft bore.
1	Transfer Case Input Shaft Pilot Bearing Retaining Ring Tip: The pilot bearing retaining ring must be removed and installed before and after the pilot bearing is replaced.
2	Transfer Case Input Shaft Pilot Bearing Tip: Using a suitable adapter and an arbor press, remove the input shaft pilot bearing by going through the front of the input shaft. Install the bearing using the large side of the DT-48212: bearing installer. Press the bearing until the tool bottoms on the input shaft. Special Tools DT-48212: Input Shaft Pilot Bearing Installer J 8092: Universal Driver For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure:
Ensure the bearing is installed squarely into the input shaft bore.

Transfer Case Input Shaft Pilot Bearing Retaining Ring
Tip: The pilot bearing retaining ring must be removed and installed before and after the pilot bearing is replaced.

Transfer Case Input Shaft Pilot Bearing
Tip:

Using a suitable adapter and an arbor press, remove the input shaft pilot bearing by going through the front of the input shaft.
Install the bearing using the large side of the DT-48212: bearing installer.
Press the bearing until the tool bottoms on the input shaft.

Special Tools

DT-48212: Input Shaft Pilot Bearing Installer
J 8092: Universal Driver

For equivalent regional tools, refer to Special Tools .
