Output Speed Sensor (OSS) (M99)

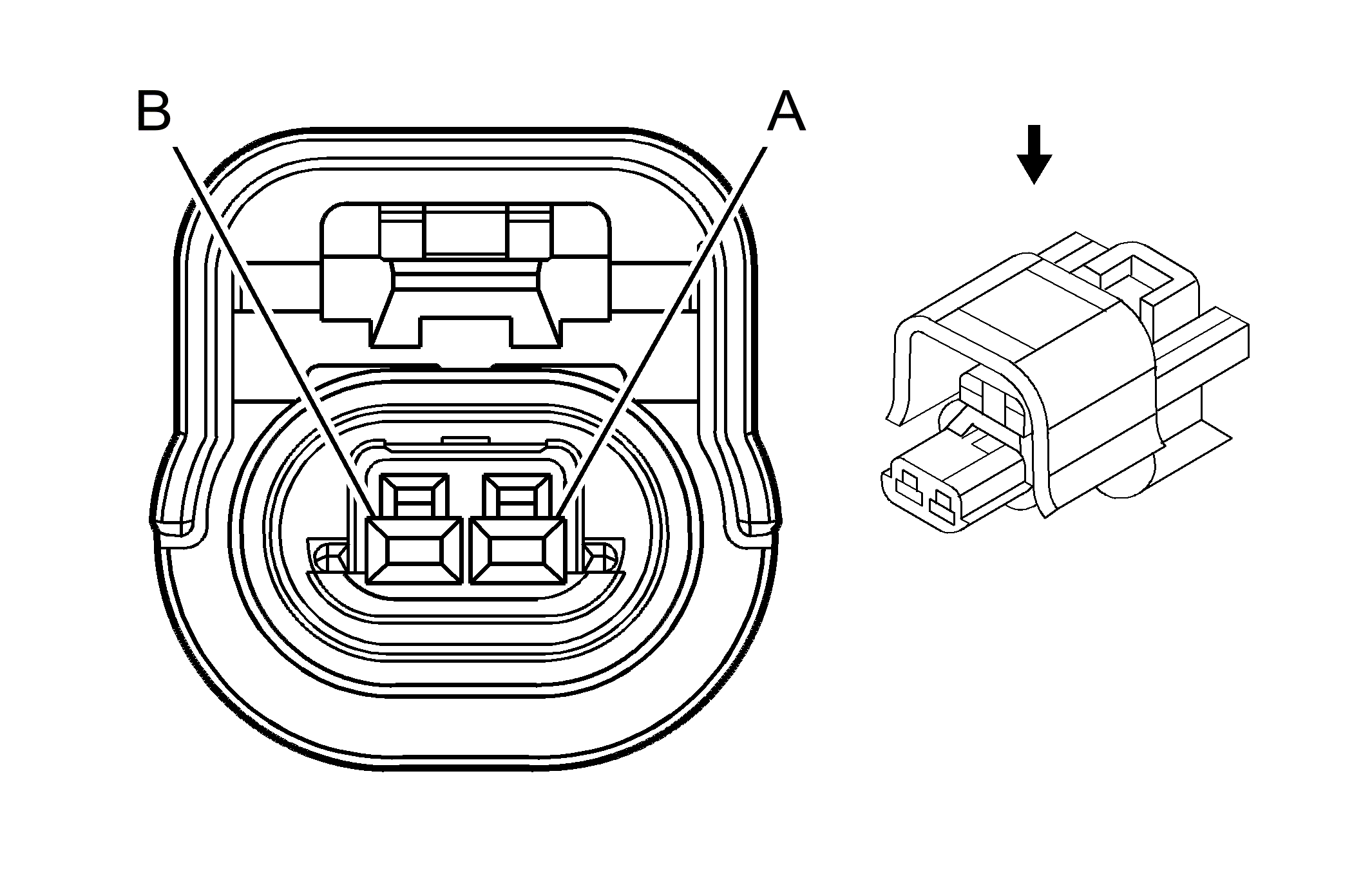

Fig 1: Output Speed Sensor (OSS) (M99) Connector End View
GM1710949Courtesy of GENERAL MOTORS CORP.
Output Speed Sensor (OSS) (M99)

Pin Wire Circuit Function
A 0.5 OG/WH 812 Vehicle Speed Sensor (VSS) Low Signal
B 0.5 PU/WH 821 Vehicle Speed Sensor (VSS) High Signal
Connector Part Information
  • OEM: 15336024
  • Service: 15336024
  • Description: 2-Way F GT 150 Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15326267/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
